HEADLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

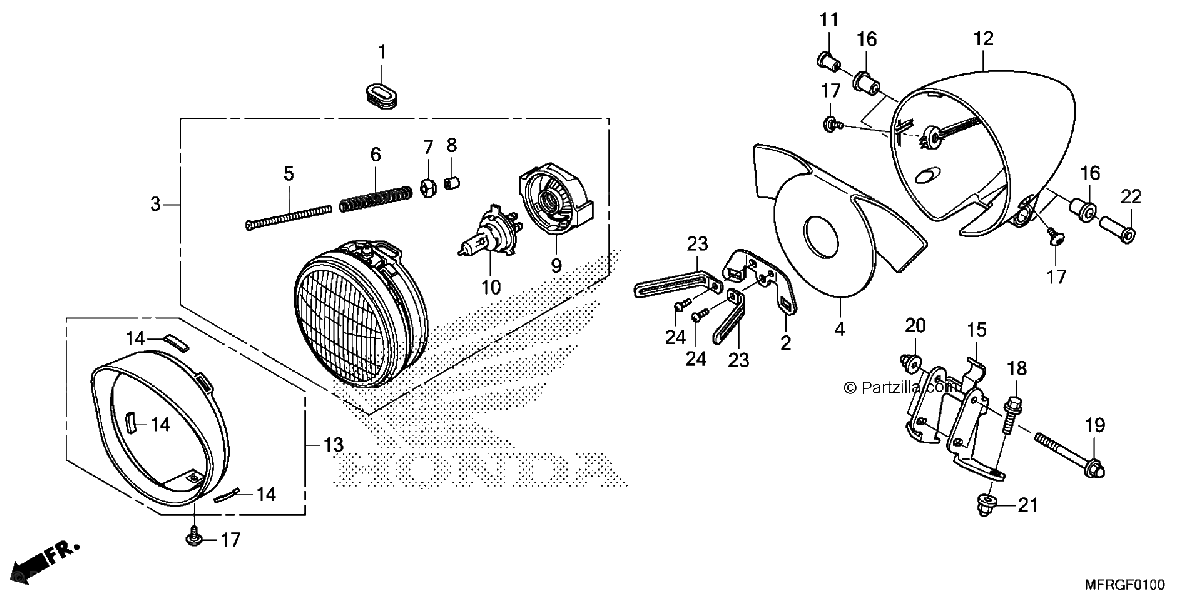

Diagrama de HEADLIGHT

Repuestos

#1
17247-240-000
GROMMET A, AIR CLEANER HOUSING
$3.36¢1 679
1
#2
32111-MFR-670
CLAMP, HARNESS
$5.24¢2 622
1
#3
33100-MFR-305
HEADLIGHT ASSY. (12V 60/55W) (COO) (STANLEY)
$346.89¢173 443
1
#4
33101-MFR-670
SHEET, HEADLIGHT RUBBER
$27.22¢13 610
1
#5
33103-MM2-003
SCREW, BEAM ADJUSTING
$3.24¢1 621
1
#6
33108-MM2-003
SPRING, BEAM ADJUSTING
$3.86¢1 932
1
#7
33118-438-841
NUT, BEAM ADJUSTING
$2.64¢1 322
1
#8
33136-426-830
COVER, SCREW
$2.22¢1 110
1
#9
33180-MR7-003
COVER, RUBBER
$15.20¢7 602
1
#10
34901-MC7-602
BULB, HEADLIGHT (12V 60/55W) (STANLEY)
$39.72¢19 861
1
#11
52157-GC5-000
COLLAR, CHAIN GUARD
$4.99¢2 496
1
#12
61301-MFR-670
CASE ASSY., HEADLIGHT
$195.17¢97 583
1
#13
61302-MFR-670
RIM, HEADLIGHT
$43.49¢21 746
1
#14
61303-MFR-670
RUBBER, HEADLIGHT
$2.59¢1 294
1
#15
61311-MFR-A00
STAY, HEADLIGHT
$39.80¢19 901
1
#16
61315-MK7-000
RUBBER, HEADLIGHT MOUNTING
$3.36¢1 679
1
#17
90106-MBY-000
SCREW, SPECIAL (5X12)
$3.16¢1 581
1
#18
90123-KR3-000
BOLT, SPECIAL FLANGE (8X23)
$4.08¢2 041
1
#19
90132-MFR-670
BOLT, CAP (6MM)
$5.98¢2 990
1
#20
90201-425-700
NUT, CAP (6MM)
$4.71¢2 357
1
#21
90208-438-000
NUT, CAP (8MM)
$3.36¢1 679
1
#22
90501-MCF-000
COLLAR A
$5.78¢2 892
1
#23
91411-679-000
CLIP
$19.19¢9 597
1
#24
93500-05010-0A
SCREW, PAN (5X10)
$1.07¢535
1
