FRONT COVER TRANSMISSION COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

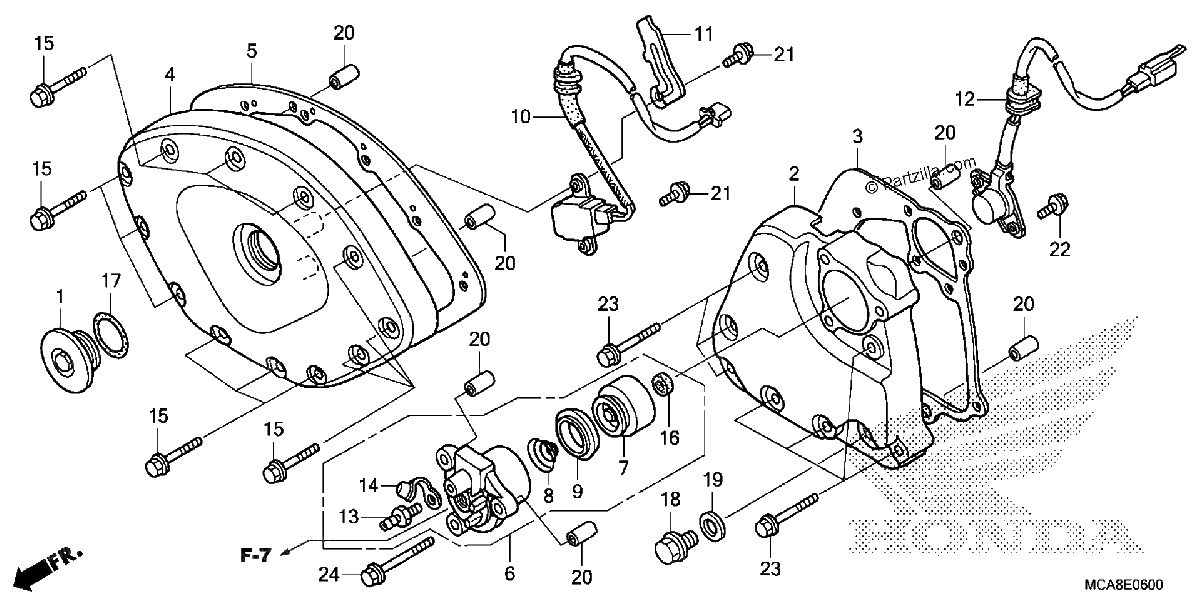

Diagrama de FRONT COVER TRANSMISSION COVER

Repuestos

#1
11332-MER-D00
CAP (45MM)
$18.71¢9 355
1
#2
11361-MCA-S40
COVER, TRANSMISSION
$164.51¢82 254
1
#3
11391-MCA-010
GASKET, TRANSMISSION COVER
$10.40¢5 198
1
#4
11511-MJG-670
COVER, FR.
$353.60¢176 801
1
#5
11524-MCA-010
GASKET, FR. COVER
$16.18¢8 090
1
#6
22860-MCA-000
CYLINDER ASSY., CLUTCH SLAVE
$156.72¢78 361
1
#7
22863-MJ8-003
PISTON, SLAVE CYLINDER
$28.46¢14 231
1
#8
22864-MB0-003
SPRING, SLAVE CYLINDER
$6.97¢3 484
1
#9
22865-MJ8-003
CUP, SLAVE CYLINDER
$12.28¢6 141
1
#10
30300-MCA-003
GENERATOR ASSY., PULSE
$76.57¢38 284
1
#11
32906-MCA-A00
CLIP, PULSER WIRE
$5.86¢2 932
1
#12
35759-MCA-003
SWITCH ASSY., CHANGE
$103.05¢51 526
1
#13
43352-MBB-006
SCREW, BLEEDER
$5.26¢2 628
1
#14
43353-461-771
CAP, BLEEDER
$5.63¢2 818
1
#15
90007-GHB-680
BOLT, FLANGE (6X28) (NSHF)
$2.17¢1 087
1
#16
91209-MB0-003
OIL SEAL (8X18X5)
$4.52¢2 260
1
#17
91301-ML7-003
O-RING (48.1X3.6) (ARAI)
$4.38¢2 191
1
#18
92800-14000
BOLT, DRAIN PLUG (14MM)
$3.98¢1 989
1
#19
94109-14000
WASHER, DRAIN PLUG (14MM)
$0.74¢368
1
#20
94301-08140
PIN, DOWEL (8X14)
$2.66¢1 328
1
#21
95701-06014-00
BOLT, FLANGE (6X14)
$1.13¢564
1
#22
95701-06016-00
BOLT, FLANGE (6X16)
$1.92¢960
1
#23
95701-06035-00
BOLT, FLANGE (6X35)
$2.22¢1 110
1
#24
95701-06045-00
BOLT, FLANGE (6X45)
$2.56¢1 282
1
#24
95701-06045-07
BOLT, FLANGE (6X45)
$2.56¢1 282
1
