MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

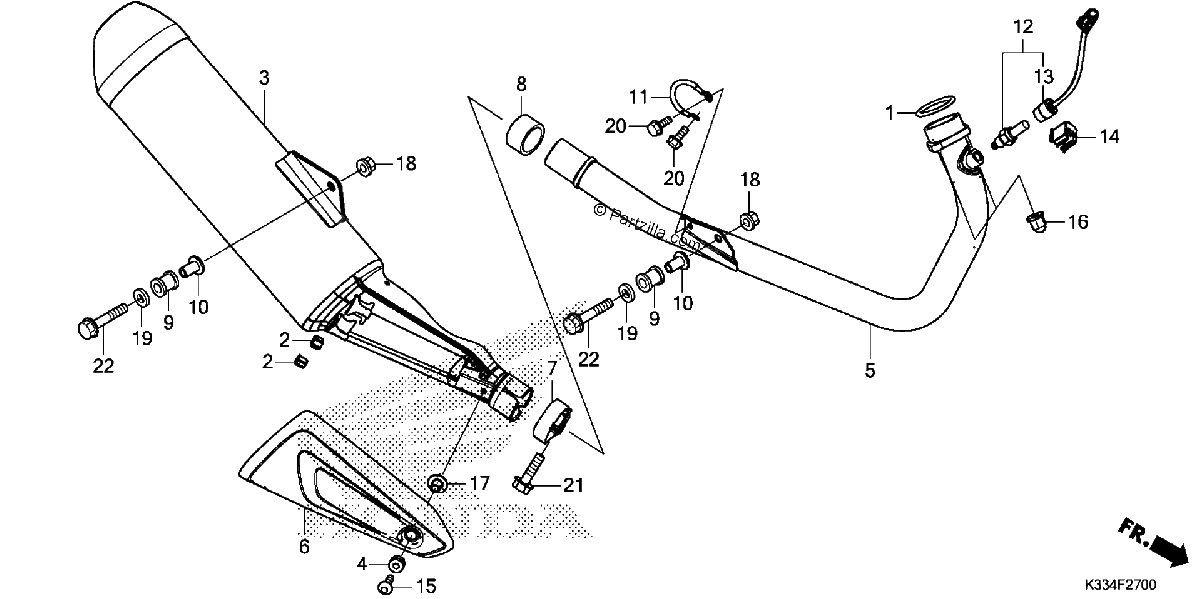

Diagrama de MUFFLER

Repuestos

#1
18291-MEB-670
GASKET, EX. PIPE
$5.96¢2 981
1
#001
18291-MEB-670
GASKET, EX. PIPE
$5.96¢2 981
1
#002
18293-MN0-000
RUBBER, PROTECTOR
$2.75¢1 375
1
#2
18293-MN0-000
RUBBER, PROTECTOR
$2.75¢1 375
1
#003
18310-K75-305
MUFFLER (COO)
$1045.64¢522 819
1
#3
18310-K75-305
MUFFLER (COO)
$1045.64¢522 819
1
#004
18320-196-000
RUBBER A, PROTECTOR
$3.44¢1 719
1
#4
18320-196-000
RUBBER A, PROTECTOR
$3.44¢1 719
1
#5
18320-K75-305
PIPE, EX. (COO)
$136.95¢68 475
1
#005
18320-K75-305
PIPE, EX. (COO)
$136.95¢68 475
1
#6
18355-K33-D00
COVER, MUFFLER
$56.16¢28 081
1
#006
18355-K33-D00
COVER, MUFFLER
$56.16¢28 081
1
#7
18373-K33-D00
BAND, MUFFLER
$22.44¢11 219
1
#007
18373-K33-D00
BAND, MUFFLER
$22.44¢11 219
1
#8
18392-KYJ-901
GASKET, MUFFLER
$8.25¢4 125
1
#008
18392-KYJ-901
GASKET, MUFFLER
$8.25¢4 125
1
#9
18421-K75-A50
RUBBER, MUFFLER MOUNTING
$7.88¢3 938
1
#009
18421-K75-A50
RUBBER, MUFFLER MOUNTING
$7.88¢3 938
1
#10
18422-KAF-700
COLLAR, MUFFLER MOUNTING
$7.18¢3 588
1
#010
18422-KAF-700
COLLAR, MUFFLER MOUNTING
$7.18¢3 588
1
#010
18422-MAL-600
COLLAR, MUFFLER MOUNTING
$7.18¢3 588
1
#10
18422-MAL-600
COLLAR, MUFFLER MOUNTING
$7.18¢3 588
1
#11
32200-K33-D00
SUB-HARNESS, OXYGEN SENSOR GROUND
$3.26¢1 631
1
#011
32200-K33-D00
SUB-HARNESS, OXYGEN SENSOR GROUND
$3.26¢1 631
1
#012
36532-K33-D01
SENSOR, OXYGEN
$130.33¢65 163
1
#12
36532-K33-D01
SENSOR, OXYGEN
$130.33¢65 163
1
#13
36533-K33-D01
WIRE, OXYGEN SENSOR
$65.49¢32 744
1
#013
36533-K33-D01
WIRE, OXYGEN SENSOR
$65.49¢32 744
1
#14
36538-K33-D00
COVER, SENSOR (O2)
$16.31¢8 156
1
#014
36538-K33-D00
COVER, SENSOR (O2)
$16.31¢8 156
1
#015
90118-MGZ-J00
SCREW, PAN (6X20)
$1.38¢688
1
#15
90118-MGZ-J00
SCREW, PAN (6X20)
$1.38¢688
1
#16
90304-KPH-700
NUT, HEX CAP (8MM)
$2.19¢1 094
1
#016
90304-KPH-700
NUT, HEX CAP (8MM)
$2.19¢1 094
1
#17
90502-KGB-610
COLLAR, HEAD SIDE COVER
$2.73¢1 363
1
#017
90502-KGB-610
COLLAR, HEAD SIDE COVER
$2.73¢1 363
1
#18
94050-08000
NUT, FLANGE (8MM)
$1.15¢575
1
#018
94050-08000
NUT, FLANGE (8MM)
$1.15¢575
1
#19
94103-08000
WASHER, PLAIN (8MM)
$0.84¢419
1
#019
94103-08000
WASHER, PLAIN (8MM)
$0.84¢419
1
#20
95701-06010-00
BOLT, FLANGE (6X10)
$1.63¢813
1
#020
95701-06010-00
BOLT, FLANGE (6X10)
$1.63¢813
1
#21
95701-08038-02
BOLT, FLANGE (8X38)
$5.15¢2 575
1
#021
95701-08038-02
BOLT, FLANGE (8X38)
$5.15¢2 575
1
#22
95701-08050-00
BOLT, FLANGE (8X50)
$2.92¢1 463
1
#022
95701-08050-00
BOLT, FLANGE (8X50)
$2.92¢1 463
1
