FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

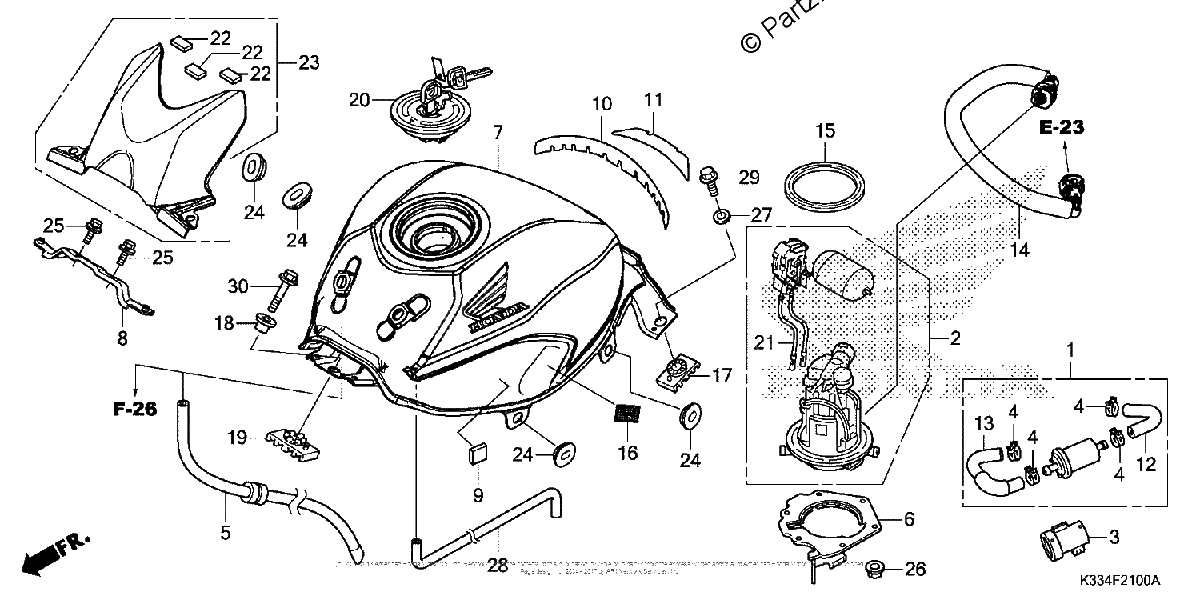

Diagrama de FUEL TANK

Repuestos

#001
06160-KYJ-920
FILTER KIT, FUEL
$65.14¢32 569
1
#1
06160-KYJ-920
FILTER KIT, FUEL
$65.14¢32 569
1
#002
16700-KYJ-901
PUMP ASSY., FUEL
$557.70¢278 850
1
#2
16700-KYJ-901
PUMP ASSY., FUEL
$557.70¢278 850
1
#3
16912-KYJ-900
HOLDER, FUEL FILTER
$11.83¢5 913
1
#003
16912-KYJ-900
HOLDER, FUEL FILTER
$11.83¢5 913
1
#004
16962-KYJ-920
CLAMP, TUBE (14.0)
$1.82¢913
1
#4
16962-KYJ-920
CLAMP, TUBE (14.0)
$1.82¢913
1
#5
17418-KYJ-960
TUBE, FUEL TANK BREATHER
$18.55¢9 275
1
#005
17418-KYJ-960
TUBE, FUEL TANK BREATHER
$18.55¢9 275
1
#006
17507-KYJ-900
PLATE, SETTING
$8.97¢4 488
1
#6
17507-KYJ-900
PLATE, SETTING
$8.97¢4 488
1
#7
17520-K75-V10ZC
TANK SET, FUEL (TYPE1) (WL)
$713.30¢356 650
1
#007
17520-K75-V10ZC
TANK SET, FUEL (TYPE1) (WL)
$713.30¢356 650
1
#8
17522-K33-D00
STAY, TANK LID
$8.18¢4 088
1
#008
17522-K33-D00
STAY, TANK LID
$8.18¢4 088
1
#9
17525-KPP-T00
RUBBER, FUEL TANK
$2.46¢1 231
1
#009
17525-KPP-T00
RUBBER, FUEL TANK
$2.46¢1 231
1
#10
17527-KYJ-710
FILM A, TANK PROTECTOR
$16.96¢8 481
1
#010
17527-KYJ-710
FILM A, TANK PROTECTOR
$16.96¢8 481
1
#11
17528-KYJ-710
FILM B, TANK PROTECTOR
$11.73¢5 863
1
#011
17528-KYJ-710
FILM B, TANK PROTECTOR
$11.73¢5 863
1
#012
17541-KYJ-920
TUBE A, FUEL PUMP
$21.68¢10 838
1
#12
17541-KYJ-920
TUBE A, FUEL PUMP
$21.68¢10 838
1
#13
17542-KYJ-920
TUBE B, FUEL PUMP
$31.64¢15 819
1
#013
17542-KYJ-920
TUBE B, FUEL PUMP
$31.64¢15 819
1
#14
17570-K33-D01
HOSE, FUEL FEED
$68.79¢34 394
1
#014
17570-K33-D01
HOSE, FUEL FEED
$68.79¢34 394
1
#015
17572-KTR-941
GASKET, FUEL PUMP
$26.81¢13 406
1
#15
17572-KTR-941
GASKET, FUEL PUMP
$26.81¢13 406
1
#16
17580-MGZ-J00
FASTENER A, DUAL LOCK (18X28)
$3.15¢1 575
1
#016
17580-MGZ-J00
FASTENER A, DUAL LOCK (18X28)
$3.15¢1 575
1
#17
17613-K33-D00
CUSHION, FUEL TANK (B)
$3.71¢1 856
1
#017
17613-K33-D00
CUSHION, FUEL TANK (B)
$3.71¢1 856
1
#018
17614-K33-D00
COLLAR, FUEL TANK
$2.17¢1 088
1
#18
17614-K33-D00
COLLAR, FUEL TANK
$2.17¢1 088
1
#019
17615-K33-D00
CUSHION, FUEL TANK (A)
$4.55¢2 275
1
#19
17615-K33-D00
CUSHION, FUEL TANK (A)
$4.55¢2 275
1
#20
17620-MCB-611
CAP, FUEL FILLER
$160.29¢80 144
1
#020
17620-MCB-611
CAP, FUEL FILLER
$160.29¢80 144
1
#020
17620-MCB-612
CAP, FUEL FILLER
$160.29¢80 144
1
#21
37800-KYJ-901
FUEL UNIT
$149.32¢74 663
1
#021
37800-KYJ-901
FUEL UNIT
$149.32¢74 663
1
#022
64455-KPP-T00
RUBBER SPONGE, TANK COVER
$1.76¢881
1
#22
64455-KPP-T00
RUBBER SPONGE, TANK COVER
$1.76¢881
1
#023
64700-K33-D00ZA
COVER ASSY., FUEL TANK *R263* (MILLENNIUM RED)
$42.07¢21 037
1
#23
64700-K33-D00ZA
COVER ASSY., FUEL TANK *R263* (MILLENNIUM RED)
$42.07¢21 037
1
#024
83551-300-000
GROMMET, AIR CLEANER HOUSING
$4.45¢2 225
1
#24
83551-300-000
GROMMET, AIR CLEANER HOUSING
$4.45¢2 225
1
#25
93401-06014-00
BOLT-WASHER (6X14)
$2.09¢1 044
1
#025
93401-06014-00
BOLT-WASHER (6X14)
$2.09¢1 044
1
#026
94050-06000
NUT, FLANGE (6MM)
$0.80¢400
1
#26
94050-06000
NUT, FLANGE (6MM)
$0.80¢400
1
#027
94103-06800
WASHER, PLAIN (6MM)
$1.00¢500
1
#27
94103-06800
WASHER, PLAIN (6MM)
$1.00¢500
1
#028
95005-80001-20M
BULK HOSE, VACUUM (8X1000) (8X50)
$27.96¢13 981
1
#28
95005-80001-20M
BULK HOSE, VACUUM (8X1000) (8X50)
$27.96¢13 981
1
#029
95701-06012-08
BOLT, FLANGE (6X12)
$1.99¢994
1
#29
95701-06012-08
BOLT, FLANGE (6X12)
$1.99¢994
1
#30
95701-08030-08
BOLT, FLANGE (8X30)
$1.80¢900
1
#030
95701-08030-08
BOLT, FLANGE (8X30)
$1.80¢900
1
