FRONT BRAKE MASTER CYLINDER ABS

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

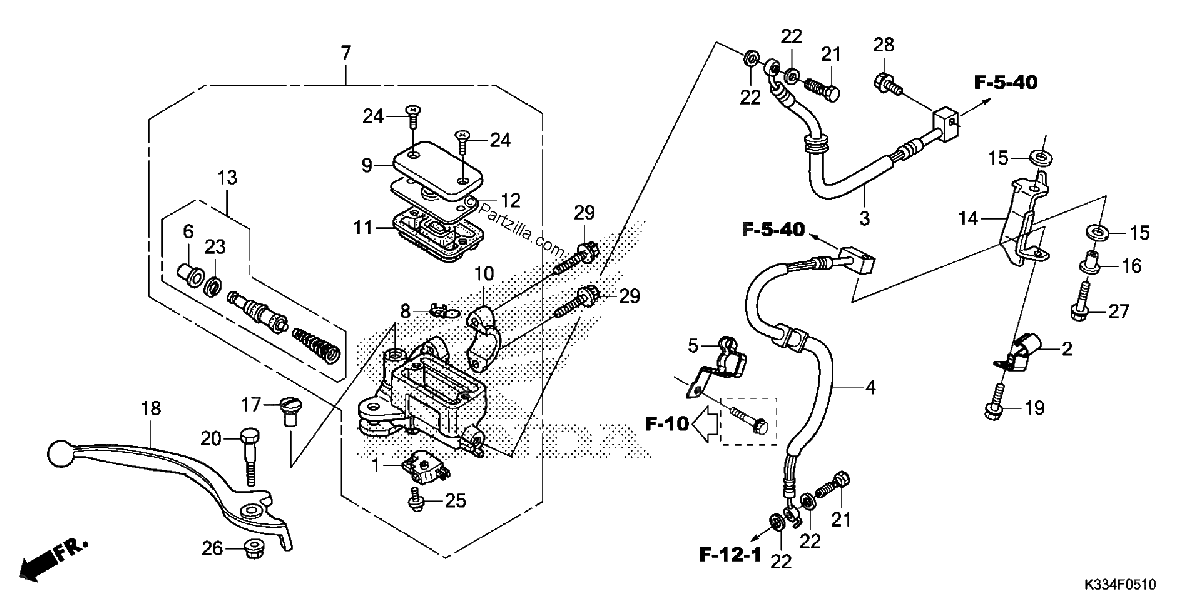

Diagrama de FRONT BRAKE MASTER CYLINDER ABS

Repuestos

#1
35340-MGS-D31
SWITCH Assembly., Front STOP (ALPS)
$21.49¢10 744
1
#001
35340-MGS-D31
SWITCH Assembly., Front STOP (ALPS)
$21.49¢10 744
1
#002
38526-K33-D50
CLAMP, SPEED SENSOR WIRE (FR)
$3.26¢1 631
1
#2
38526-K33-D50
CLAMP, SPEED SENSOR WIRE (FR)
$3.26¢1 631
1
#3
45125-KYJ-E21
HOSE B, Front BRAKE
$39.04¢19 519
1
#003
45125-KYJ-E21
HOSE B, Front BRAKE
$39.04¢19 519
1
#004
45126-K33-D51
HOSE A, FR. BRAKE
$45.26¢22 631
1
#4
45126-K33-D51
HOSE A, FR. BRAKE
$45.26¢22 631
1
#5
45156-K33-D50
CLAMP B, Front BRAKE HOSE
$7.63¢3 813
1
#005
45156-K33-D50
CLAMP B, Front BRAKE HOSE
$7.63¢3 813
1
#006
45504-410-003
BOOT
$14.24¢7 119
1
#6
45504-410-003
BOOT
$14.24¢7 119
1
#7
45510-K33-D51
MASTER CYLINDER SUB-Assembly., Front BRAKE (NISSIN)
$139.86¢69 931
1
#007
45510-K33-D51
MASTER CYLINDER SUB-Assembly., Front BRAKE (NISSIN)
$139.86¢69 931
1
#8
45512-MA6-006
PROTECTOR
$5.20¢2 600
1
#008
45512-MA6-006
PROTECTOR
$5.20¢2 600
1
#9
45513-HR0-305
CAP, MASTER CYLINDER (COO)
$5.04¢2 519
1
#009
45513-HR0-305
CAP, MASTER CYLINDER (COO)
$5.04¢2 519
1
#9
45513-KK1-771
CAP, MASTER CYLINDER
$5.04¢2 519
1
#009
45513-KK1-771
CAP, MASTER CYLINDER
$5.04¢2 519
1
#010
45517-166-006
HOLDER, MASTER CYLINDER
$15.74¢7 869
1
#10
45517-166-006
HOLDER, MASTER CYLINDER
$15.74¢7 869
1
#11
45520-GE2-006
DIAPHRAGM
$10.88¢5 438
1
#011
45520-GE2-006
DIAPHRAGM
$10.88¢5 438
1
#11
45520-MG7-006
DIAPHRAGM
$12.31¢6 156
1
#12
45521-K21-901
PLATE, DIAPHRAGM
$2.92¢1 463
1
#012
45521-K21-901
PLATE, DIAPHRAGM
$2.92¢1 463
1
#13
45530-471-831
MASTER CYLINDER SET
$46.40¢23 200
1
#013
45530-471-831
MASTER CYLINDER SET
$46.40¢23 200
1
#014
50246-KYJ-910
STAY, FR. BRAKE HOSE
$34.08¢17 038
1
#14
50246-KYJ-910
STAY, FR. BRAKE HOSE
$34.08¢17 038
1
#015
50248-KYJ-910
WASHER, RUBBER
$0.93¢463
1
#15
50248-KYJ-910
WASHER, RUBBER
$0.93¢463
1
#16
50249-KYJ-910
COLLAR, JOINT STAY MOUNTING (TWO-WAY)
$5.35¢2 675
1
#016
50249-KYJ-910
COLLAR, JOINT STAY MOUNTING (TWO-WAY)
$5.35¢2 675
1
#17
53174-116-670
PLUG, HANDLE LEVER BRACKET
$3.20¢1 600
1
#017
53174-116-670
PLUG, HANDLE LEVER BRACKET
$3.20¢1 600
1
#18
53175-K26-305
LEVER, Right HANDLEBAR (COO)
$19.27¢9 638
1
#018
53175-K26-305
LEVER, Right HANDLEBAR (COO)
$19.27¢9 638
1
#19
90105-MY9-000
BOLT, FLANGE (6X18)
$3.65¢1 825
1
#019
90105-MY9-000
BOLT, FLANGE (6X18)
$3.65¢1 825
1
#20
90114-166-006
BOLT, HANDLE LEVER PIVOT
$7.88¢3 938
1
#020
90114-166-006
BOLT, HANDLE LEVER PIVOT
$7.88¢3 938
1
#21
90145-MS9-612
BOLT, OIL (10X22)
$8.89¢4 444
1
#021
90145-MS9-612
BOLT, OIL (10X22)
$8.89¢4 444
1
#022
90545-300-000
WASHER, OIL BOLT
$4.85¢2 425
1
#22
90545-300-000
WASHER, OIL BOLT
$4.85¢2 425
1
#023
90651-MA5-671
CIRCLIP
$3.10¢1 550
1
#23
90651-MA5-671
CIRCLIP
$3.10¢1 550
1
#24
93600-04012-0G
SCREW, FLAT (4X12)
$1.16¢581
1
#024
93600-04012-1G
SCREW, FLAT (4X12)
$1.16¢581
1
#24
93600-04012-1G
SCREW, FLAT (4X12)
$1.16¢581
1
#024
93600-04012-0G
SCREW, FLAT (4X12)
$1.16¢581
1
#025
93893-04012-17
SCREW-WASHER (4X12)
$1.72¢862
1
#25
93893-04012-17
SCREW-WASHER (4X12)
$1.72¢862
1
#25
93893-04012-07
SCREW-WASHER (4X12)
$1.72¢862
1
#025
93893-04012-07
SCREW-WASHER (4X12)
$1.72¢862
1
#26
94050-06000
NUT, FLANGE (6MM)
$0.80¢400
1
#026
94050-06000
NUT, FLANGE (6MM)
$0.80¢400
1
#027
95701-06020-07
BOLT, FLANGE (6X20)
$2.09¢1 044
1
#27
95701-06020-07
BOLT, FLANGE (6X20)
$2.09¢1 044
1
#28
96001-06012-07
BOLT, FLANGE (6X12)
$2.31¢1 156
1
#028
96001-06012-07
BOLT, FLANGE (6X12)
$2.31¢1 156
1
#029
96001-06022-07
BOLT, FLANGE (6X22)
$2.38¢1 188
1
#29
96001-06022-07
BOLT, FLANGE (6X22)
$2.38¢1 188
1
