RIGHT CRANKCASE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

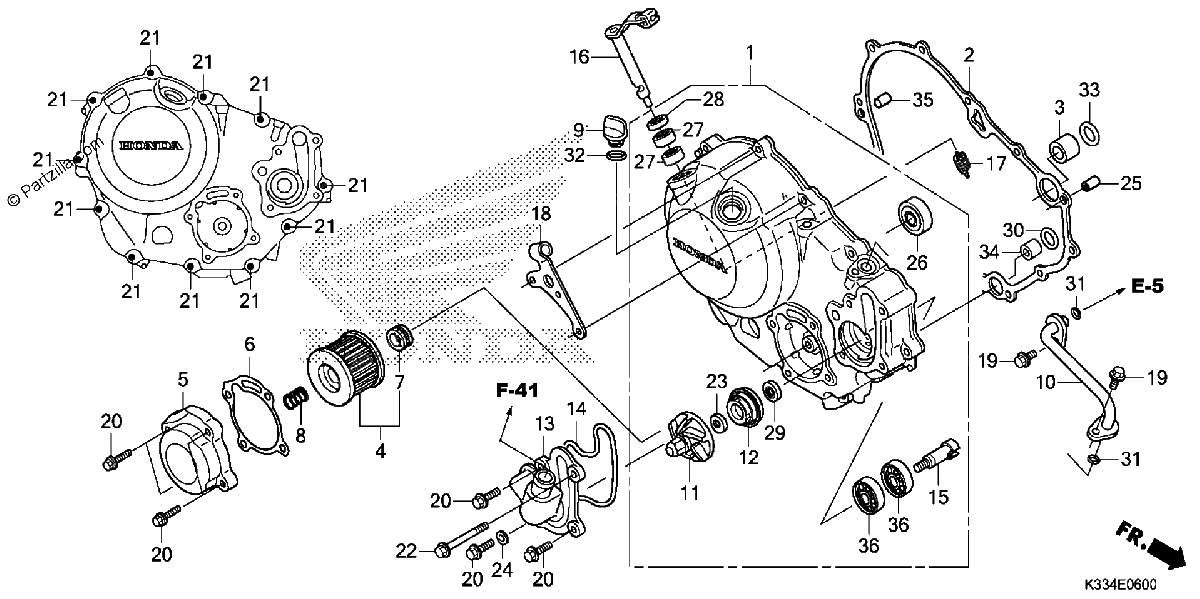

Diagrama de RIGHT CRANKCASE COVER

Repuestos

#001
11300-K75-T50
COVER ASSY., R. CRANKCASE
$181.16¢90 581
1
#1
11300-K75-T50
COVER ASSY., R. CRANKCASE
$181.16¢90 581
1
#002
11394-K87-A30
GASKET, Right CRANKCASE COVER
$11.59¢5 794
1
#2
11394-KYJ-900
GASKET, Right CRANKCASE COVER
$11.59¢5 794
1
#002
11394-KYJ-900
GASKET, Right CRANKCASE COVER
$11.59¢5 794
1
#003
15326-KT7-000
COLLAR, OIL PASSAGE (18MM)
$3.65¢1 825
1
#3
15326-KT7-000
COLLAR, OIL PASSAGE (18MM)
$3.65¢1 825
1
#4
15410-KYJ-902
ELEMENT, OIL FILTER
$7.26¢3 631
1
#004
15410-KYJ-902
ELEMENT, OIL FILTER
$7.26¢3 631
1
#005
15411-K75-T50
COVER, OIL FILTER
$33.27¢16 638
1
#5
15411-K75-T50
COVER, OIL FILTER
$33.27¢16 638
1
#6
15412-KYJ-901
GASKET, OIL FILTER COVER
$6.65¢3 325
1
#006
15412-KYJ-901
GASKET, OIL FILTER COVER
$6.65¢3 325
1
#7
15413-MC8-000
RUBBER, FILTER
$4.06¢2 031
1
#007
15413-MC8-000
RUBBER, FILTER
$4.06¢2 031
1
#008
15414-KF0-000
SPRING, OIL FILTER ELEMENT SETTING
$5.15¢2 575
1
#8
15414-KF0-000
SPRING, OIL FILTER ELEMENT SETTING
$5.15¢2 575
1
#9
15611-KA4-710
CAP, OIL FILLER
$16.71¢8 356
1
#009
15611-KA4-710
CAP, OIL FILLER
$16.71¢8 356
1
#10
19120-KYJ-900
PIPE, WATER
$8.89¢4 444
1
#010
19120-KYJ-900
PIPE, WATER
$8.89¢4 444
1
#011
19215-KGH-900
IMPELLER, WATER PUMP
$6.11¢3 056
1
#11
19215-KGH-900
IMPELLER, WATER PUMP
$6.11¢3 056
1
#12
19217-P72-013
SEAL, MECHANICAL
$45.96¢22 981
1
#012
19217-P72-013
SEAL, MECHANICAL
$45.96¢22 981
1
#013
19220-K75-T50
COVER, WATER PUMP
$44.97¢22 487
1
#13
19220-K75-T50
COVER, WATER PUMP
$44.97¢22 487
1
#014
19226-KYJ-901
GASKET, WATER PUMP COVER (ARAI)
$2.07¢1 037
1
#14
19226-KYJ-901
GASKET, WATER PUMP COVER (ARAI)
$2.07¢1 037
1
#15
19241-KZZ-D20
SHAFT, WATER PUMP
$14.10¢7 050
1
#015
19241-KZZ-D20
SHAFT, WATER PUMP
$14.10¢7 050
1
#16
22810-K33-D00
LEVER, CLUTCH
$36.99¢18 494
1
#016
22810-K33-D00
LEVER, CLUTCH
$36.99¢18 494
1
#017
22815-KM7-700
SPRING, CLUTCH LEVER
$5.06¢2 531
1
#17
22815-KM7-700
SPRING, CLUTCH LEVER
$5.06¢2 531
1
#018
22821-K33-D00
RECEIVER, CLUTCH CABLE
$6.61¢3 306
1
#18
22821-K33-D00
RECEIVER, CLUTCH CABLE
$6.61¢3 306
1
#019
90010-KYJ-900
BOLT, FLANGE (6X16) (NSHF)
$0.61¢306
1
#19
90010-KYJ-900
BOLT, FLANGE (6X16) (NSHF)
$0.61¢306
1
#020
90012-KYJ-900
BOLT, FLANGE (6X25)
$0.61¢306
1
#20
90012-KYJ-900
BOLT, FLANGE (6X25)
$0.61¢306
1
#021
90013-KYJ-900
BOLT, FLANGE (6X30) (NSHF)
$0.70¢350
1
#21
90013-KYJ-900
BOLT, FLANGE (6X30) (NSHF)
$0.70¢350
1
#022
90015-KYJ-900
BOLT, FLANGE (6X65) (NSHF)
$1.11¢556
1
#22
90015-KYJ-900
BOLT, FLANGE (6X65) (NSHF)
$1.11¢556
1
#023
90423-KJ9-000
WASHER (7.2X13X1.2)
$3.01¢1 506
1
#23
90423-KJ9-000
WASHER (7.2X13X1.2)
$3.01¢1 506
1
#23
90423-KW6-900
WASHER (7X13X1.2)
$3.01¢1 506
1
#023
90423-KW6-900
WASHER (7X13X1.2)
$3.01¢1 506
1
#024
90463-ML7-000
WASHER, SEALING (6.5MM)
$3.65¢1 825
1
#24
90463-ML7-000
WASHER, SEALING (6.5MM)
$3.65¢1 825
1
#25
90702-KFM-900
PIN, DOWEL (8X12)
$0.86¢431
1
#025
90702-KFM-900
PIN, DOWEL (8X12)
$0.86¢431
1
#26
91009-KYJ-901
BEARING, RADIAL BALL SPECIAL (6001U)
$24.16¢12 081
1
#026
91009-KYJ-901
BEARING, RADIAL BALL SPECIAL (6001U)
$24.16¢12 081
1
#027
91053-719-005
BEARING, NEEDLE (12X16X10) (NTN)
No Disponible
1
#27
91053-719-005
BEARING, NEEDLE (12X16X10) (NTN)
No Disponible
1
#27
91101-PZ9-000
BEARING, NEEDLE (12X16X10)
$10.15¢5 075
1
#027
91101-PZ9-000
BEARING, NEEDLE (12X16X10)
$10.15¢5 075
1
#28
91204-KK0-003
OIL SEAL (12X18X5) (ARAI)
$6.13¢3 063
1
#028
91204-KK0-003
OIL SEAL (12X18X5) (ARAI)
$6.13¢3 063
1
#029
91202-KTW-901
OIL SEAL (12X26X5)
$12.15¢6 075
1
#29
91202-KTW-901
OIL SEAL (12X26X5)
$12.15¢6 075
1
#030
91301-KYJ-901
O-RING (11.8X1.9)
$0.58¢288
1
#30
91301-KYJ-901
O-RING (11.8X1.9)
$0.58¢288
1
#031
91302-KYJ-901
O-RING (9.8X2.4)
$0.90¢450
1
#31
91302-KYJ-901
O-RING (9.8X2.4)
$0.90¢450
1
#032
91307-035-000
O-RING (18X3)
$3.65¢1 825
1
#32
91307-035-000
O-RING (18X3)
$3.65¢1 825
1
#033
91322-PT0-004
O-RING (17.8X1.9) (ARAI)
$3.33¢1 663
1
#033
91322-PT0-003
O-RING (17.8X1.9) (NOK)
$3.33¢1 663
1
#33
91322-PT0-004
O-RING (17.8X1.9) (ARAI)
$3.33¢1 663
1
#33
91322-PT0-003
O-RING (17.8X1.9) (NOK)
$3.33¢1 663
1
#034
94301-12160
PIN A, DOWEL (12X16)
$2.92¢1 463
1
#34
94301-12160
PIN A, DOWEL (12X16)
$2.92¢1 463
1
#035
94302-08140
PIN B, DOWEL (8X14)
$2.75¢1 375
1
#35
94302-08140
PIN B, DOWEL (8X14)
$2.75¢1 375
1
#036
96100-60013-00
BEARING, RADIAL BALL (6001)
$12.65¢6 325
1
#36
96100-60013-00
BEARING, RADIAL BALL (6001)
$12.65¢6 325
1
