FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

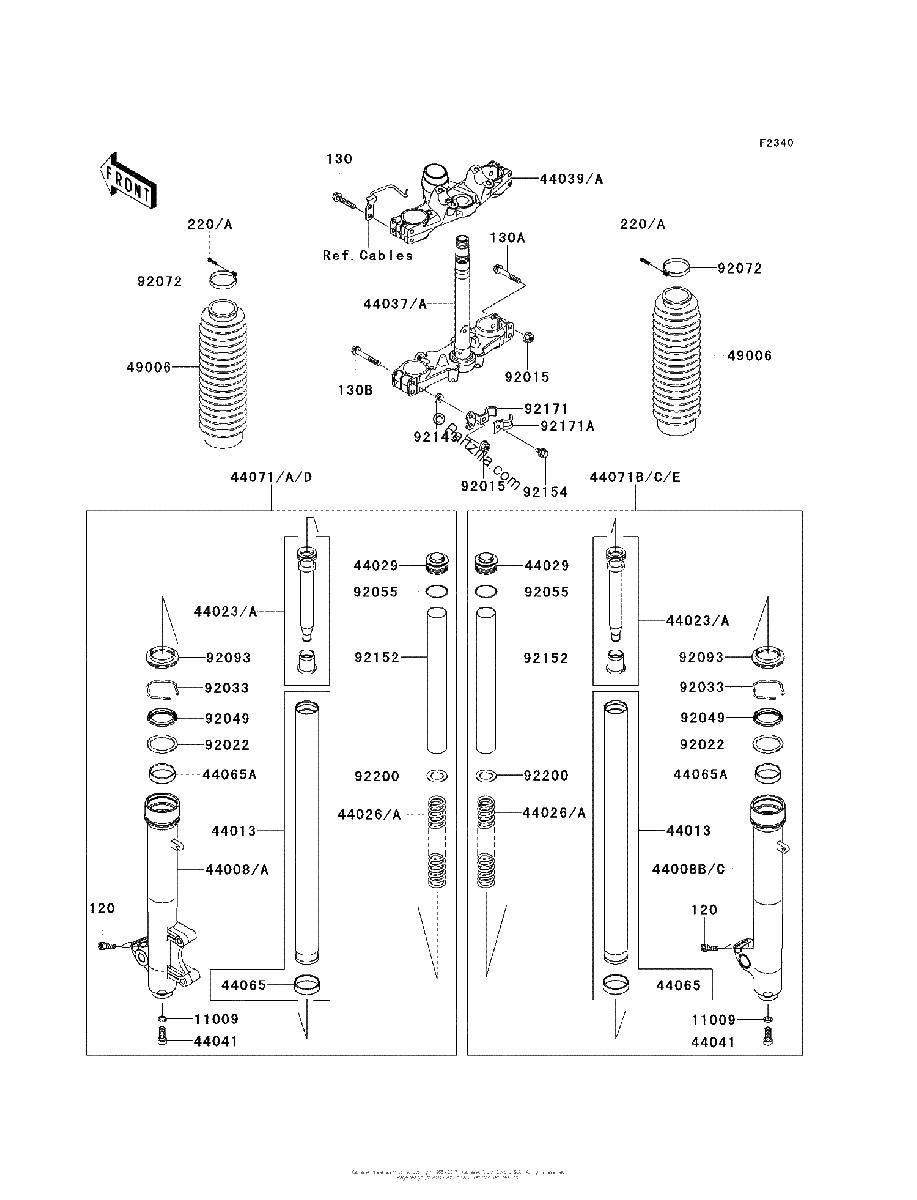

Diagrama de FRONT FORK

Repuestos

#120
120CA0830
BOLT SOCKET,8X30
$2.58¢1 288
1
#130
130BA0840
BOLT-FLANGED,8X40
$1.88¢938
1
#130A
130BA0850
BOLT FLANGED,8X50
$2.13¢1 063
1
#130B
130BA0855
BOLT FLANGED,8X55
$2.23¢1 113
1
#220
220C0416
SCREW PAN CROS,4X16
No Disponible
1
#220
220AB0416
SCREW PAN CROS,4X16
$1.74¢869
1
#220A
220C0416
SCREW PAN CROS,4X16
No Disponible
1
#11009
11009-1325
GASKET,FORK CYLINDER
No Disponible
1
#44008
44008-0021-458
PIPE FORK OUTER,Left Hand,P SILVER
$646.85¢323 425
1
#44008
44008-0021-18R
PIPE FORK OUTER,Left Hand,F S BLACK
$607.60¢303 800
1
#44008B
44008-0023-18R
PIPE FORK OUTER,Right Hand,F S BLACK
$607.60¢303 800
1
#44008B
44008-0023-458
PIPE FORK OUTER,Right Hand,P SILVER
$646.85¢323 425
1
#44013
44013-0107
PIPE-FORK INNER
$449.70¢224 850
1
#44023
44023-0060
CYLINDER-SET-FORK
$242.54¢121 269
1
#44023
44023-0019
CYLINDER SET FORK
$552.89¢276 444
1
#44023A
44023-0060
CYLINDER-SET-FORK
$242.54¢121 269
1
#44026
44026-0184
SPRING FRONT FORK
$87.33¢43 663
1
#44026
44026-0112
SPRING-FRONT FORK
$90.50¢45 250
1
#44029
44029-0005
SEAT-FORK SPRING
$53.72¢26 862
1
#44037
44037-0054-458
HOLDER FORK UNDER,P SILVER
$835.56¢417 781
1
#44037
44037-0054-18R
HOLDER FORK UNDER,F S BLACK
$786.08¢393 038
1
#44039
44039-0047-458
HOLDER FORK UPPER,P SILVER
$431.13¢215 563
1
#44039
44039-0047-18R
HOLDER FORK UPPER,F S BLACK
$409.89¢204 944
1
#44041
44041-040
BOLT,SOCKET,FORK CYLINDER
$6.42¢3 213
1
#44065A
44065-1115
BUSHING-FRONT FORK,OUTER TUBE
$32.69¢16 344
1
#44065
44065-0014
BUSHING FRONT FORK,INNER TUBE
$33.66¢16 831
1
#44071B
44071-0344-18R
DAMPER Assembly,FORK,Right Hand,F S BLACK
$1037.67¢518 838
1
#44071B
44071-0344-458
DAMPER Assembly,FORK,Right Hand,P SILVER
$1051.10¢525 550
1
#44071B
44071-0938-18R
DAMPER Assembly,FORK,Right Hand,F S BLACK
$971.56¢485 781
1
#44071
44071-0343-18R
DAMPER Assembly,FORK,Left Hand,F S BLACK
$1037.67¢518 838
1
#44071
44071-0343-458
DAMPER Assembly,FORK,Left Hand,P SILVER
$1051.10¢525 550
1
#44071
44071-0937-18R
DAMPER Assembly,FORK,Left Hand,F S BLACK
$971.56¢485 781
1
#49006
49006-1266-BD
BOOT,FORK,BLACK
$78.49¢39 244
1
#92015
92015-1406
NUT,FLANGED,8MM
$4.41¢2 206
1
#92022
92022-1298
WASHER,FORK OUTER TUBE
$8.53¢4 263
1
#92033
92033-1036
RING-SNAP
$6.36¢3 181
1
#92049
92049-1356
SEAL-OIL,FORK OUTER TUBE
$19.01¢9 506
1
#92055
92055-1321
in.0in. RING,32MM
$1.34¢669
1
#92072
92072-1077
BAND,BOOT
$9.90¢4 950
1
#92093
92093-0036
SEAL,DUST
$21.63¢10 813
1
#92143
92143-1770
COLLAR
$10.89¢5 444
1
#92152
92152-0603
COLLAR
$18.79¢9 394
1
#92154
92154-0111
BOLT,FLANGED,6X10
$2.48¢1 238
1
#92171A
92171-1745
CLAMP
$12.52¢6 262
1
#92171
92171-1744
CLAMP
$24.05¢12 025
1
#92200
92200-1467
WASHER
$11.21¢5 606
1
