OIL PAN OIL PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

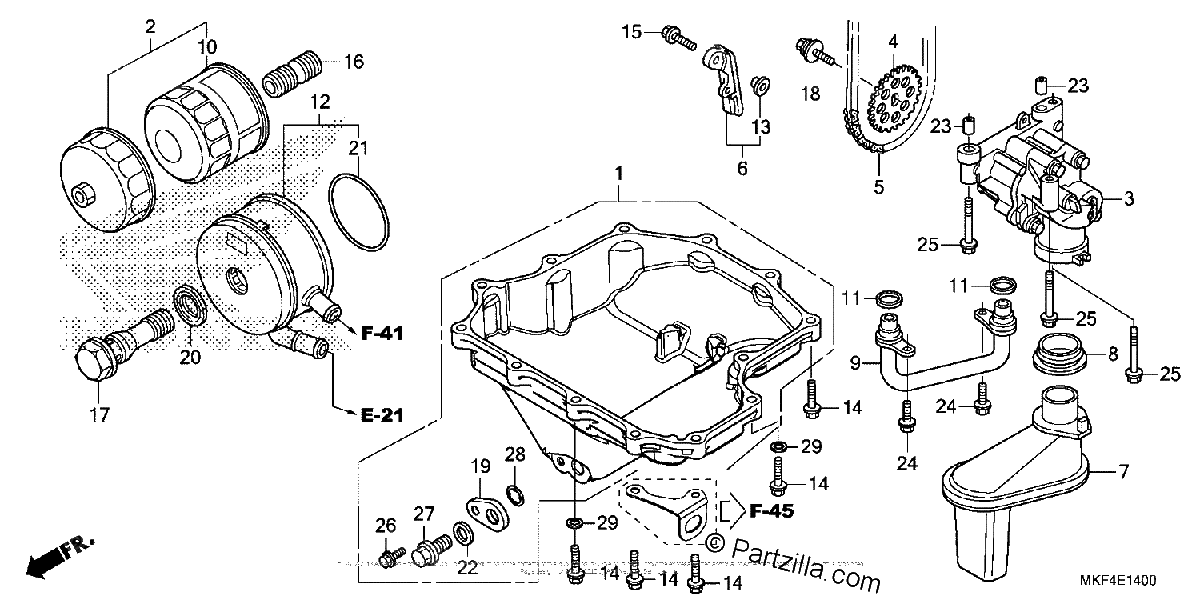

Diagrama de OIL PAN OIL PUMP

Repuestos

#1
11210-MKF-D40
PAN, OIL
$816.09¢408 043
1
#2
15010-MCE-H51
FILTER SET, OIL
$21.21¢10 603
1
#3
15100-MKF-D40
PUMP Assembly., OIL
$271.43¢135 717
1
#4
15134-MEL-000
SPROCKET, OIL PUMP DRIVEN (25T)
$54.84¢27 422
1
#5
15141-MFL-003
CHAIN, OIL PUMP (72L)
$20.69¢10 344
1
#6
15146-MFL-000
GUIDE, OIL PUMP CHAIN
$8.58¢4 289
1
#7
15150-MFL-000
STRAINER, OIL
$39.49¢19 746
1
#8
15154-MAT-000
GASKET, OIL STRAINER
$6.87¢3 433
1
#9
15310-MFL-000
PIPE, OIL
$92.23¢46 115
1
#10
15410-MFJ-D01
FILTER, OIL (TOYO ROKI)
$16.54¢8 269
1
#11
15433-MFJ-D01
RING, SEAL
$2.45¢1 225
1
#12
15700-MGP-003
COOLER, OIL
$377.08¢188 542
1
#13
61107-MCR-D00
COLLAR, FR. FENDER
$2.66¢1 328
1
#14
90006-MKF-D40
BOLT, FLANGE (6X28)
$3.36¢1 679
1
#15
90011-MFL-000
BOLT, FLANGE (6X20)
$2.22¢1 110
1
#16
90019-MB0-000
BOSS, OIL FILTER
$9.27¢4 635
1
#17
90019-MGP-D60
BOLT, OIL COOLER
$78.61¢39 307
1
#18
90021-MM5-000
BOLT-WASHER (6X12)
$5.70¢2 852
1
#19
11212-MEL-300
BASE, OIL PAN DRAIN
$27.15¢13 576
1
#20
90402-MFJ-D01
WASHER, SEALING (34.5MM)
$8.05¢4 025
1
#21
91354-MCT-003
O-RING, OIL COOLER
$8.49¢4 244
1
#22
94109-12000
WASHER, DRAIN PLUG (12MM)
$1.45¢724
1
#23
94301-08140
PIN, DOWEL (8X14)
$2.66¢1 328
1
#24
95701-06016-00
BOLT, FLANGE (6X16)
$1.92¢960
1
#25
95701-06045-00
BOLT, FLANGE (6X45)
$2.56¢1 282
1
#25
95701-06045-07
BOLT, FLANGE (6X45)
$2.56¢1 282
1
#26
90006-GHB-630
BOLT, FLANGE (6X16) (NSHF)
$2.13¢1 064
1
#27
90012-MEL-000
BOLT, DRAIN PLUG (12MM)
$3.86¢1 932
1
#28
91306-MEL-003
O-RING (21.9X1.8)
$3.15¢1 576
1
#29
90401-MKF-D40
WASHER (6MM)
$4.37¢2 185
1
