CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

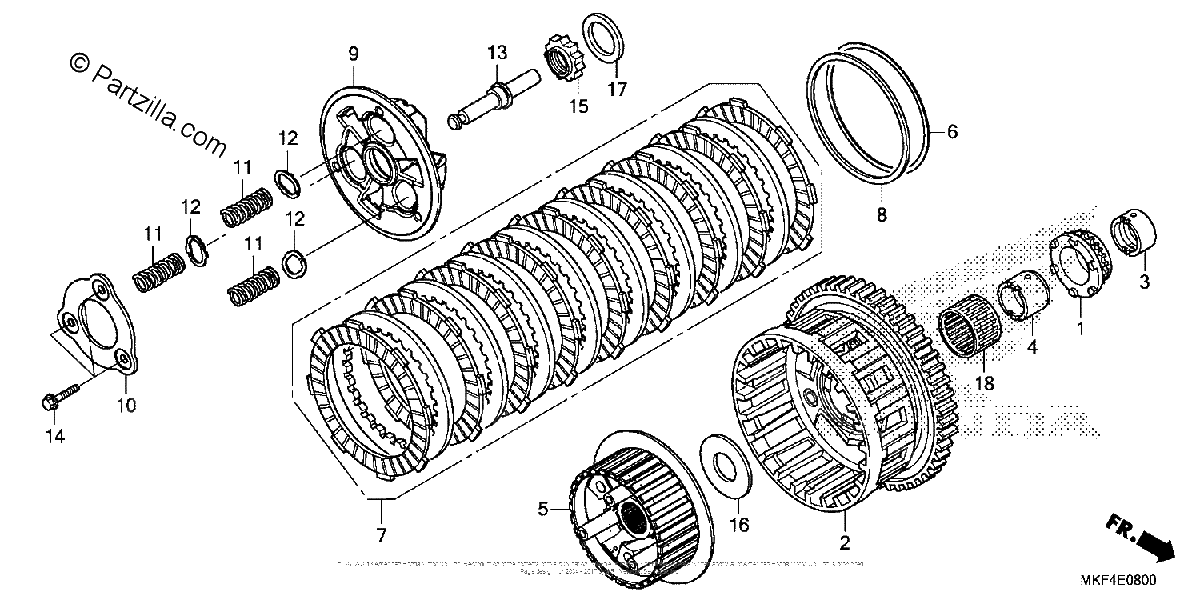

Diagrama de CLUTCH

Repuestos

#1
15131-MEL-003
SPROCKET, OIL PUMP DRIVE (26T)
$79.23¢39 613
1
#2
22100-MFL-880
CLUTCH OUTER A (BLUE)
$418.05¢209 025
1
#2
22110-MFL-880
CLUTCH OUTER B (YELLOW)
$418.05¢209 025
1
#2
22115-MFL-880
CLUTCH OUTER C (GREEN)
$443.49¢221 744
1
#3
22116-MEL-000
COLLAR, OIL PUMP SPROCKET
$21.27¢10 638
1
#4
22117-MFL-880
GUIDE A, CLUTCH (OUTER) (2MM HOLE X2)
$24.04¢12 019
1
#4
22118-MFL-880
GUIDE B, CLUTCH (OUTER) (2MM HOLE X3)
$25.13¢12 563
1
#4
22119-MFL-880
GUIDE C, CLUTCH (OUTER) (2MM HOLE X4)
$24.04¢12 019
1
#5
22121-MKF-D41
CENTER, CLUTCH
$155.90¢77 950
1
#6
22125-HP6-A00
SEAT, JUDDER SPRING
$5.79¢2 894
1
#7
22210-MKF-D40
DISK SET, CLUTCH
$219.13¢109 563
1
#8
22325-MJP-G51
SPRING, JUDDER
$47.20¢23 600
1
#9
22350-MKF-D41
PLATE, CLUTCH PRESSURE
$94.59¢47 294
1
#10
22361-MJP-G51
PLATE, SETTING
$31.09¢15 544
1
#11
22401-MKF-D41
SPRING, CLUTCH
$7.48¢3 738
1
#12
22425-MKF-D41
SEAT, CLUTCH SPRING
$14.79¢7 394
1
#13
22847-MGP-D60
PIN, CLUTCH LIFTER
$45.29¢22 644
1
#14
90050-MKF-D41
BOLT, FLANGE (6X45)
$3.71¢1 856
1
#15
90231-MS2-610
NUT, LOCK (25MM)
$21.80¢10 900
1
#16
90401-MS2-610
WASHER, THRUST (28.2X56X2)
$20.43¢10 213
1
#17
90407-MFL-000
WASHER (25.1X37X3.2)
$5.02¢2 512
1
#18
91101-MFL-881
BEARING A, NEEDLE (35X41X27.8) (RED)
$11.68¢5 838
1
#18
91102-MFL-881
BEARING B, NEEDLE (35X41X27.8) (WHITE)
$10.00¢5 000
1
#18
91103-MFL-881
BEARING C, NEEDLE (35X41X27.8) (GREEN)
$11.16¢5 581
1
