HANDLEBAR TOP BRIDGE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

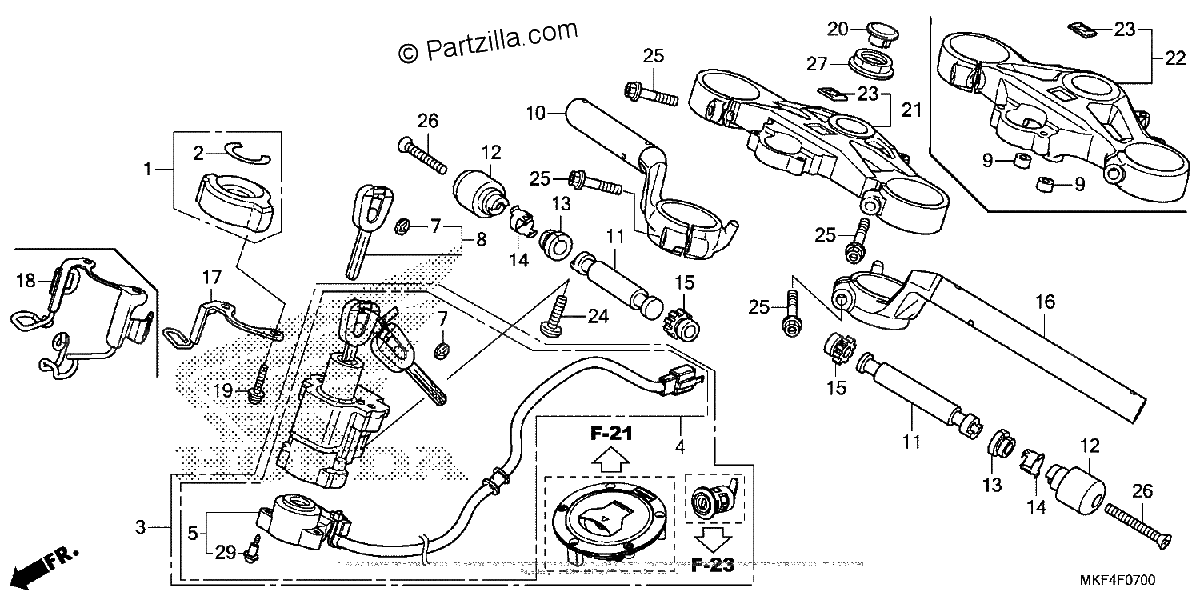

Diagrama de HANDLEBAR TOP BRIDGE

Repuestos

#1
35106-MAT-A00
COVER, COMBINATION SWITCH
$11.24¢5 618
1
#2
30433-MBW-602
SEAL, IGNITION SWITCH
$3.36¢1 679
1
#3
35010-MKF-A20
LOCK SET
No Disponible
1
#3
35010-MKF-A21
LOCK SET
No Disponible
1
#4
35100-MKF-A21
SWITCH Assembly., COMBINATION & LOCK
$170.03¢85 014
1
#4
35100-MKF-A22
SWITCH ASSY., COMBINATION & LOCK
$170.03¢85 014
1
#5
35101-MKF-D41
BASE, CONTACT
$97.90¢48 950
1
#7
35113-MJK-N20
EMBLEM, KEY
$4.09¢2 047
1
#8
35121-MGP-A93
KEY, BLANK
$25.01¢12 506
1
#9
50615-MBL-610
COLLAR, STEP (LOWER)
$6.49¢3 243
1
#10
53100-MKF-D40
HANDLEBAR, R.
$247.89¢123 947
1
#11
53105-KV3-000
WEIGHT B, HANDLEBAR
$18.61¢9 304
1
#12
53105-MEE-940
WEIGHT, HANDLEBAR
$19.18¢9 591
1
#13
53107-MJ0-000
RUBBER B, HANDLE WEIGHT
$4.21¢2 105
1
#14
53108-MJ0-000
RING, HANDLE WEIGHT SNAP
$5.73¢2 864
1
#15
53109-MM5-000
RUBBER B, HANDLE WEIGHT
$4.16¢2 081
1
#16
53150-MKF-D40
HANDLEBAR, L.
$210.75¢105 374
1
#18
53191-MKF-D60
STAY, CLUTCH & HARNESS
$31.22¢15 611
1
#19
53192-MFL-000
SCREW-WASHER (5X25)
$2.18¢1 092
1
#20
53232-MCF-D31
CAP, STEERING NUT
$16.51¢8 257
1
#22
53300-MKF-D60
BRIDGE, FORK TOP
$527.46¢263 730
1
#23
86150-KPG-901
EMBLEM, PRODUCT (MARUI)
$4.04¢2 018
1
#23
86150-KPG-902
EMBLEM, PRODUCT (UEHARA)
$4.75¢2 375
1
#24
90108-MCA-000
BOLT, ONE-WAY (8X34)
$4.43¢2 214
1
#25
90107-MGE-000
BOLT, FLANGE (8X40)
$3.15¢1 576
1
#26
90191-KT7-750
SCREW, OVAL (6X60)
$5.29¢2 645
1
#27
90304-MFL-000
NUT, STEERING STEM
$15.40¢7 699
1
#29
91059-KY2-711
SCREW, TAPPING (3X16)
$3.36¢1 679
1
