FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

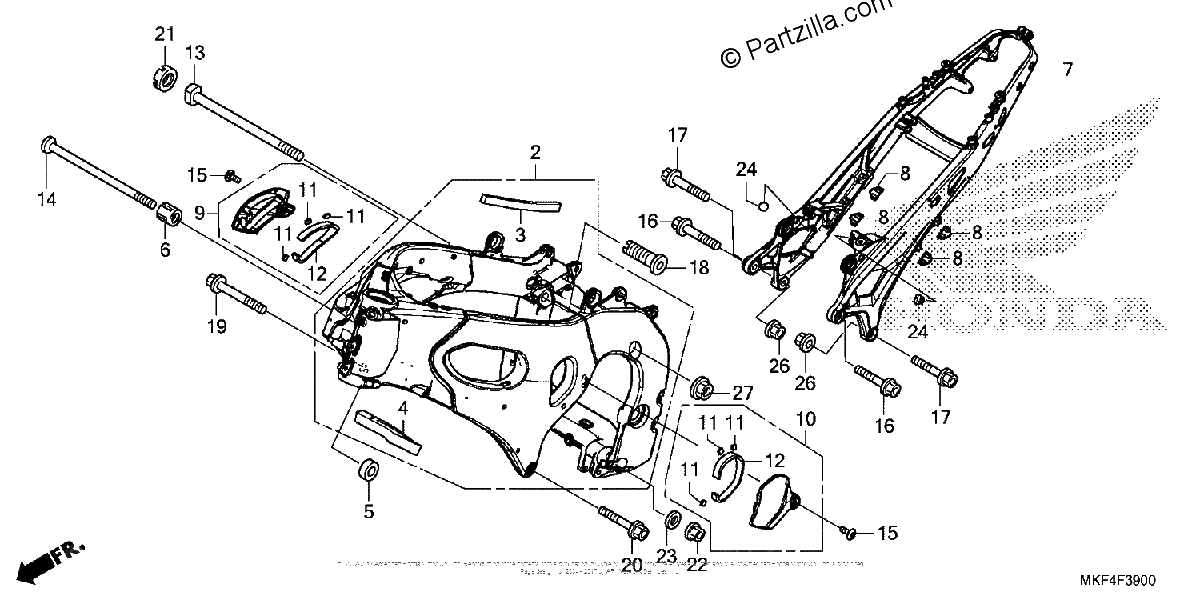

Diagrama de FRAME

Repuestos

#2
50010-MKF-A20ZB
FRAME SET *NH460M*(OMEGA SILVER METALLIC)
$3353.21¢1 676 606
1
#3
50132-MFJ-J00
MAT A, PIVOT BRACKET
$3.08¢1 538
1
#4
50133-MFJ-J00
MAT B, PIVOT BRACKET
$3.04¢1 519
1
#5
50193-MKF-D40
COLLAR A, ENGINE HANGER
$9.88¢4 938
1
#6
50194-MFL-000
COLLAR C, ENGINE HANGER
$26.66¢13 331
1
#7
50200-MKF-D60ZA
RAIL ASSY., SEAT *NH460M*(OMEGA SILVER METALLIC)
$1085.92¢542 963
1
#8
50221-MKF-D60
COVER, SEAT RAIL
$3.08¢1 538
1
#9
83215-MKF-D60ZA
COVER, R. FRAME SIDE *NHB73M*(MAT ALPHA SILVER METALLIC)
$75.43¢37 713
1
#10
83265-MKF-D60ZA
COVER, L. FRAME SIDE *NHB73M*(MAT ALPHA SILVER METALLIC)
$75.43¢37 713
1
#11
83266-MKF-D40
RUBBER, PROTECTOR
$2.52¢1 263
1
#12
83640-MGE-700
URETHANE, R. HEAT GUARD
$2.41¢1 206
1
#13
90101-MFL-000
BOLT, SPECIAL (12X261.5)
$17.44¢8 719
1
#14
90102-MFL-000
BOLT, SPECIAL (12X269.5)
$28.20¢14 100
1
#15
90106-MBL-610
SCREW, SPECIAL (6MM)
$2.88¢1 438
1
#16
90109-MFL-000
BOLT, FLANGE (10X29)
$8.66¢4 331
1
#17
90110-MFL-000
BOLT, FLANGE (10X33.5)
$8.66¢4 331
1
#18
90152-MFL-000
BOLT, ADJUSTING (20X1.0X49.5)
$19.42¢9 712
1
#19
90163-MFL-D20
BOLT, FLANGE (12X50)
$5.39¢2 694
1
#20
90164-MFL-D20
BOLT, FLANGE (12X45)
$5.39¢2 694
1
#21
90303-MFJ-D00
NUT, LOCK (20MM) (P=1.0)
$8.77¢4 387
1
#22
90371-MFL-000
NUT, FLANGE (12MM)
$2.24¢1 119
1
#23
90439-SB2-010
WASHER, SPECIAL (24X12X2.3)
$18.69¢9 344
1
#24
90572-KV3-300
RUBBER, SEPARATOR MOUNTING
$5.20¢2 600
1
#26
94050-10000
NUT, FLANGE (10MM)
$1.90¢950
1
#27
94050-12000
NUT, FLANGE (12MM)
$1.27¢638
1
