TAILLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

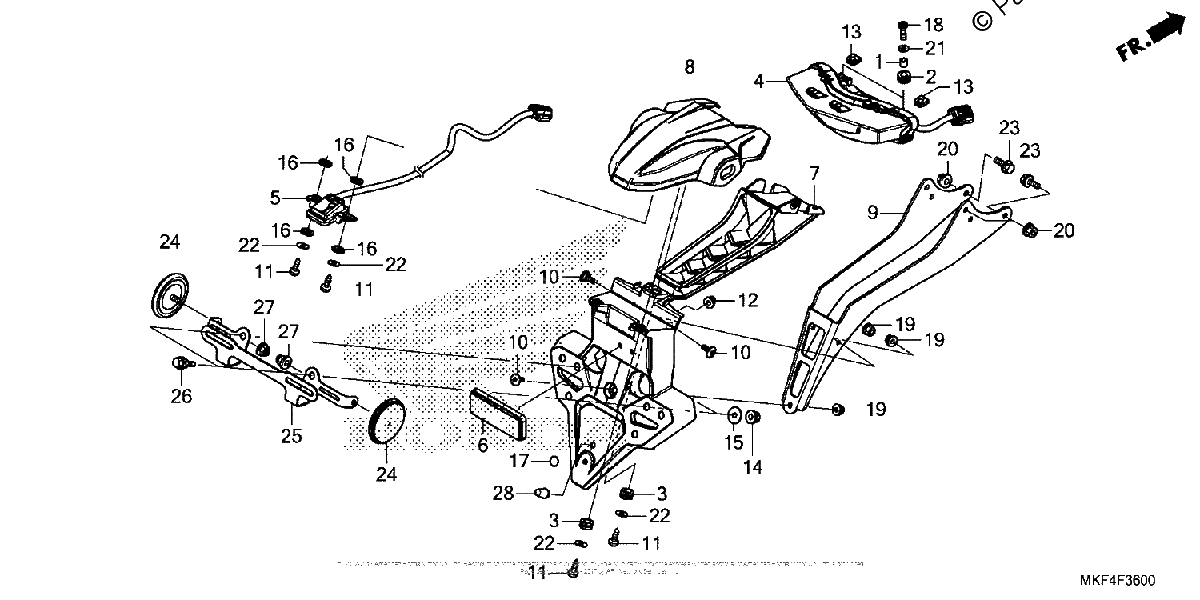

Diagrama de TAILLIGHT

Repuestos

#1
18295-GW0-920
COLLAR (5MM)
$3.65¢1 825
1
#2
19639-GBC-000
RUBBER, MOUNTING
$1.80¢900
1
#3
19639-GBL-000
RUBBER, MOUNTING
$1.38¢688
1
#4
33701-MKF-A01
TAILLIGHT UNIT
$538.73¢269 363
1
#5
33720-MKF-D41
LIGHT ASSY., LICENSE
$113.77¢56 887
1
#6
33741-MS6-921
REFLECTOR, REFLEX (STANLEY)
$17.73¢8 863
1
#7
80100-MKF-A20
FENDER A, RR.
$79.04¢39 519
1
#8
80107-MKF-D40
COVER, LICENSE LIGHT
$17.02¢8 513
1
#9
80115-MKF-D40
STAY, RR. FENDER A
$240.47¢120 238
1
#10
90102-MKA-D80
SCREW, SPECIAL (5X14)
$3.65¢1 825
1
#11
90112-MKA-D80
SCREW, TAPPING (4X16)
$2.99¢1 494
1
#12
90301-MG8-000
NUT, FLANGE (5MM) (FUSE RASHI)
$6.00¢3 000
1
#13
90312-MT3-000
NUT, CLIP (5MM)
$5.55¢2 775
1
#14
94050-06070
NUT, FLANGE (6MM)
$1.86¢931
1
#15
94103-06700
WASHER, PLAIN (6MM)
$0.93¢463
1
#16
90514-K33-D00
WASHER, RUBBER (6MM)
$1.05¢525
1
#17
90852-446-630
PLUG, HOLE
$3.30¢1 650
1
#18
93500-05016-0G
SCREW, PAN (5X16)
$1.16¢581
1
#19
94050-05070
NUT, FLANGE (5MM)
$1.66¢831
1
#20
94050-06000
NUT, FLANGE (6MM)
$0.80¢400
1
#21
94101-05000
WASHER, PLAIN (5MM)
$1.27¢638
1
#22
94103-04700
WASHER, PLAIN (4MM)
$1.21¢606
1
#23
96300-06016-00
BOLT, FLANGE (6X16)
$1.21¢606
1
#24
33741-HB9-641
REFLECTOR, Rear REFLEX (RED)
$15.50¢7 750
1
#25
84700-MGE-672
BRACKET, NUMBER PLATE
$22.30¢11 150
1
#26
90111-187-000
BOLT, FLANGE (6MM)
$6.79¢3 394
1
#27
90301-473-003
NUT, U (6MM) (FUSE RASHI)
$4.94¢2 469
1
#28
90899-KL8-000
PLUG, CONE
$4.20¢2 100
1
