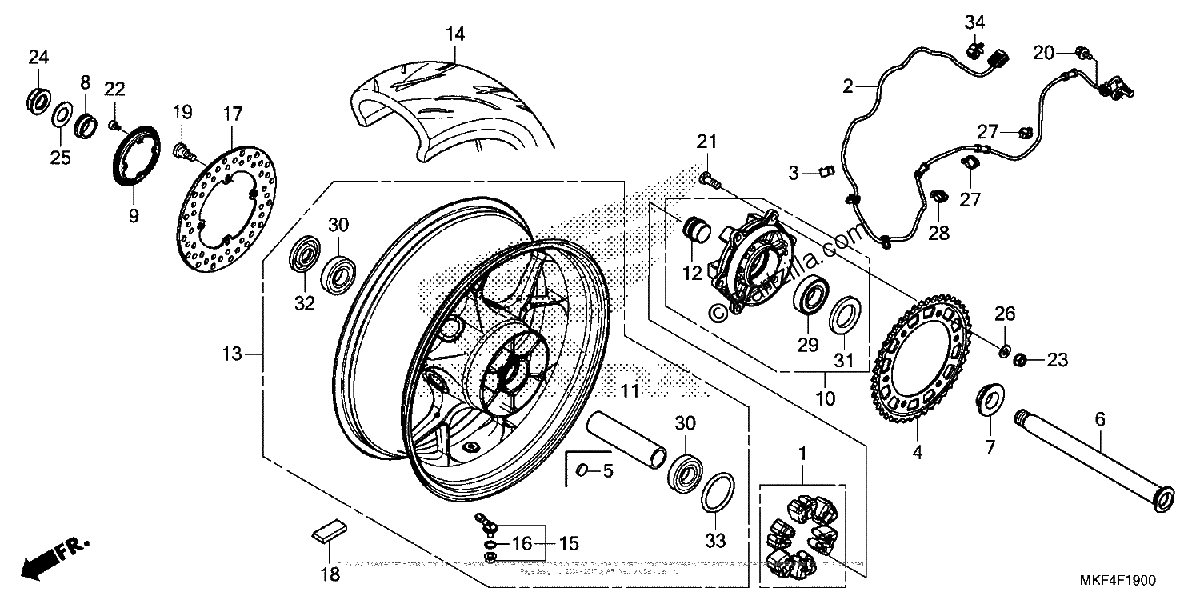

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
DAMPER SET, WHEEL
$58.91¢29 457
#2
SENSOR, RR. WHEEL SPEED
$223.23¢111 613
#3
CLAMP, ABS WIRE (D8.5)
$3.68¢1 840
#4
SPROCKET, FINAL DRIVEN (43T)
$91.60¢45 799
#6
AXLE, RR. WHEEL
$92.86¢46 431
#7
COLLAR, RR. WHEEL SIDE
$38.57¢19 286
#8
COLLAR, RR. BRAKE SIDE
$30.54¢15 272
#9
RING, RR. PULSER
$39.91¢19 953
#10
FLANGE SUB-ASSY., RR. DRIVEN
$248.95¢124 476
#11
COLLAR, RR. AXLE DISTANCE
$50.22¢25 110
#12
COLLAR B, RR. WHEEL DISTANCE
$29.20¢14 599
#13
WHEEL SUB-ASSY., RR. (TYPE3)
$1343.22¢671 612
#14
TIRE, RR. (190/50ZR17) (M/C 73W) (PIR)
$370.10¢185 052
#14
TIRE, RR. (190/50ZR17) (M/C 73W) (BS)
No Disponible
#15
VALVE ASSY., CLAMP IN
$17.71¢8 855
#16
O-RING
$1.81¢903
#17
DISK, RR. BRAKE
$310.84¢155 422
#18
WEIGHT, BALANCE (20G)
$6.22¢3 111
#18
WEIGHT, BALANCE (10G)
$5.22¢2 610
#18
WEIGHT, BALANCE (15G)
$6.22¢3 111
#19
BOLT, BRAKE DISK (8X24)
$4.47¢2 237
#20
BOLT, FLANGE (6X14)
$2.62¢1 311
#21
BOLT (10X28.5)
$4.57¢2 283
#22
BOLT, TORX (5X10)
$3.36¢1 679
#23
NUT, U (10MM)
$4.83¢2 415
#24
NUT, U FLANGE (24MM)
$25.22¢12 610
#25
WASHER (24.1X43X2.5)
$6.73¢3 364
#26
WASHER (10MM)
$3.32¢1 662
#27
CLIP, CABLE (14MM)
$2.09¢1 047
#28
CLIP, CABLE (14MM)
$2.09¢1 047
#29
BEARING, ANGULAR BALL (31X63X16) (FUJIKOSHI)
$66.87¢33 436
#30
BEARING, RADIAL BALL (60/28)
$19.99¢9 994
#31
DUST SEAL (40X63X7) (NOK)
$18.76¢9 378
#32
DUST SEAL (36X52X7) (NOK)
$11.67¢5 836
#33
O-RING (57X2) (ARAI)
$5.83¢2 915
