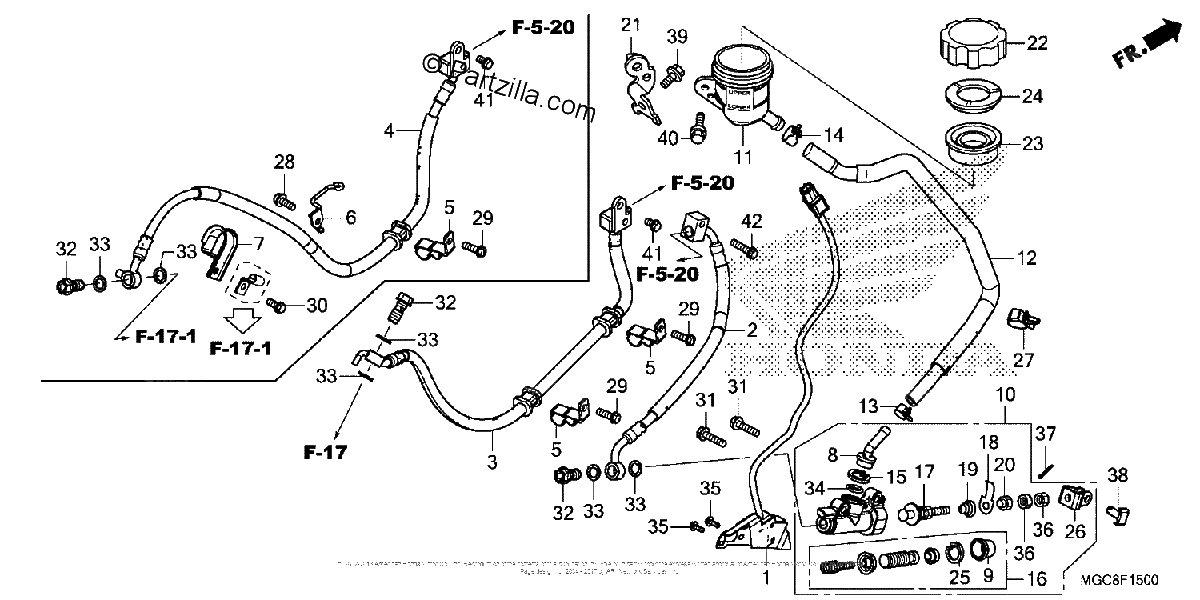

REAR BRAKE MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
SWITCH SET, RR. STOP
$65.48¢32 738
#2
HOSE A, RR. BRAKE
$58.44¢29 219
#4
HOSE B, RR. BRAKE
$97.25¢48 625
#5
CLAMP B, RR. BRAKE HOSE
$12.79¢6 394
#6
GUIDE, RR. BRAKE HOSE
$8.75¢4 375
#7
CLAMP B, RR. BRAKE HOSE
$13.27¢6 637
#8
CONNECTOR
$14.33¢7 163
#9
BOOT
$11.74¢5 869
#10
MASTER CYLINDER SUB-ASSY., RR. BRAKE (NISSIN)
$248.50¢124 250
#11
CUP, MASTER CYLINDER OIL
$29.00¢14 500
#12
HOSE, RR. BRAKE MASTER CYLINDER
$48.08¢24 038
#13
CLAMP, MASTER CYLINDER OIL HOSE
$15.24¢7 619
#14
CLAMP, MASTER CYLINDER OIL HOSE
$19.68¢9 838
#15
CIRCLIP, Rear MASTER CYLINDER
$4.63¢2 313
#16
PISTON SET, MASTER CYLINDER (NISSIN)
$53.99¢26 994
#17
ROD, PUSH (NISSIN)
$32.69¢16 344
#18
PLATE, SWITCH (NISSIN)
$5.65¢2 825
#19
SPRING, SWITCH
$1.38¢688
#20
NUT, SWITCH PLATE (NISSIN)
$5.31¢2 656
#21
STAY, OIL CUP
$7.99¢3 994
#22
CAP, OIL CUP
$21.39¢10 694
#23
DIAPHRAGM
$10.59¢5 294
#24
PLATE, DIAPHRAGM
$4.91¢2 456
#25
CIRCLIP
$2.50¢1 250
#26
JOINT, BRAKE ROD
$18.40¢9 200
#27
CLIP, CLUTCH HOSE
$3.73¢1 863
#28
BOLT, FLANGE SOCKET (6X16)
$3.33¢1 663
#29
BOLT, FLANGE (6X18)
$3.65¢1 825
#30
BOLT, FLANGE (6X10)
$1.74¢869
#31
BOLT, FLANGE (6X25)
$0.96¢481
#32
BOLT, OIL (10X22)
$8.89¢4 444
#33
WASHER, OIL BOLT
$4.85¢2 425
#34
O-RING (14.8X2.4)
$3.30¢1 650
#35
SCREW-WASHER (4X12)
$1.72¢862
#35
SCREW-WASHER (4X12)
$1.72¢862
#36
NUT, HEX. (8MM)
$1.60¢800
#37
PIN, SPLIT (2.0X12)
$1.27¢638
#38
PIN D, JOINT
$5.15¢2 575
#39
BOLT, FLANGE (6X10)
$2.09¢1 044
#40
BOLT, FLANGE (6X12)
$2.31¢1 156
#41
BOLT, FLANGE (6X12)
$2.31¢1 156
#42
BOLT, FLANGE (6X25)
$1.72¢862
