FUEL TANK FUEL PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

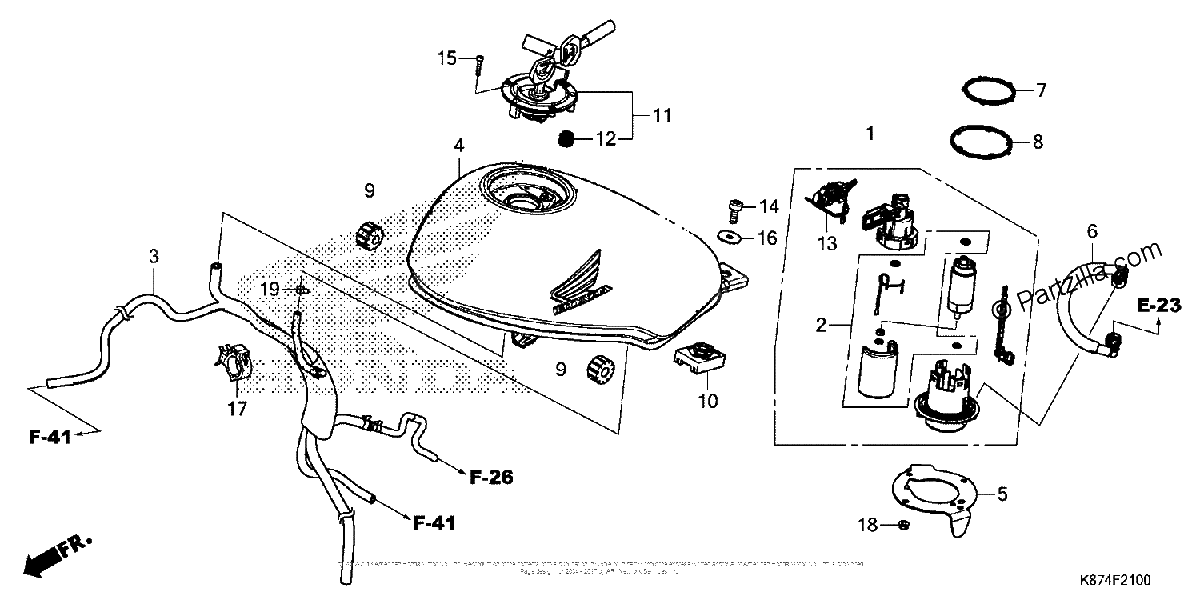

Diagrama de FUEL TANK FUEL PUMP

Repuestos

#1
16700-K87-A01
PUMP UNIT ASSY., FUEL (NIPPON SEIKI) (MSDS)
$165.64¢82 819
1
#2
16707-K45-N01
FILTER SET
$27.50¢13 750
1
#3
17417-K87-A00
TUBE ASSY.
$75.41¢37 706
1
#4
17520-K87-A00ZB
TANK SET, FUEL (TYPE4) (WL)
$873.71¢436 856
1
#4
17520-K87-A00ZC
TANK SET, FUEL (TYPE3) (WL)
$873.71¢436 856
1
#4
17520-K87-A00ZD
TANK SET, FUEL (TYPE2) (WL)
$873.71¢436 856
1
#4
17520-K87-A00ZE
TANK SET, FUEL (TYPE1) (WL)
$873.71¢436 856
1
#5
17526-K87-A00
PLATE, SETTING
$11.09¢5 544
1
#6
17570-K87-A01
HOSE, FUEL FEED
$42.14¢21 069
1
#7
17572-K26-900
GASKET, FUEL PUMP
$34.73¢17 363
1
#8
17573-KPN-A71
DUST SEAL
$14.63¢7 313
1
#9
17611-KPK-900
CUSHION, Front FUEL TANK
$2.66¢1 331
1
#10
17613-K87-A00
CUSHION, Rear FUEL TANK
$7.75¢3 875
1
#11
17620-KZZ-J01
CAP, FUEL FILLER
$256.21¢128 106
1
#12
17621-MGP-D61
SEAL, BREATHER
$6.23¢3 113
1
#13
37800-K87-A01
FUEL UNIT (NIPPON SEIKI)
$49.96¢24 981
1
#14
90116-MGZ-J00
BOLT, SOCKET (8X22)
$1.23¢613
1
#15
90120-MJE-D00
BOLT, SOCKET (4X25) (SUS)
$1.23¢613
1
#16
90325-KCC-900
WASHER, PLAIN (8MM)
$5.64¢2 819
1
#17
90690-GHB-671
CLIP, CABLE (25MM)
$2.81¢1 406
1
#18
94050-06000
NUT, FLANGE (6MM)
$0.80¢400
1
