MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

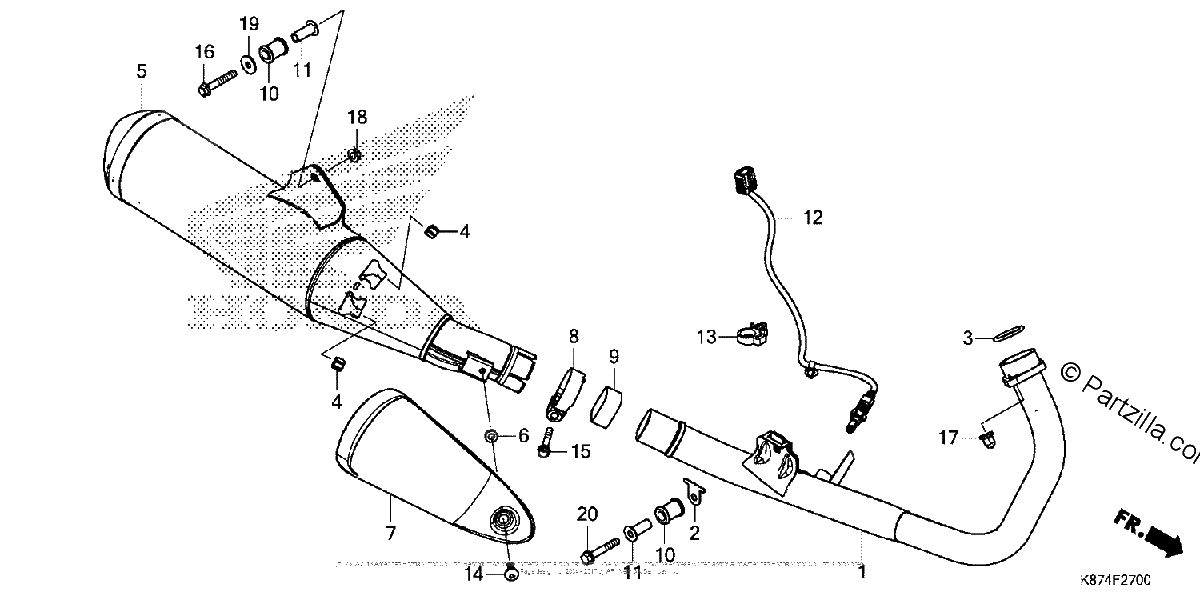

Diagrama de MUFFLER

Repuestos

#1
18150-K87-A00
PIPE, EX.
$183.24¢91 621
1
#2
18155-K87-A00
PLATE, EX.
$5.36¢2 680
1
#3
18291-MEB-670
GASKET, EX. PIPE
$5.49¢2 743
1
#4
18293-MCA-A20
RUBBER, PROTECTOR GASKET
$2.43¢1 213
1
#5
18310-K87-A00
MUFFLER
$771.50¢385 750
1
#6
18345-MBT-610
RUBBER, PROTECTOR MOUNTING
$2.59¢1 294
1
#7
18355-K87-A00
COVER, MUFFLER
$27.85¢13 926
1
#8
18376-MG7-000
BAND, L Rear MUFFLER
$28.96¢14 478
1
#9
18391-MJW-J01
GASKET, MUFFLER
$11.59¢5 796
1
#10
18421-MB0-000
RUBBER, MUFFLER MOUNTING
$7.07¢3 536
1
#11
18422-KAF-700
COLLAR, MUFFLER MOUNTING
$6.60¢3 301
1
#11
18422-MAL-600
COLLAR, MUFFLER MOUNTING
$6.60¢3 301
1
#12
36531-K87-A01
SENSOR, OXYGEN (NGK)
$148.33¢74 163
1
#13
53781-SE0-952
CLIP, RETURN HOSE
$8.97¢4 485
1
#14
90115-K87-A00
SCREW, PAN (6X12)
$1.30¢650
1
#15
90161-MCT-770
BOLT, FLANGE (8X40)
$2.62¢1 311
1
#16
90163-GHB-730
BOLT, FLANGE (8X50)
$0.94¢471
1
#17
90304-KPH-700
NUT, HEX CAP (8MM)
$2.01¢1 006
1
#18
94050-08070
NUT, FLANGE (8MM)
$1.77¢886
1
#19
94103-08700
WASHER, PLAIN (8MM)
$1.12¢558
1
#20
95701-08050-00
BOLT, FLANGE (8X50)
$2.69¢1 346
1
