HANDLE LEVER SWITCH CABLE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

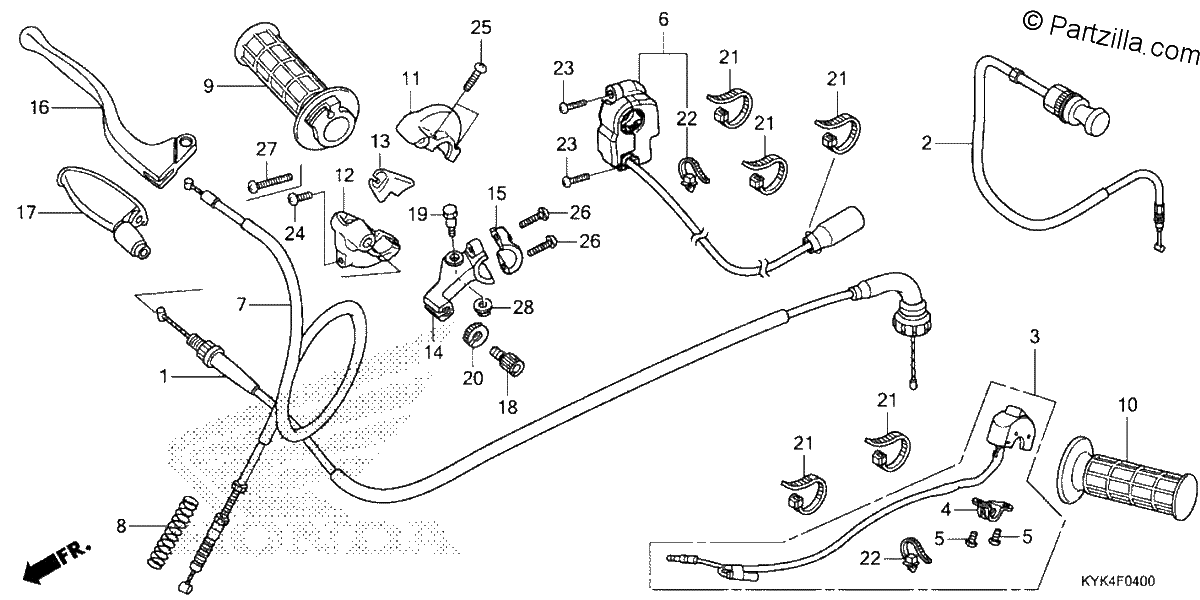

Diagrama de HANDLE LEVER SWITCH CABLE

Repuestos

#001
17920-KYK-305
CABLE SET, THROTTLE
$42.12¢21 062
1
#002
17950-KYK-911
CABLE, CHOKE
$44.53¢22 264
1
#003
35130-KYK-911
SWITCH ASSY., ENGINE STOP
$52.45¢26 226
1
#004
35132-KR5-013
PLATE, SETTING
$5.92¢2 961
1
#005
35133-KJ2-003
SCREW, PAN (4X12)
$2.83¢1 414
1
#006
35150-KYK-912
SWITCH ASSY., STARTER
$67.25¢33 626
1
#007
45450-KYK-911
CABLE, FR. BRAKE
$21.45¢10 724
1
#008
45454-KYK-910
SPRING, BRAKE CABLE
$5.37¢2 685
1
#009
53140-KYK-305
PIPE, THROTTLE GRIP (COO)
$14.13¢7 067
1
#010
53166-KYK-305
GRIP, L. HANDLE (COO)
$7.60¢3 801
1
#011
53167-KYK-910
HOUSING, THROTTLE (LOWER)
$31.97¢15 985
1
#012
53168-KYK-910
HOUSING, THROTTLE (UPPER)
$31.71¢15 853
1
#013
53169-KYK-910
SLIDER, THROTTLE
$8.13¢4 065
1
#014
53171-KYK-910
BRACKET, R. HANDLE LEVER
$24.49¢12 247
1
#015
53173-958-000
HOLDER, LEVER BRACKET
$11.30¢5 652
1
#016
53175-GCF-305
LEVER, R. HANDLEBAR (COO)
$41.19¢20 597
1
#017
53176-428-010
COVER, R. HANDLE LEVER
$10.80¢5 399
1
#018
53192-268-000
BOLT, WIRE ADJUSTING
$7.29¢3 645
1
#019
90113-429-770
BOLT, HANDLE LEVER PIVOT
$6.64¢3 318
1
#020
90321-315-670
NUT, FIXING
$8.15¢4 077
1
#021
90650-KW3-000
BAND, WIRE
$4.99¢2 496
1
#022
91540-STK-003
CLIP, HARNESS BAND (155.3MM) (BLACK)
$4.20¢2 099
1
#023
93500-04014-0G
SCREW, PAN (4X14)
$0.86¢431
1
#024
93500-05010-0G
SCREW, PAN (5X10)
$1.07¢535
1
#025
93500-05016-0G
SCREW, PAN (5X16)
$1.07¢535
1
#026
93500-05018-0A
SCREW, PAN (5X18)
$0.98¢489
1
#027
93500-05040-0G
SCREW, PAN (5X40)
$1.15¢575
1
#028
94050-06000
NUT, FLANGE (6MM)
$0.74¢368
1
