SWITCH CABLE MIRROR 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

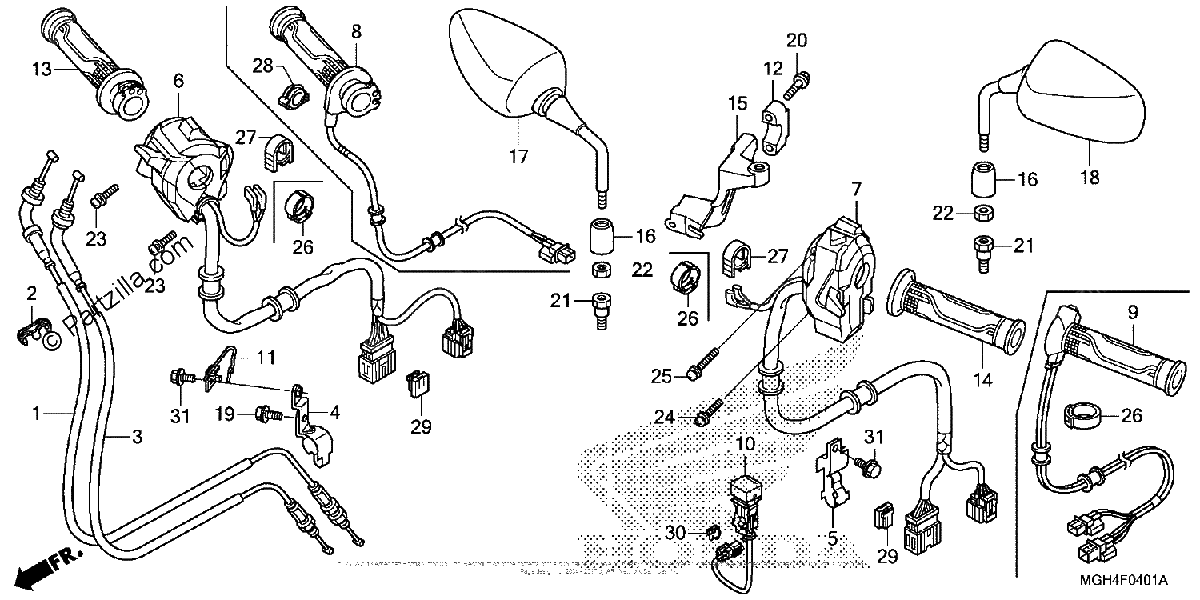

Diagrama de SWITCH CABLE MIRROR 2

Repuestos

#1
17910-MGH-D21
CABLE A, THROTTLE
$38.46¢19 231
1
#2
17915-MET-641
CLIP, THROTTLE WIRE
$3.71¢1 856
1
#3
17920-MGH-D21
CABLE B, THROTTLE
$38.46¢19 231
1
#4
35107-MGH-640
CLAMP, R. WIRE
$8.40¢4 200
1
#5
35108-MGH-640
CLAMP, L. WIRE
$5.76¢2 881
1
#6
35130-MGH-H31
SWITCH ASSY., ENGINE STOP D-N MODE
$201.95¢100 975
1
#7
35200-MGH-H31
SWITCH ASSY., TURN SIGNAL HAND SHIFT
No Disponible
1
#10
38640-MGH-H21
SWITCH ASSY., TORQUE CONTROL
$67.47¢33 738
1
#11
50161-MGH-D20
GUIDE, THROTTLE CABLE
$27.27¢13 638
1
#12
53131-KTA-910
HOLDER (UPPER)
$9.24¢4 619
1
#13
53140-MGE-000
GRIP ASSY., THROTTLE
$34.21¢17 106
1
#13
53140-MGE-305
GRIP ASSY., THROTTLE (COO)
$34.21¢17 106
1
#14
53166-MGE-000
GRIP, L. HANDLE
$20.60¢10 300
1
#14
53166-MGE-305
GRIP, L. HANDLE (COO)
$20.60¢10 300
1
#15
53192-MGH-D20
HOLDER, L. MIRROR
$74.20¢37 100
1
#16
88130-MGH-640
COVER, LOCK NUT
$10.67¢5 337
1
#17
88210-MGH-640
MIRROR, R.
$216.60¢108 300
1
#18
88220-MGH-D20
MIRROR, L.
$216.60¢108 300
1
#19
90013-GHB-610
BOLT, FLANGE (6X12)
$2.99¢1 494
1
#20
90013-GHB-670
BOLT, FLANGE (6X25)
$2.99¢1 494
1
#21
90105-MGH-640
BOLT, ADAPTER (10MM)
$6.05¢3 025
1
#22
90301-MGH-640
NUT A, HEX. (12MM) (LEFT HAND THREAD)
$6.79¢3 394
1
#23
90507-MGE-640
SCREW-WASHER (5X20)
$1.85¢925
1
#24
90508-MGE-D00
SCREW-WASHER (5X25)
$1.66¢831
1
#25
90509-MGE-D00
SCREW-WASHER (5X30)
$1.82¢913
1
#27
90683-ZX2-003
CLIP, WIRE HARNESS
$7.75¢3 875
1
#29
91554-SM4-003
HOLDER, BRACKET (RED)
$10.06¢5 031
1
#30
91565-S0X-003
CLIP, CONNECTOR (DARK GREEN)
$4.68¢2 338
1
#31
96001-06010-07
BOLT, FLANGE (6X10)
$2.09¢1 044
1
