PARKING BRAKE LEVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

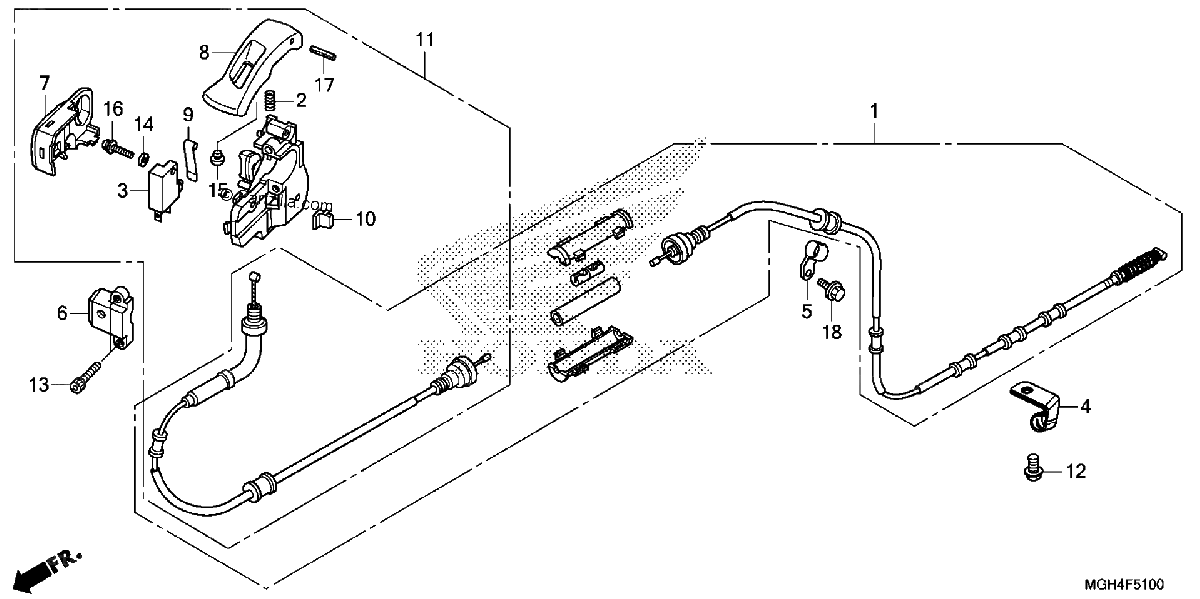

Diagrama de PARKING BRAKE LEVER

Repuestos

#1
06430-MGH-H30
CABLE KIT, PARKING
$131.15¢65 575
1
#2
24271-743-000
SPRING, BALL SETTING
$2.92¢1 463
1
#3
35340-HR0-305
SWITCH ASSY., FR. STOP (COO)
$20.82¢10 413
1
#3
35340-ML4-005
SWITCH ASSY., FR. STOP (OMRON)
$20.82¢10 413
1
#4
43451-MGH-H30
CLAMP, PARKING BRAKE
$7.99¢3 994
1
#5
43459-MGE-D00
CLAMP, PARKING CABLE
$7.13¢3 563
1
#6
47111-MGE-D00
HOLDER (UPPER)
$35.74¢17 869
1
#7
47117-MGE-D00
COVER, HOLDER
$4.33¢2 163
1
#8
47152-MGE-D00
LEVER, PARKING TOP
$8.84¢4 419
1
#9
47154-MGE-D00
SPRING, SWITCH
$10.94¢5 469
1
#10
47156-MGE-D00
CAP, HOLDER (LOWER)
$2.97¢1 487
1
#11
47205-MGH-D20
LEVER ASSY., PARKING
$481.54¢240 769
1
#12
90106-MBZ-G00
BOLT, FLANGE (6X10)
$1.74¢869
1
#13
90116-MGE-D00
BOLT, SOCKET (5X20)
$4.30¢2 150
1
#14
90515-046-810
WASHER, PLAIN (4X8)
$1.60¢800
1
#14
90515-GN5-910
WASHER, PLAIN (4X8)
$1.60¢800
1
#15
90801-SB0-000
PLUG, CHANGE REINFORCEMENT
$4.65¢2 325
1
#16
93892-04014-07
SCREW-WASHER (4X14)
$1.27¢638
1
#17
94305-30283
PIN, SPRING (3X28)
$1.95¢975
1
#18
95701-06012-07
BOLT, FLANGE (6X12)
$2.09¢1 044
1
