FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

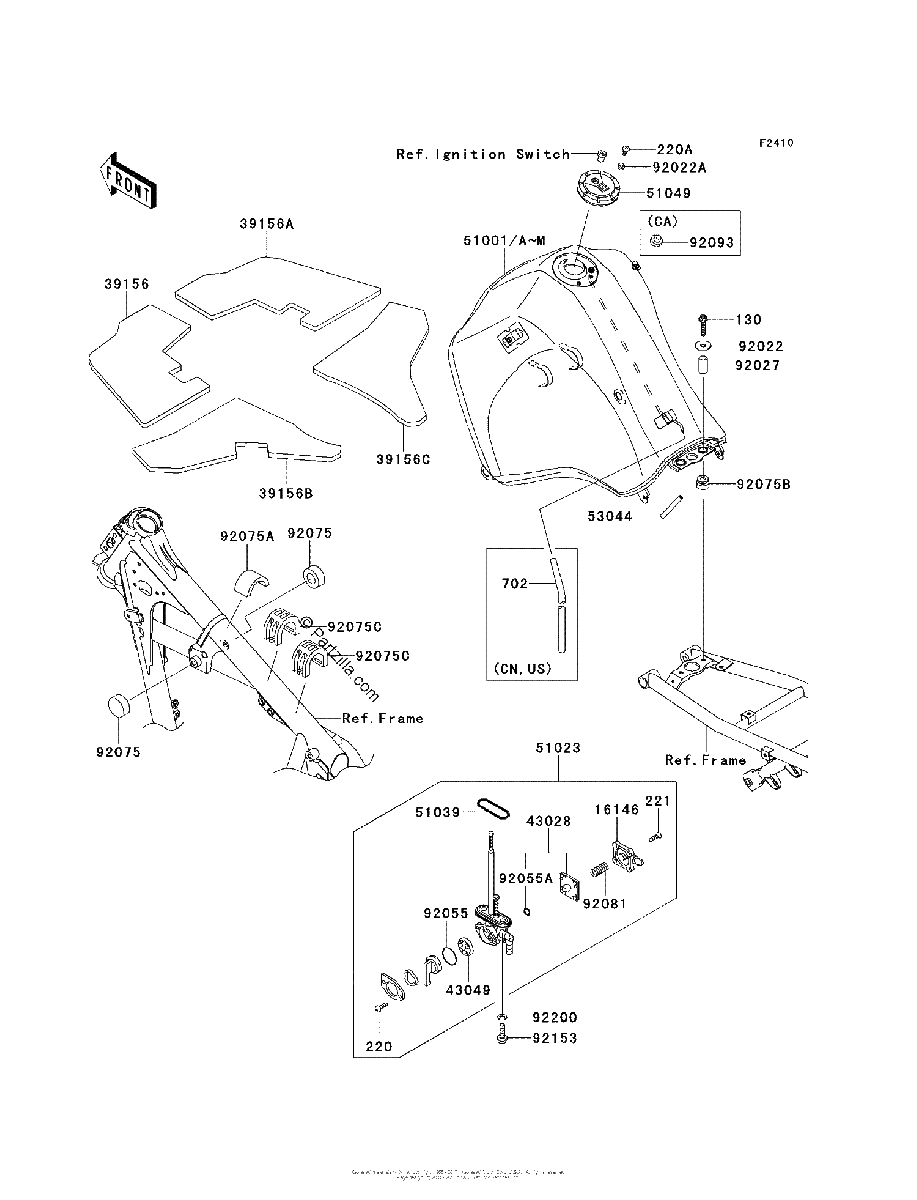

Diagrama de FUEL TANK

Repuestos

#130
130BB0630
BOLT FLANGED,6X30
$4.40¢2 200
1
#220
220AA0308
SCREW PAN CROS,3X8
$0.70¢350
1
#220A
220AA0510
SCREW-PAN-CROS,5X10
$0.84¢419
1
#221
221AA0414
SCREW CSK CROS,4X14
$3.79¢1 894
1
#702
702A05620
TUBE RUBBER,5X8X620
$35.00¢17 500
1
#16146
16146-1010
COVER-ASSY,TAP DIAPHRAGM
$27.84¢13 919
1
#39156
39156-0620
PAD,FUEL TANK,FR,LH
$42.26¢21 131
1
#39156A
39156-0621
PAD,FUEL TANK,CNT,RH
$42.26¢21 131
1
#39156B
39156-0622
PAD,FUEL TANK,Rear,Left Hand
$42.26¢21 131
1
#39156C
39156-0623
PAD,FUEL TANK,LWR,RH
$42.26¢21 131
1
#43028
43028-1033
DIAPHRAGM
$24.10¢12 050
1
#43049
43049-1103
PACKING
$5.64¢2 819
1
#51001M
51001-0368-35P
TANK COMP FUEL,C L GREEN
$1466.97¢733 488
1
#51001H
51001-0368-H8
TANK COMP FUEL,EBONY
$1439.19¢719 594
1
#51001
51001-0368-15G
TANK COMP FUEL,P S YELLOW
$1466.97¢733 488
1
#51001
51001-0368-H8
TANK COMP FUEL,EBONY
$1439.19¢719 594
1
#51001
51001-0368-G2
TANK COMP FUEL,C P RED
$1475.40¢737 700
1
#51001
51001-0368-35P
TANK COMP FUEL,C L GREEN
$1466.97¢733 488
1
#51001
51001-0368-35C
TANK COMP FUEL,M I BLUE
$1475.40¢737 700
1
#51001
51001-0368-25Y
TANK COMP FUEL,P S WHITE
$1466.97¢733 488
1
#51001
51001-0368-35B
TANK COMP FUEL,M F R GRAYSTONE
$1466.97¢733 488
1
#51001I
51001-0368-15G
TANK COMP FUEL,P S YELLOW
$1466.97¢733 488
1
#51001
51001-0367-15G
TANK COMP FUEL,P S YELLOW
$1466.97¢733 488
1
#51001B
51001-0367-15G
TANK COMP FUEL,P S YELLOW
$1466.97¢733 488
1
#51001A
51001-0367-H8
TANK-COMP-FUEL,EBONY | [CN,US]
$1439.19¢719 594
1
#51001
51001-0367-25Y
TANK COMP FUEL,P S WHITE
$1466.97¢733 488
1
#51001
51001-0367-35B
TANK COMP FUEL,M F R GRAYSTONE
$1439.19¢719 594
1
#51001
51001-0367-35C
TANK COMP FUEL,M I BLUE
$1475.40¢737 700
1
#51001F
51001-0367-35P
TANK COMP FUEL,C L GREEN
$1466.97¢733 488
1
#51001
51001-0367-35P
TANK COMP FUEL,C L GREEN
$1466.97¢733 488
1
#51001
51001-0367-G2
TANK COMP FUEL,C P RED
$1475.40¢737 700
1
#51001
51001-0367-H8
TANK-COMP-FUEL,EBONY | [CN,US]
$1439.19¢719 594
1
#51023
51023-0003
TAP-ASSY,FUEL
$137.19¢68 594
1
#51039
51039-003
RING,TAP FLANGED
$6.14¢3 069
1
#51049
51049-0047
CAP-TANK,FUEL
No Disponible
1
#53044
53044-1249
TRIM,L=60
$6.69¢3 344
1
#92022A
92022-1977
WASHER,5.1X10X1.0
$3.60¢1 800
1
#92022
92022-125
WASHER,6.5X20X1.6
$1.41¢706
1
#92027
92027-1856
COLLAR,6.8X10X20
$6.14¢3 069
1
#92055A
92055-1664
RING O
$4.96¢2 481
1
#92055
92055-1085
RING O,TAP LEVER
$5.01¢2 506
1
#92075A
92075-1507
DAMPER
$11.61¢5 806
1
#92075B
92075-1660
DAMPER
$8.05¢4 025
1
#92075C
92075-1862
DAMPER,FUEL TANK
No Disponible
1
#92075
92075-101
DAMPER,FUEL TANK
$6.09¢3 044
1
#92081
92081-1240
SPRING,TAP DIAPHRAGM
$3.88¢1 938
1
#92093
92093-1030
SEAL,FUEL TANK CAP
$7.72¢3 863
1
#92153
92153-0746
BOLT,FLANGED,6X20
$2.10¢1 050
1
#92200
92200-0117
WASHER,6.5X11.5X0.8
$2.41¢1 206
1
