SPEEDOMETER NAVIGATION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

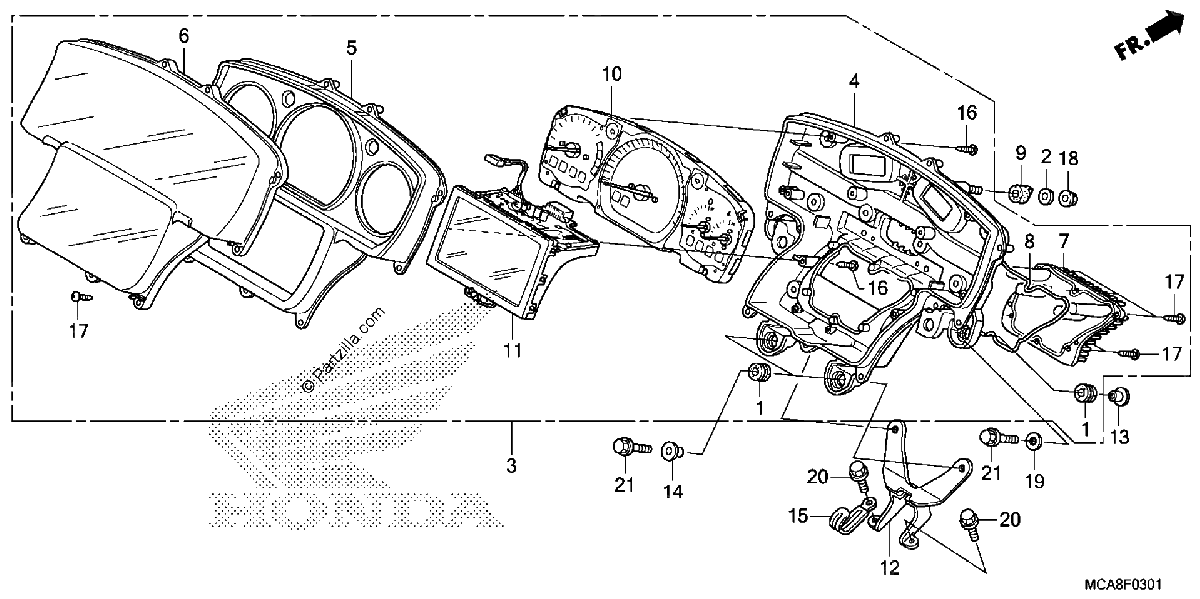

Diagrama de SPEEDOMETER NAVIGATION

Repuestos

#001
17251-KE8-690
GROMMET, AIR CLEANER HOUSING
$3.34¢1 669
1
#1
17251-KE8-690
GROMMET, AIR CLEANER HOUSING
$3.34¢1 669
1
#2
17936-921-000
WASHER, PIVOT
$1.60¢800
1
#002
17936-921-000
WASHER, PIVOT
$1.60¢800
1
#003
37100-MCA-306
METER ASSY., COMBINATION (MPH/KPH)(COO)
$6501.44¢3 250 719
1
#3
37100-MCA-306
METER ASSY., COMBINATION (MPH/KPH)(COO)
$6501.44¢3 250 719
1
#3
37100-MCA-307
METER ASSY., COMBINATION (MPH/KPH)(COO)
$6501.44¢3 250 719
1
#004
37101-MCA-A81
CASE ASSY. (LOWER)
$283.01¢141 506
1
#4
37101-MCA-A81
CASE ASSY. (LOWER)
$283.01¢141 506
1
#005
37102-MCA-H31
PLATE ASSY., REFLECTING
$147.03¢73 513
1
#5
37102-MCA-H31
PLATE ASSY., REFLECTING
$147.03¢73 513
1
#006
37103-MCA-H31
LENS
$227.53¢113 763
1
#006
37103-MCA-305
LENS (COO)
$227.53¢113 763
1
#6
37103-MCA-305
LENS (COO)
$227.53¢113 763
1
#007
37104-MCA-H31
HEAT SINK
$196.41¢98 206
1
#7
37104-MCA-H31
HEAT SINK
$196.41¢98 206
1
#8
37105-MCA-H31
GASKET
$6.50¢3 250
1
#008
37105-MCA-H31
GASKET
$6.50¢3 250
1
#9
37109-MBG-000
RUBBER, METER SETTING
$3.01¢1 506
1
#009
37109-MBG-000
RUBBER, METER SETTING
$3.01¢1 506
1
#10
37110-MCA-306
METER, COMBINATION (COO)
$1200.39¢600 194
1
#010
37110-MCA-306
METER, COMBINATION (COO)
$1200.39¢600 194
1
#10
37110-MCA-307
METER, COMBINATION (COO)
$1123.11¢561 556
1
#011
37230-MCA-S82
LCD Assembly., COLOR
$4759.35¢2 379 675
1
#11
37230-MCA-306
OR USE TL CONNECT TO ORDER)
$4759.35¢2 379 675
1
#011
37230-MCA-306
OR USE TL CONNECT TO ORDER)
$4759.35¢2 379 675
1
#012
53133-MCA-A61
STAY, METER MOUNTING
$18.88¢9 438
1
#12
53133-MCA-A61
STAY, METER MOUNTING
$18.88¢9 438
1
#13
90509-750-000
COLLAR, FUEL TANK
$5.10¢2 550
1
#013
90509-750-000
COLLAR, FUEL TANK
$5.10¢2 550
1
#014
90522-KF0-000
COLLAR, SIDE COVER SETTING
$5.42¢2 713
1
#14
90522-KF0-000
COLLAR, SIDE COVER SETTING
$5.42¢2 713
1
#015
91406-166-000
CLIP, WIRE
$5.16¢2 581
1
#15
91406-166-000
CLIP, WIRE
$5.16¢2 581
1
#016
93903-22420
SCREW, TAPPING (3X16)
$1.27¢638
1
#16
93903-22420
SCREW, TAPPING (3X16)
$1.27¢638
1
#17
93903-24420
SCREW, TAPPING (4X16)
$1.16¢581
1
#017
93903-24420
SCREW, TAPPING (4X16)
$1.16¢581
1
#18
94050-06080
NUT, FLANGE (6MM)
$0.80¢400
1
#018
94050-06080
NUT, FLANGE (6MM)
$0.80¢400
1
#019
94103-06000
WASHER, PLAIN (6MM)
$1.27¢638
1
#19
94103-06000
WASHER, PLAIN (6MM)
$1.27¢638
1
#20
96001-06010-07
BOLT, FLANGE (6X10)
$2.09¢1 044
1
#020
96001-06010-07
BOLT, FLANGE (6X10)
$2.09¢1 044
1
#021
96001-06020-00
BOLT, FLANGE (6X20)
$1.60¢800
1
#21
96001-06020-00
BOLT, FLANGE (6X20)
$1.60¢800
1
