AIR CLEANER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

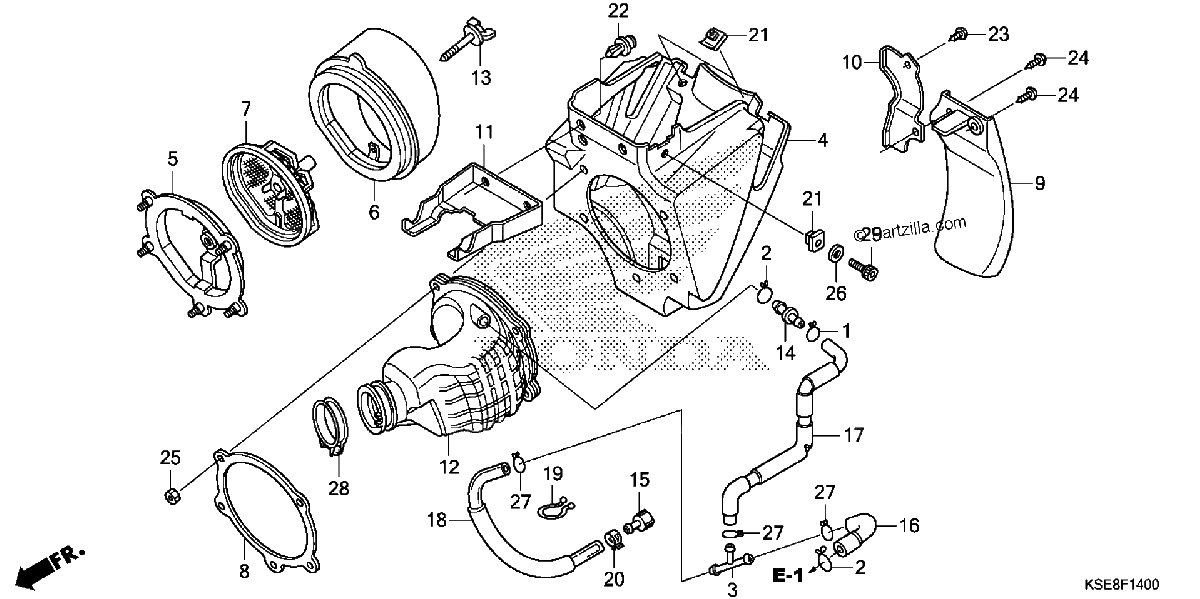

Diagrama de AIR CLEANER

Repuestos

#1
15707-634-000
CLIP, OIL DRAIN TUBE
$5.73¢2 864
1
#2
15771-551-000
CLIP, OIL DRAIN TUBE
$10.17¢5 083
1
#3
16959-MY1-000
JOINT, FUEL TUBE
$18.99¢9 493
1
#4
17210-KSE-000
HOUSING, AIR CLEANER
$223.10¢111 550
1
#5
17212-KSE-000
STAY, AIR CLEANER ELEMENT
$74.43¢37 214
1
#6
17213-KSE-000
ELEMENT, AIR CLEANER
$43.70¢21 850
1
#7
17214-KSE-000
BASE ASSY., ELEMENT
$45.71¢22 856
1
#8
17217-KSE-000
PLATE, FR. CASE
$17.51¢8 757
1
#9
17220-KSE-000
SPLASH GUARD, AIR CLEANER
$37.83¢18 917
1
#10
17221-KSE-000
GUARD, AIR CLEANER
$5.83¢2 915
1
#11
17223-KSE-000
VISOR, AIR CLEANER HOUSING
$8.08¢4 042
1
#12
17253-KSE-000
TUBE, AIR CLEANER CONNECTING
$60.82¢30 412
1
#13
17291-GBF-830
BOLT, ELEMENT SETTING
$14.97¢7 486
1
#14
17359-MAG-L00
JOINT, BREATHER TUBE
$5.88¢2 938
1
#15
17370-419-700
PLUG, BREATHER TUBE
$4.17¢2 087
1
#16
17372-KSE-000
TUBE A, BREATHER
$8.99¢4 497
1
#17
17373-KSE-000
TUBE B, BREATHER
$30.43¢15 215
1
#18
17375-KSE-000
TUBE C, BREATHER
$11.26¢5 629
1
#19
32171-GF9-621
LOCK, PURSE
$2.53¢1 265
1
#20
43514-KS6-701
CLAMP, MASTER CYLINDER OIL HOSE
$14.02¢7 009
1
#21
84601-HA7-670
NUT, FENDER SETTING
$6.18¢3 088
1
#22
90653-HC4-900
CLIP, SPLASH GUARD
$0.70¢351
1
#23
93913-15280
SCREW, TAPPING (5X12) (PO)
$1.02¢512
1
#24
93913-15410
SCREW, TAPPING (5X16) (PO)
$1.33¢667
1
#25
94002-05000-0S
NUT, HEX. (5MM)
$1.23¢615
1
#26
94101-06000
WASHER, PLAIN (6MM)
$0.77¢385
1
#26
94101-06080
WASHER, PLAIN (6MM)
$0.77¢385
1
#26
94101-06800
WASHER, PLAIN (6MM)
$0.77¢385
1
#27
95002-02120
CLIP, TUBE (B12)
$2.20¢1 098
1
#28
95018-52201
BAND, AIR CLEANER CONNECTING TUBE (52)
$8.34¢4 169
1
#29
96600-06014-00
BOLT, SOCKET (6X14)
$4.68¢2 340
1
