GEARSHIFT DRUM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

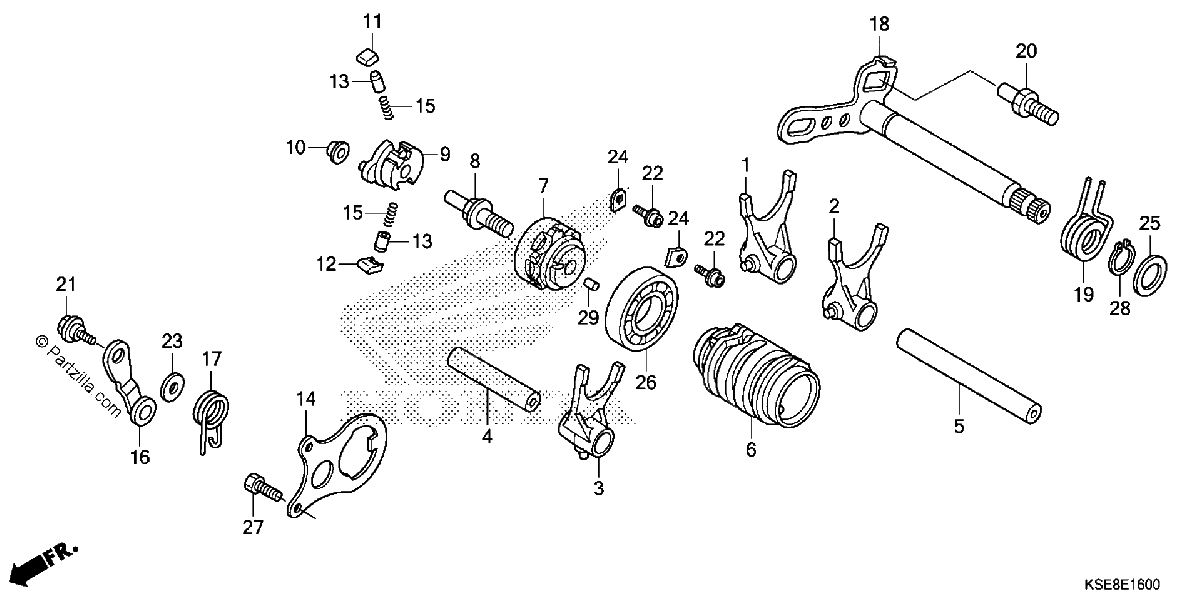

Diagrama de GEARSHIFT DRUM

Repuestos

#1
24211-KSE-670
FORK, R. GEARSHIFT
$77.69¢38 844
1
#2
24212-KSE-670
FORK, L. GEARSHIFT
$77.69¢38 844
1
#3
24213-KSE-670
FORK, CENTER GEARSHIFT
$73.26¢36 631
1
#4
24265-GC4-710
SHAFT, GEARSHIFT FORK MAIN
$24.80¢12 400
1
#5
24266-KSE-670
SHAFT C, SHIFT FORK
$19.51¢9 756
1
#6
24311-KSE-670
DRUM, GEARSHIFT
$93.36¢46 681
1
#7
24312-KA3-741
CENTER, GEARSHIFT DRUM
$75.19¢37 594
1
#8
24315-KA3-710
PIN, SHIFTER
$27.07¢13 538
1
#9
24321-KZ3-891
SHIFTER, GEARSHIFT DRUM
$69.40¢34 700
1
#10
24322-MM4-000
COLLAR, SHIFTER
$6.20¢3 100
1
#11
24324-KA3-711
PAWL A, RATCHET
$15.48¢7 738
1
#12
24325-KA3-711
PAWL B, RATCHET
$15.48¢7 738
1
#13
24326-KBH-901
PLUNGER, PAWL
$7.05¢3 525
1
#14
24328-GC4-730
PLATE, GUIDE
$25.20¢12 600
1
#15
24329-KA3-740
SPRING, PAWL PLUNGER
$3.65¢1 825
1
#16
24430-KA3-740
STOPPER, DRUM
$25.40¢12 700
1
#17
24435-KSE-670
SPRING, DRUM STOPPER
$3.65¢1 825
1
#18
24610-KSE-670
SPINDLE, GEARSHIFT
$93.59¢46 794
1
#19
24651-KSE-670
SPRING, SHIFT RETURN
$7.99¢3 994
1
#20
24652-HA0-000
PIN, GEARSHIFT RETURN SPRING
$9.95¢4 975
1
#21
90022-MG8-000
PIVOT, SHIFT DRUM STOPPER ARM
$3.20¢1 600
1
#22
90071-MF5-000
BOLT, FLANGE SOCKET (6X14)
$4.06¢2 031
1
#23
90435-HB3-000
WASHER (6.1MM)
$3.65¢1 825
1
#24
90441-KRM-840
PLATE, BEARING HOLDER
$0.78¢388
1
#25
90451-155-000
WASHER (14MM)
$4.59¢2 294
1
#26
91004-MT3-003
BEARING, RADIAL BALL (20X47X10.5)
$22.21¢11 106
1
#27
93301-06016-0A
BOLT, HEX. (6X16)
$1.89¢944
1
#28
94510-14000
CIRCLIP, OUTER (14MM)
$1.31¢656
1
#29
96220-40080
ROLLER (4X8)
$0.65¢325
1
