CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

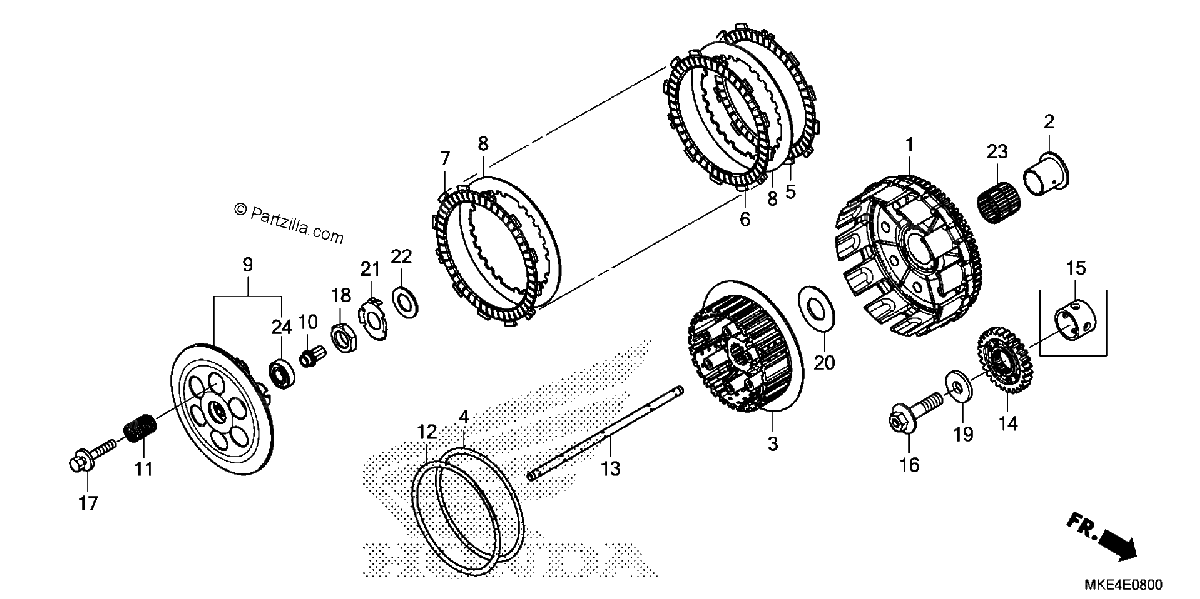

Diagrama de CLUTCH

Repuestos

#1
22100-MKE-A00
CLUTCH OUTER
$465.90¢232 950
1
#2
22106-KS7-000
COLLAR, CLUTCH (OUTER)
$28.14¢14 070
1
#3
22120-MKE-A00
CENTER, CLUTCH
$103.07¢51 537
1
#4
22125-MBN-670
SEAT, JUDDER SPRING
$9.04¢4 520
1
#5
22201-MBN-670
DISK, CLUTCH FRICTION
$21.59¢10 793
1
#6
22201-MEN-670
DISK B, CLUTCH FRICTION
$15.69¢7 843
1
#7
22201-MEN-A10
DISK, CLUTCH FRICTION
$16.33¢8 165
1
#8
22321-MKE-A00
PLATE B, CLUTCH
$14.54¢7 268
1
#9
22350-MKE-A00
PLATE, CLUTCH PRESSURE
$80.58¢40 290
1
#10
22352-MKE-A00
PIECE, CLUTCH LIFTER
$44.87¢22 437
1
#11
22401-MEN-A80
SPRING, CLUTCH
$5.30¢2 651
1
#12
22402-MBN-670
SPRING, JUDDER
$22.78¢11 391
1
#13
22850-MKE-A00
ROD, CLUTCH LIFTER
$72.16¢36 081
1
#14
23121-MKE-A00
GEAR, PRIMARY DRIVE (28T)
$86.97¢43 487
1
#16
90013-MEY-670
BOLT, SPECIAL (12X47)
$7.83¢3 916
1
#17
90024-MEN-A70
BOLT-WASHER (6X35)
$2.86¢1 432
1
#18
90235-MEN-A30
NUT (18MM)
$5.73¢2 864
1
#19
90402-KW6-960
WASHER, PLAIN (12MM)
$6.20¢3 099
1
#20
90421-MKE-A00
WASHER (23X48X2)
$8.22¢4 111
1
#21
90461-KZ3-J10
WASHER, LOCK (18MM)
$6.97¢3 484
1
#22
90501-ML3-910
WASHER (18X32X2)
$4.88¢2 438
1
#23
91021-ML3-003
BEARING, NEEDLE (28X32X27.2) (THOMPSON)
$19.23¢9 614
1
#24
96140-60010-00
BEARING, RADIAL BALL (6001)
$12.40¢6 198
1
