RADIATOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

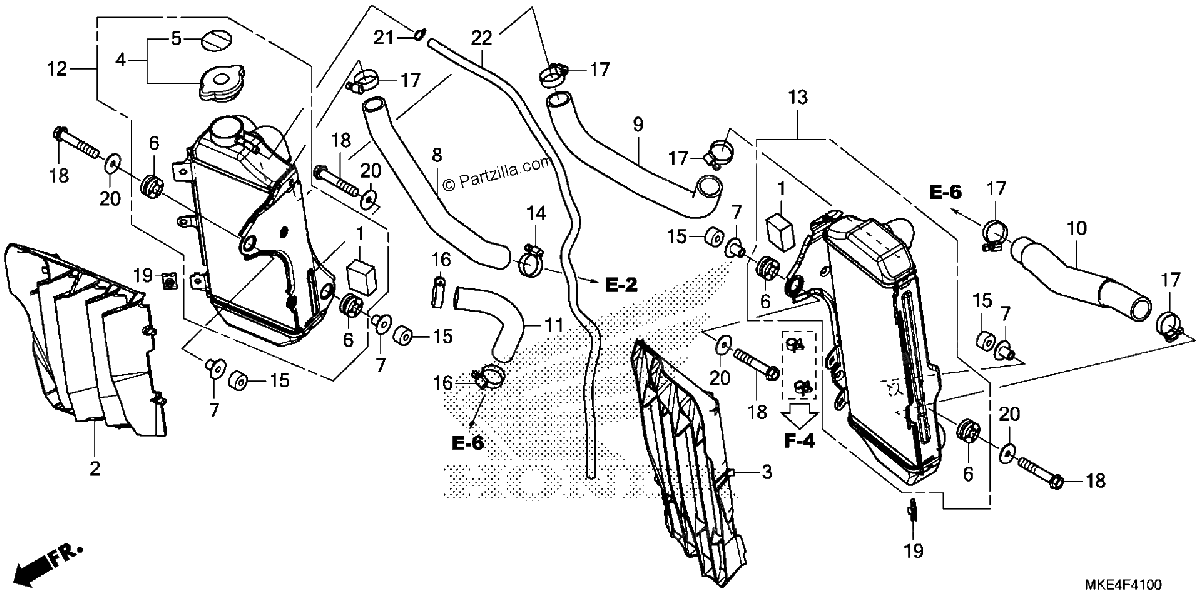

Diagrama de RADIATOR

Repuestos

#1
19021-MKE-A10
RUBBER, RADIATOR
$5.20¢2 600
1
#2
19033-MKE-A01
GRILLE, R. RADIATOR
$52.53¢26 263
1
#3
19034-MKE-A01
GRILLE, L. RADIATOR
$52.53¢26 263
1
#4
19037-GEE-710
CAP, RADIATOR
$35.16¢17 581
1
#5
19046-PAA-A00
LABEL, RADIATOR CAP
$3.65¢1 825
1
#6
19051-KA3-830
RUBBER, RADIATOR MOUNTING
$4.01¢2 006
1
#7
19052-MAC-680
COLLAR, RADIATOR MOUNTING
$6.23¢3 113
1
#8
19061-MKE-A10
HOSE A, WATER
$20.71¢10 356
1
#9
19062-MKE-A10
HOSE B, WATER
$22.41¢11 206
1
#10
19063-MKE-A10
HOSE C, WATER
$33.66¢16 831
1
#11
19064-MKE-A00
HOSE D, WATER
$11.60¢5 800
1
#12
19100-MKE-306
RADIATOR ASSY., R. (COO)
$401.48¢200 738
1
#13
19150-MKE-306
RADIATOR ASSY., L. (COO)
$401.45¢200 725
1
#14
19502-MKE-A00
CLAMP, WATER HOSE (D27)
$11.74¢5 869
1
#15
19502-MKE-A10
COLLAR, RADIATOR MOUNTING
$6.05¢3 025
1
#16
19504-KY1-003
CLAMP, WATER HOSE (25MM)
$12.04¢6 019
1
#17
19506-KS6-700
CLAMP B, WATER HOSE
$9.10¢4 550
1
#18
90023-MKE-A00
BOLT, FLANGE (6X35) (SH)
$3.66¢1 831
1
#19
90201-KPR-901
NUT, CLIP (6MM)
$2.40¢1 200
1
#20
90403-KA3-830
WASHER, RADIATOR MOUNTING
$3.04¢1 519
1
#21
95002-02080
CLIP, TUBE (B8)
$2.15¢1 075
1
#22
95003-14001-10M
BULK HOSE, VINYL (6X9X1000) (6X9X670)
$4.01¢2 006
1
