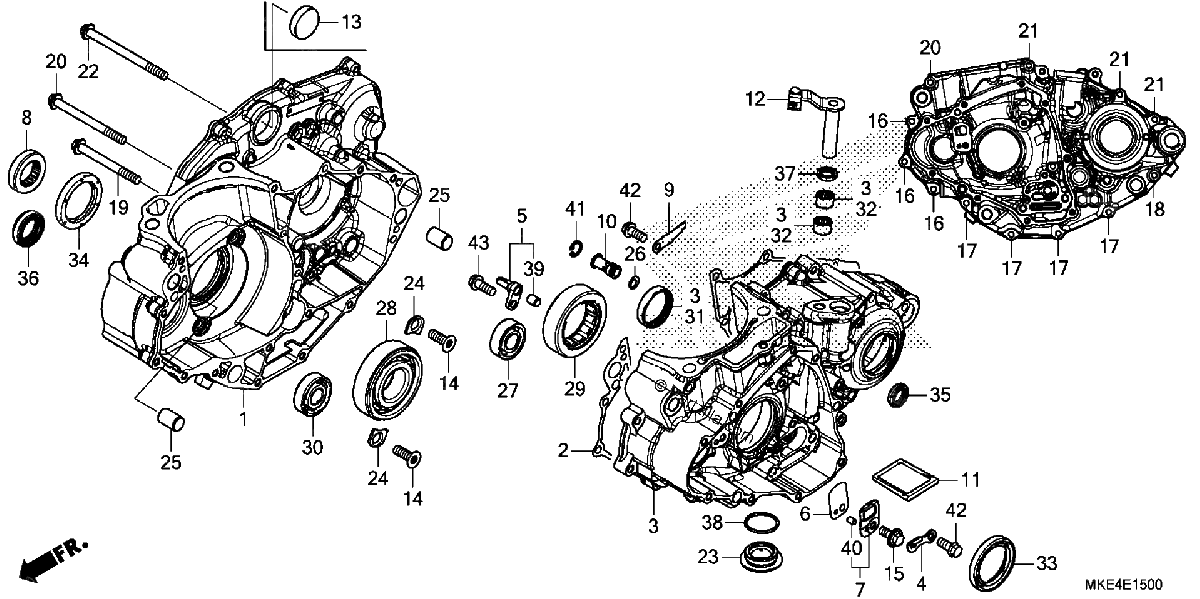

CRANKCASE
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
CRANKCASE, R.
$545.24¢272 619
#2
GASKET, CRANKCASE
$24.63¢12 313
#3
CRANKCASE, L.
$649.13¢324 563
#4
PLATE, CAM CHAIN GUIDE
$4.22¢2 113
#5
JET, PISTON
$34.30¢17 150
#6
VALVE, REED
$9.44¢4 719
#7
STOPPER, REED VALVE
$34.55¢17 275
#8
COLLAR, CRANKSHAFT
$39.49¢19 744
#9
PLATE, OIL GUIDE
$5.83¢2 913
#10
VALVE ASSY., RELIEF
$31.74¢15 869
#11
SCREEN, OIL FILTER
$13.53¢6 763
#12
LEVER, CLUTCH LIFTER
$69.86¢34 931
#14
SCREW, SPECIAL FLAT (6X17)
$2.31¢1 156
#15
BOLT-WASHER (6X14)
$3.05¢1 525
#16
BOLT, FLANGE (6X28) (LNSH)
$3.66¢1 831
#17
BOLT, FLANGE (6X40) (LNSH)
$3.66¢1 831
#18
BOLT, FLANGE (6X50) (LNSH)
$4.07¢2 037
#19
BOLT, FLANGE (6X60) (LNSH)
$4.07¢2 037
#20
BOLT, FLANGE (6X70) (LNSH)
$4.39¢2 194
#21
BOLT, FLANGE (6X75) (LNSH)
$2.68¢1 338
#22
BOLT, FLANGE (6X80) (LNSH)
$4.39¢2 194
#23
BOLT, DRAIN (30MM)
$22.05¢11 025
#24
PLATE, BEARING HOLDER
$4.36¢2 181
#25
PIN, DOWEL (14X20)
$5.35¢2 675
#26
O-RING (8.5X1.7)
$3.49¢1 744
#27
BEARING, RADIAL BALL SPECIAL (6202)
$12.98¢6 488
#28
BEARING, RADIAL BALL (30X72X19)
$72.66¢36 331
#29
BEARING, SPECIAL ROLLER (NTN)
$58.39¢29 194
#30
BEARING, RADIAL BALL (15X38X11)
$27.68¢13 838
#31
BEARING, SHELL (33X38X8) (NTN)
$20.74¢10 369
#32
BEARING, NEEDLE (12X16X10) (NTN)
No Disponible
#32
BEARING, NEEDLE (12X16X10)
$10.15¢5 075
#33
OIL SEAL (38X52X7) (ARAI)
$15.39¢7 694
#34
OIL SEAL (39X53X7)
$19.55¢9 775
#35
OIL SEAL (14X22X5) (NOK)
$4.63¢2 313
#36
OIL SEAL (22X33X7.5)
$9.59¢4 794
#37
OIL SEAL (12X18X3) (ARAI)
$4.19¢2 094
#38
O-RING (27X2) (ARAI)
$3.65¢1 825
#39
PIN, DOWEL (8X10)
$2.89¢1 444
#40
PIN C, DOWEL (4X6.5)
$2.75¢1 375
#41
CIRCLIP, INNER (14MM)
$1.19¢594
#42
BOLT, FLANGE (6X14)
$2.31¢1 156
#43
BOLT, FLANGE (6X16)
$1.35¢675
