SEAT SIDE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

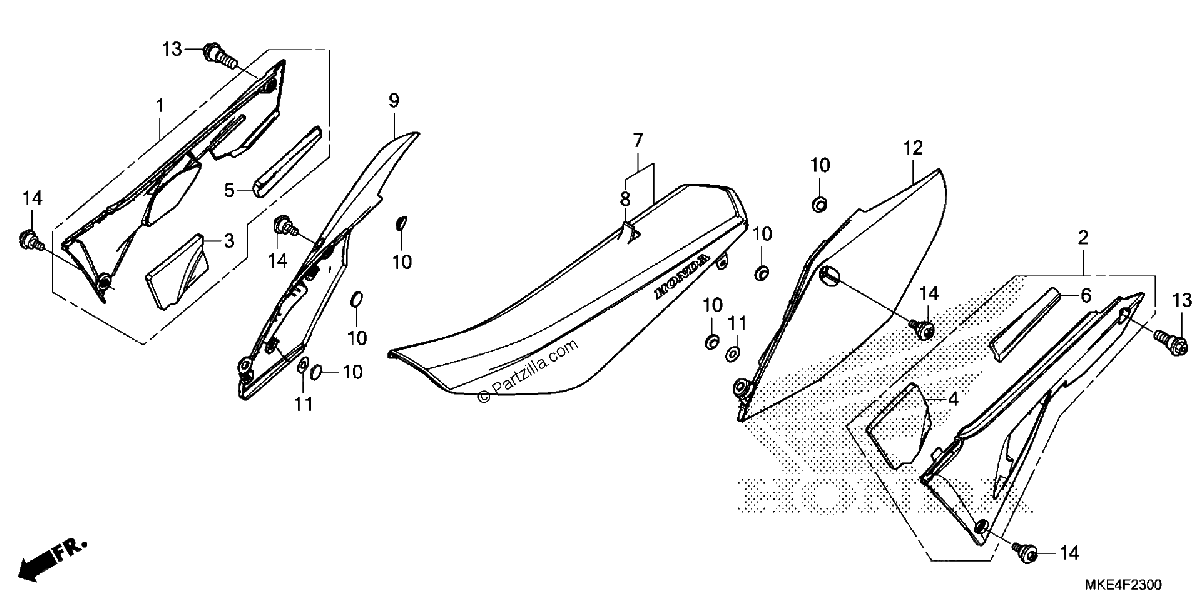

Diagrama de SEAT SIDE COVER

Repuestos

#1
17231-MKE-A00ZA
COVER, R. AIR CLEANER BOX *R292R*(EXTREME RED)
$55.94¢27 969
1
#2
17232-MKE-A00ZA
COVER, L. AIR CLEANER BOX *R292R*(EXTREME RED)
$55.94¢27 969
1
#3
17233-MKE-A00
MAT A, R. AIR CLEANER BOX COVER
$12.41¢6 206
1
#4
17234-MKE-A00
MAT A, L. AIR CLEANER BOX COVER
$12.41¢6 206
1
#5
17235-MKE-A00
MAT B, R. AIR CLEANER BOX COVER
$9.53¢4 763
1
#6
17236-MKE-A00
MAT B, L. AIR CLEANER BOX COVER
$9.53¢4 763
1
#7
77100-MKE-A01ZA
SEAT (TYPE1)
$354.75¢177 375
1
#8
77110-MKE-A01
LEATHER, SEAT (NO LETTERS PRINTED)
$140.74¢70 369
1
#9
83510-MKE-A00ZA
COVER, R. SIDE *NH196*(ROSS WHITE)
$66.56¢33 281
1
#10
83515-MKE-A00
RUBBER, SIDE COVER STOPPER
$4.19¢2 094
1
#11
83516-MKE-A00
WASHER, SIDE COVER STOPPER
$3.33¢1 663
1
#12
83610-MKE-A00ZA
COVER, L. SIDE *NH196*(ROSS WHITE)
$66.56¢33 281
1
#13
90121-MKE-A00
BOLT, SPECIAL (8MM)
$3.71¢1 856
1
#14
90126-MKE-A00
BOLT, SPECIAL (6MM)
$3.71¢1 856
1
