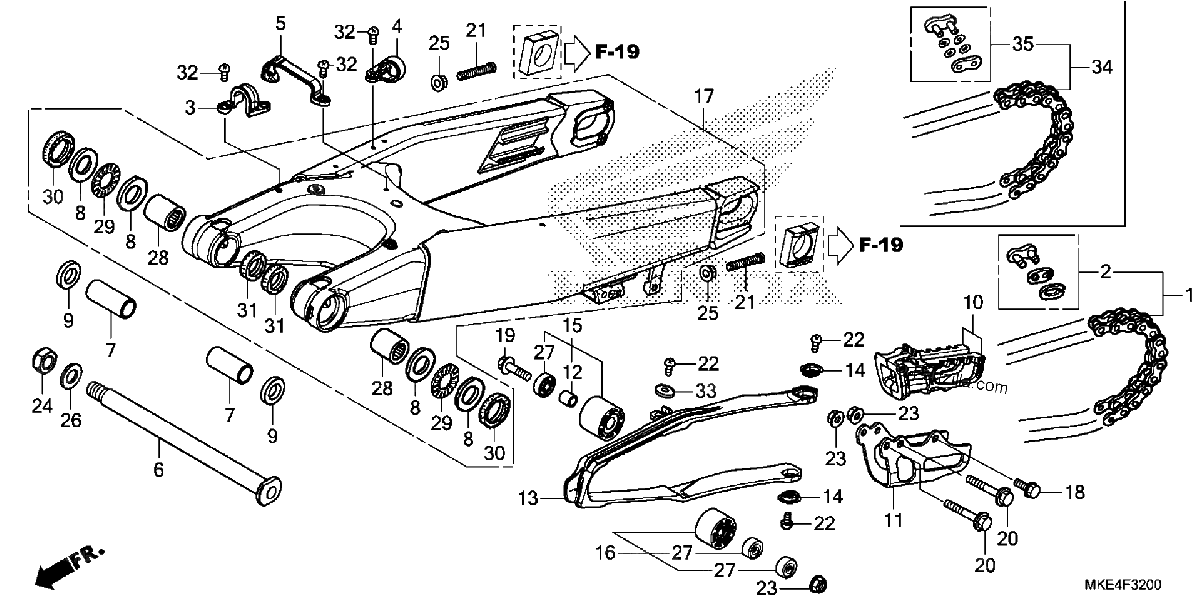

SWINGARM
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#3
GUIDE, BRAKE HOSE
$11.19¢5 594
#4
GUIDE A, BRAKE HOSE
$5.34¢2 669
#5
GUIDE B, BRAKE HOSE
$6.99¢3 494
#6
SHAFT, SWINGARM PIVOT
$29.70¢14 850
#7
COLLAR, SWINGARM (45MM)
$29.24¢14 619
#8
WASHER, SWINGARM SIDE THRUST
$2.48¢1 238
#9
COLLAR, SWINGARM PIVOT SIDE
$15.61¢7 806
#10
GUIDE SET, CHAIN
$36.70¢18 350
#11
PLATE, CHAIN GUIDE
$55.03¢27 513
#12
COLLAR, CHAIN TENSIONER
$3.50¢1 750
#13
SLIDER, CHAIN
$102.66¢51 331
#14
WASHER, CHAIN SLIDER
$3.33¢1 663
#15
ROLLER, CHAIN (34MM)
$69.80¢34 900
#16
ROLLER, CHAIN (LOWER) (34MM)
$69.80¢34 900
#17
SWINGARM SUB-ASSY., RR.
$1331.28¢665 638
#18
BOLT (6X12)
$2.82¢1 412
#19
BOLT, FLANGE (8X32)
$4.24¢2 119
#20
BOLT (6X45)
$4.00¢2 000
#21
BOLT, HEX. (8X47.5)
$3.65¢1 825
#22
SCREW, PAN (5X8)
$3.36¢1 681
#23
NUT, U (6MM) (FUSE RASHI)
$4.94¢2 469
#24
NUT, U HEX. (14MM)
$7.05¢3 525
#25
NUT, HEX. (8MM)
$4.13¢2 063
#26
WASHER (26X14X2.8)
$8.05¢4 025
#26
WASHER (14MM)
$8.05¢4 025
#27
BEARING, RADIAL BALL (608UU)
$17.07¢8 538
#28
BEARING, NEEDLE (22X29X30) (NTN)
$50.32¢25 162
#28
BEARING, NEEDLE (THOMPSON)
$42.77¢21 388
#29
BEARING, NEEDLE THRUST
$15.63¢7 813
#30
DUST SEAL (30X37X3)
$7.99¢3 994
#31
DUST SEAL (22X29X3)
$6.42¢3 213
#32
SCREW, PAN (5X8)
$1.16¢581
#33
WASHER, PLAIN (5MM)
$1.21¢606
#34
CHAIN, DRIVE (RK520EXU-120-LJFZ) (RK) (STANDARD LINK 114L)
$259.96¢129 981
#35
MASTER LINK (RK)(SEAL TYPE)
$8.84¢4 419
