CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

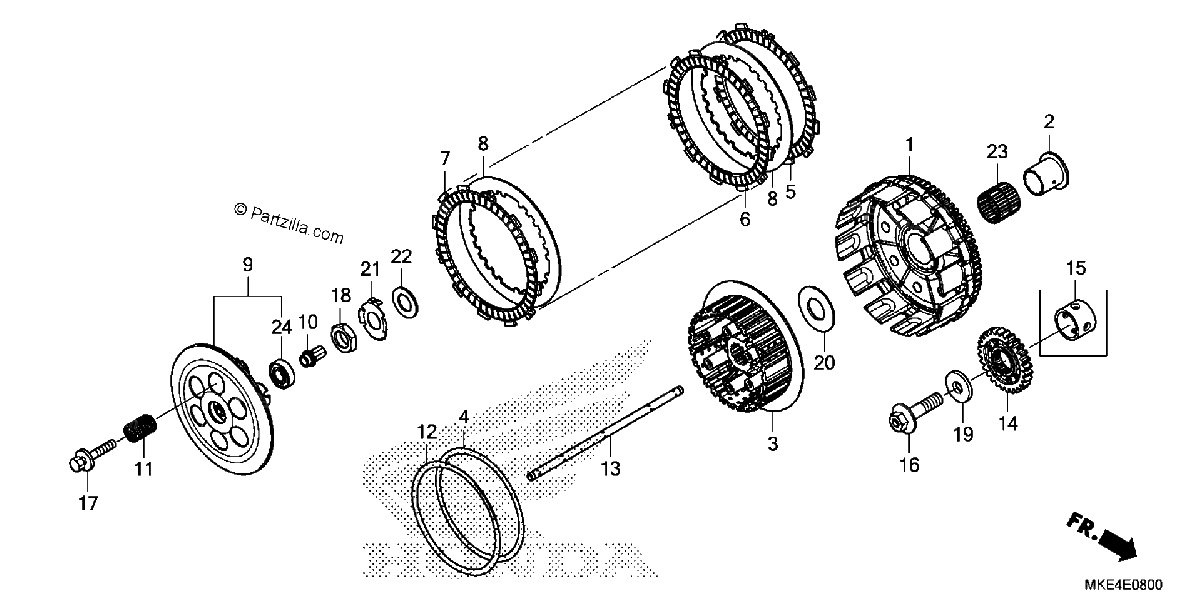

Diagrama de CLUTCH

Repuestos

#1
22100-MKE-A00
CLUTCH OUTER
$506.41¢253 206
1
#2
22106-KS7-000
COLLAR, CLUTCH (OUTER)
$30.59¢15 294
1
#3
22120-MKE-A00
CENTER, CLUTCH
$112.04¢56 019
1
#4
22125-MBN-670
SEAT, JUDDER SPRING
$9.83¢4 913
1
#5
22201-MBN-670
DISK, CLUTCH FRICTION
$23.46¢11 731
1
#6
22201-MEN-670
DISK B, CLUTCH FRICTION
$17.05¢8 525
1
#7
22201-MEN-A10
DISK, CLUTCH FRICTION
$17.75¢8 875
1
#8
22321-MKE-A00
PLATE B, CLUTCH
$15.80¢7 900
1
#9
22350-MKE-A00
PLATE, CLUTCH PRESSURE
$87.59¢43 794
1
#10
22352-MKE-A00
PIECE, CLUTCH LIFTER
$48.78¢24 388
1
#11
22401-MEN-A80
SPRING, CLUTCH
$5.76¢2 881
1
#12
22402-MBN-670
SPRING, JUDDER
$24.76¢12 381
1
#13
22850-MKE-A00
ROD, CLUTCH LIFTER
$78.44¢39 219
1
#14
23121-MKE-A00
GEAR, PRIMARY DRIVE (28T)
$94.54¢47 269
1
#15
28113-MKE-A00
COLLAR, STARTER DRIVEN GEAR
$30.78¢15 388
1
#16
90013-MEY-670
BOLT, SPECIAL (12X47)
$8.51¢4 256
1
#17
90024-MEN-A70
BOLT-WASHER (6X35)
$3.11¢1 556
1
#18
90235-MEN-A30
NUT (18MM)
$6.23¢3 113
1
#19
90402-KW6-960
WASHER, PLAIN (12MM)
$6.74¢3 369
1
#20
90421-MKE-A00
WASHER (23X48X2)
$8.94¢4 469
1
#21
90461-KZ3-J10
WASHER, LOCK (18MM)
$7.57¢3 787
1
#22
90501-ML3-910
WASHER (18X32X2)
$5.30¢2 650
1
#23
91021-ML3-003
BEARING, NEEDLE (28X32X27.2) (THOMPSON)
$20.90¢10 450
1
#24
96140-60010-00
BEARING, RADIAL BALL (6001)
$13.47¢6 738
1
