CYLINDER HEAD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

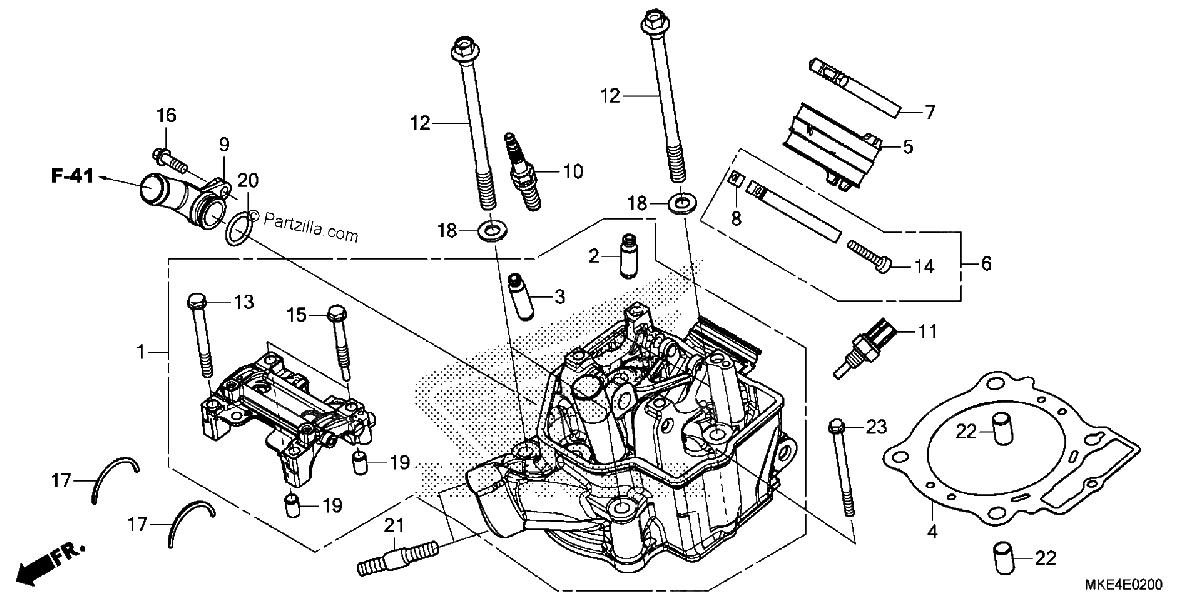

Diagrama de CYLINDER HEAD

Repuestos

#1
12010-MKE-A00
CYLINDER HEAD ASSY.
$860.07¢430 037
1
#2
12204-MKE-P00
GUIDE, VALVE (OVER SIZE)
$19.19¢9 597
1
#3
12205-MEB-P00
GUIDE, EX. VALVE (O.S.)
$17.05¢8 527
1
#4
12251-MKE-A01
GASKET, CYLINDER HEAD
$46.26¢23 132
1
#5
16211-MKE-A00
INSULATOR, THROTTLE BODY
$19.40¢9 700
1
#6
16217-MCJ-000
BAND A, INSULATOR
$9.76¢4 882
1
#7
16218-MEN-A50
BAND, INSULATOR
$8.41¢4 203
1
#8
16222-MV4-300
NUT, SQUARE (5MM)
$2.54¢1 271
1
#9
19501-MKE-A00
JOINT, WATER
$27.54¢13 771
1
#10
31909-MEN-A31
SPARK PLUG (SILMAR9A9S) (NGK)
$19.65¢9 827
1
#10
31910-MEN-A31
SPARK PLUG (SILMAR10A9S) (NGK)
$19.65¢9 827
1
#11
37870-MGS-D31
SENSOR ASSY., WATER TEMPERATURE
$53.60¢26 801
1
#12
90001-MKE-A00
BOLT, FLANGE (10X143)
$10.22¢5 112
1
#13
90003-MKE-A00
BOLT, FLANGE (7X65)
$3.36¢1 679
1
#14
90005-MCJ-000
BOLT, RECESSED (5X28)
$1.79¢897
1
#15
90005-MKE-A00
BOLT, SPECIAL (7X45)
$3.36¢1 679
1
#16
90022-MKE-A00
BOLT, FLANGE (6X20) (SH)
$2.75¢1 374
1
#17
90446-KRN-670
WASHER, CAMSHAFT THRUST
$3.13¢1 564
1
#18
90453-MKE-A00
WASHER, PLAIN (10MM)
$3.36¢1 679
1
#19
90701-MR7-000
PIN, DOWEL (9X14)
$4.80¢2 398
1
#20
91312-KE7-003
O-RING (19X3) (NOK)
$3.09¢1 547
1
#21
92900-08022-0B
BOLT, STUD (8X22)
$2.53¢1 265
1
#22
94301-12200
PIN, DOWEL (12X20)
$2.71¢1 357
1
#23
96001-06080-00
BOLT, FLANGE (6X80)
$2.62¢1 311
1
