FRONT BRAKE MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

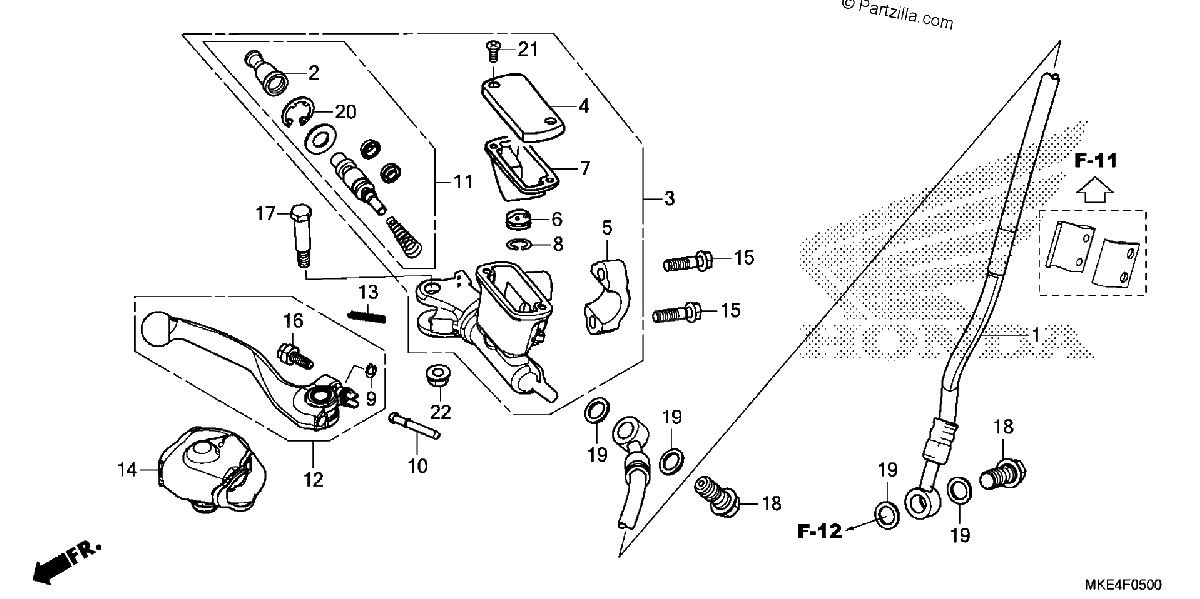

Diagrama de FRONT BRAKE MASTER CYLINDER

Repuestos

#1
45125-MKE-A01
HOSE, FR. BRAKE
$181.64¢90 819
1
#2
45504-MEN-J01
BOOT
$11.85¢5 925
1
#3
45510-KRN-305
MASTER CYLINDER SUB-ASSY., FR. (COO)
$272.93¢136 463
1
#4
45513-KCE-671
CAP, MASTER CYLINDER
$26.71¢13 356
1
#5
45517-GW0-751
HOLDER, MASTER CYLINDER
$14.40¢7 200
1
#6
45518-MEN-J01
SEPARATOR
$9.24¢4 619
1
#7
45520-KA3-731
DIAPHRAGM
$15.75¢7 875
1
#8
45523-KA3-731
RING
$3.65¢1 825
1
#9
45523-MEB-003
RING
$1.21¢606
1
#10
45525-MEN-J01
ROD, PUSH
$9.39¢4 694
1
#11
45530-MEN-J01
PISTON SET, MASTER CYLINDER
$46.06¢23 031
1
#12
53171-MEN-305
LEVER, R. HANDLEBAR (COO)
$44.13¢22 063
1
#13
53174-KN5-006
SPRING, BRAKE LEVER
$3.65¢1 825
1
#14
53176-MEN-J01
COVER, R. HANDLE LEVER
$9.85¢4 925
1
#15
90102-MEN-A60
BOLT (6X22)
$3.38¢1 688
1
#16
90111-MEB-003
BOLT SET, ADJUSTING
$4.97¢2 488
1
#17
90114-MEN-J01
BOLT, HANDLE LEVER
$4.95¢2 475
1
#18
90145-MS9-612
BOLT, OIL (10X22)
$8.89¢4 444
1
#19
90545-300-000
WASHER, OIL BOLT
$4.85¢2 425
1
#20
90651-MA5-671
CIRCLIP
$3.10¢1 550
1
#21
93600-04012-0G
SCREW, FLAT (4X12)
$1.16¢581
1
#21
93600-04012-1G
SCREW, FLAT (4X12)
$1.16¢581
1
#22
94050-06000
NUT, FLANGE (6MM)
$0.80¢400
1
