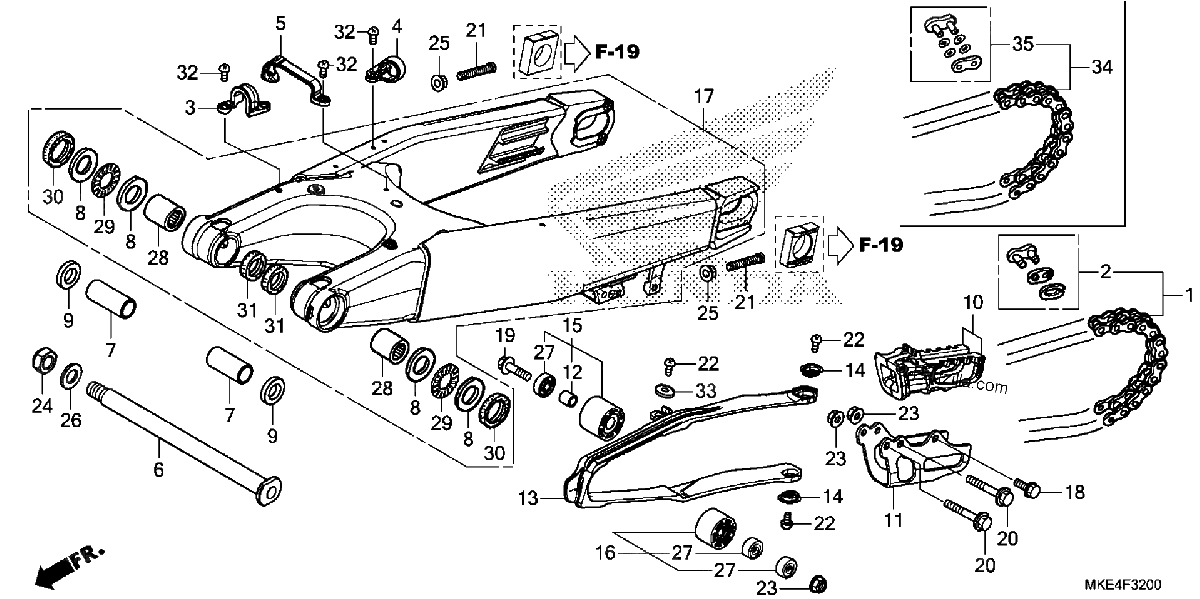

SWINGARM
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
CHAIN, DRIVE (RK520TXZ-114RJ) (RK EXCEL)
No Disponible
#1
CHAIN, DRIVE (DID520DMA4-114RB) (DAIDO)
No Disponible
#1
CHAIN, DRIVE (RK520TXZ-120RJ) (RK EXCEL)
$243.12¢121 561
#2
MASTER LINK (RK EXCEL)
$9.29¢4 646
#3
GUIDE, BRAKE HOSE
$10.29¢5 146
#4
GUIDE A, BRAKE HOSE
$4.91¢2 455
#5
GUIDE B, BRAKE HOSE
$6.43¢3 214
#6
SHAFT, SWINGARM PIVOT
$27.32¢13 662
#7
COLLAR, SWINGARM (45MM)
$26.90¢13 449
#8
WASHER, SWINGARM SIDE THRUST
$2.28¢1 138
#9
COLLAR, SWINGARM PIVOT SIDE
$14.36¢7 182
#10
GUIDE SET, CHAIN
$33.76¢16 882
#11
PLATE, CHAIN GUIDE
$50.62¢25 312
#12
COLLAR, CHAIN TENSIONER
$3.22¢1 610
#13
SLIDER, CHAIN
$94.45¢47 225
#14
WASHER, CHAIN SLIDER
$3.06¢1 529
#15
ROLLER, CHAIN (34MM)
$64.22¢32 108
#16
ROLLER, CHAIN (LOWER) (34MM)
$64.22¢32 108
#17
SWINGARM SUB-ASSY., RR.
$1224.77¢612 387
#18
BOLT (6X12)
$2.60¢1 299
#19
BOLT, FLANGE (8X32)
$3.90¢1 949
#20
BOLT (6X45)
$3.68¢1 840
#21
BOLT, HEX. (8X47.5)
$3.36¢1 679
#22
SCREW, PAN (5X8)
$3.09¢1 547
#23
NUT, U (6MM) (FUSE RASHI)
$4.54¢2 271
#24
NUT, U HEX. (14MM)
$6.49¢3 243
#25
NUT, HEX. (8MM)
$3.79¢1 897
#26
WASHER (14MM)
$7.41¢3 703
#26
WASHER (26X14X2.8)
$7.41¢3 703
#27
BEARING, RADIAL BALL (608UU)
$15.71¢7 855
#28
BEARING, NEEDLE (22X29X30) (NTN)
$46.30¢23 149
#28
BEARING, NEEDLE (THOMPSON)
$39.35¢19 676
#29
BEARING, NEEDLE THRUST
$14.37¢7 187
#30
DUST SEAL (30X37X3)
$7.35¢3 674
#31
DUST SEAL (22X29X3)
$5.91¢2 956
#32
SCREW, PAN (5X8)
$1.07¢535
#33
WASHER, PLAIN (5MM)
$1.12¢558
