MIDDLE COWL LOWER COWL L

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

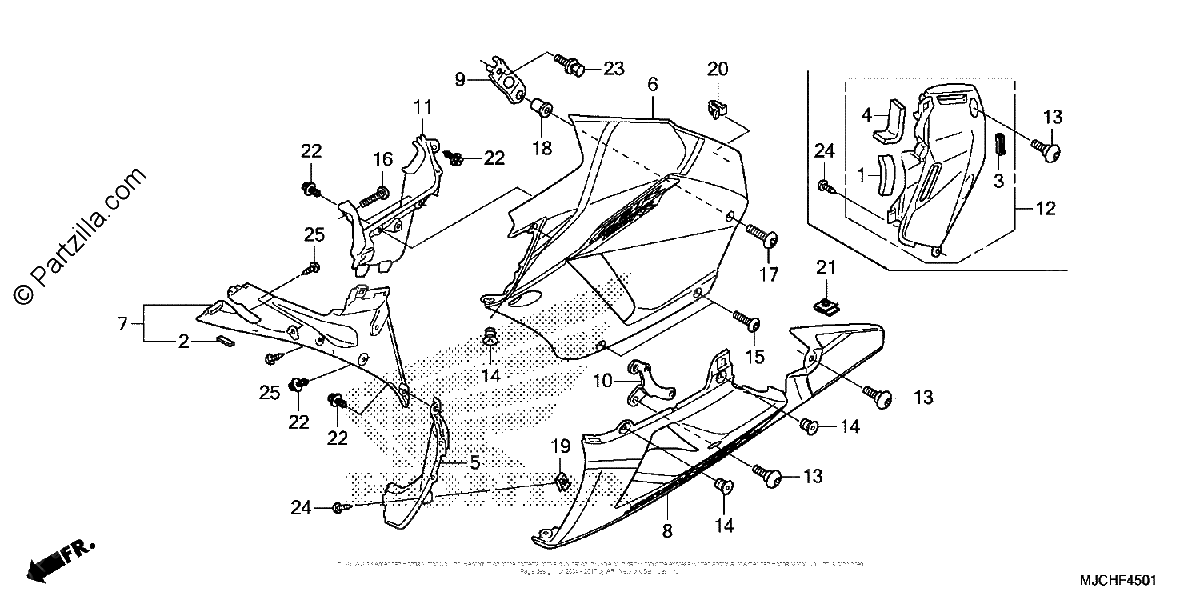

Diagrama de MIDDLE COWL LOWER COWL L

Repuestos

#1
50134-MFJ-J00
MAT, R. ENGINE HANGER
$2.31¢1 156
1
#2
50283-KSC-300
RUBBER, BATTERY
$1.74¢869
1
#3
64121-MEL-000
RUBBER, PROTECTOR
$2.63¢1 313
1
#4
64212-MEH-000
MAT, FR. COWL (UPPER)
$2.63¢1 313
1
#5
64341-MJC-A01
COWL, L. (LOWER) (INNER)
$17.09¢8 544
1
#6
64350-MJC-N21ZA
COWL SET, L. MIDDLE (TYPE1) (WL)
$879.35¢439 675
1
#7
64375-MJC-A00
COWL, L. MIDDLE (INNER)
$24.16¢12 081
1
#8
64450-MJC-N21ZA
COWL SET, L. (LOWER) (TYPE1) (WL)
$904.40¢452 200
1
#10
64515-MFJ-A40
STAY, L. COWL (LOWER)
$5.91¢2 956
1
#11
64591-MJC-A00
COWL, L. (UPPER) (INNER)
$9.70¢4 850
1
#12
64600-MJC-L10
COVER, ABS CONTROL UNIT
$124.08¢62 038
1
#13
90106-KY2-701
SCREW, PAN (6X11)
$5.15¢2 575
1
#14
90111-KW3-003
NUT, COWL SETTING (5MM)
$5.47¢2 738
1
#15
90113-MCJ-000
SCREW, PAN (5X15)
$2.88¢1 438
1
#16
90120-MEL-000
SCREW, PAN (5X20)
$2.52¢1 263
1
#17
90120-MFJ-A40
SCREW, PAN (5X25)
$2.85¢1 425
1
#18
90156-GZ4-670
NUT, WELL (5MM)
$5.91¢2 956
1
#19
90302-SA4-003
NUT, SPRING (4MM)
$6.40¢3 200
1
#20
90666-SDA-A01
CLIP, SNAP FITTING (PO)(NATURAL)
$1.01¢506
1
#21
90677-KAN-961
NUT, CLIP (5MM)
$4.94¢2 469
1
#22
90683-GR1-003
CLIP, BODY COVER
$3.65¢1 825
1
#24
93903-24280
SCREW, TAPPING (4X10)
$1.74¢869
1
#25
93903-24380
SCREW, TAPPING (4X12)
$1.16¢581
1
