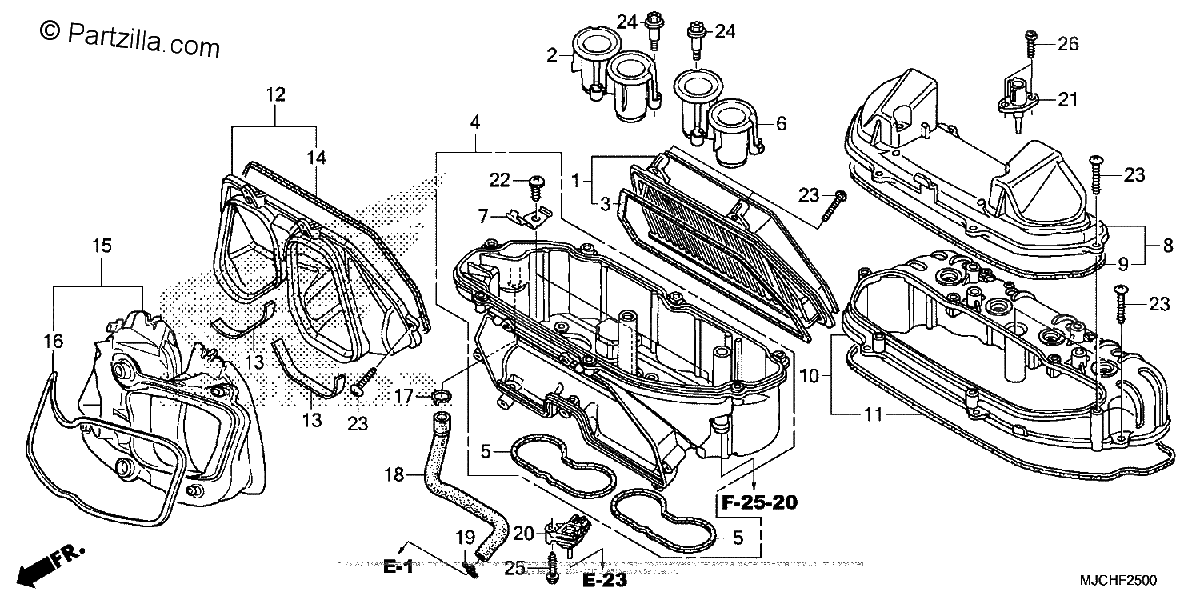

AIR CLEANER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
ELEMENT, AIR CLEANER
$45.68¢22 839
#2
FUNNEL, R. AIR
$27.13¢13 564
#3
SEAL, ELEMENT
$12.24¢6 118
#4
HOUSING, AIR CLEANER (LOWER)
$139.41¢69 707
#5
SEAL, THROTTLE BODY
$2.62¢1 311
#6
FUNNEL, L. AIR
$27.13¢13 564
#7
RETAINER, AIR CLEANER ELEMENT
$7.81¢3 904
#8
COVER, AIR CLEANER
$79.27¢39 635
#9
SEAL, AIR CLEANER COVER
$9.46¢4 732
#10
HOUSING, AIR CLEANER MIDDLE
$59.95¢29 975
#11
SEAL A, AIR CLEANER MIDDLE CASE
$12.29¢6 147
#12
JOINT A, AIR IN.
$20.10¢10 051
#13
SEAL, AIR DUCT
$3.37¢1 685
#14
SEAL, DUCT JOINT
$9.46¢4 732
#15
JOINT B, AIR IN.
$83.16¢41 578
#16
SEAL, JOINT
$14.87¢7 435
#17
CLIP B, TUBE
$2.66¢1 328
#18
TUBE, ENGINE HEAD COVER BREATHER
$8.77¢4 387
#19
CLIP, SUB-TANK HOSE
$4.89¢2 444
#20
SENSOR ASSY., MAP
$138.08¢69 040
#21
SENSOR ASSY., AIR TEMPERATURE
$47.61¢23 805
#22
SCREW, TAPPING (5X12) (DELTA PT)
$2.06¢1 029
#23
SCREW, TAPPING (4X18) (DELTA PT)
$2.43¢1 213
#24
SCREW, PAN (5MM)
$4.45¢2 225
#25
SCREW, TAPPING (5X20)
$0.98¢489
#26
SCREW, TAPPING (5X16)
$1.15¢575
