FRONT BRAKE MASTER CYLINDER 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

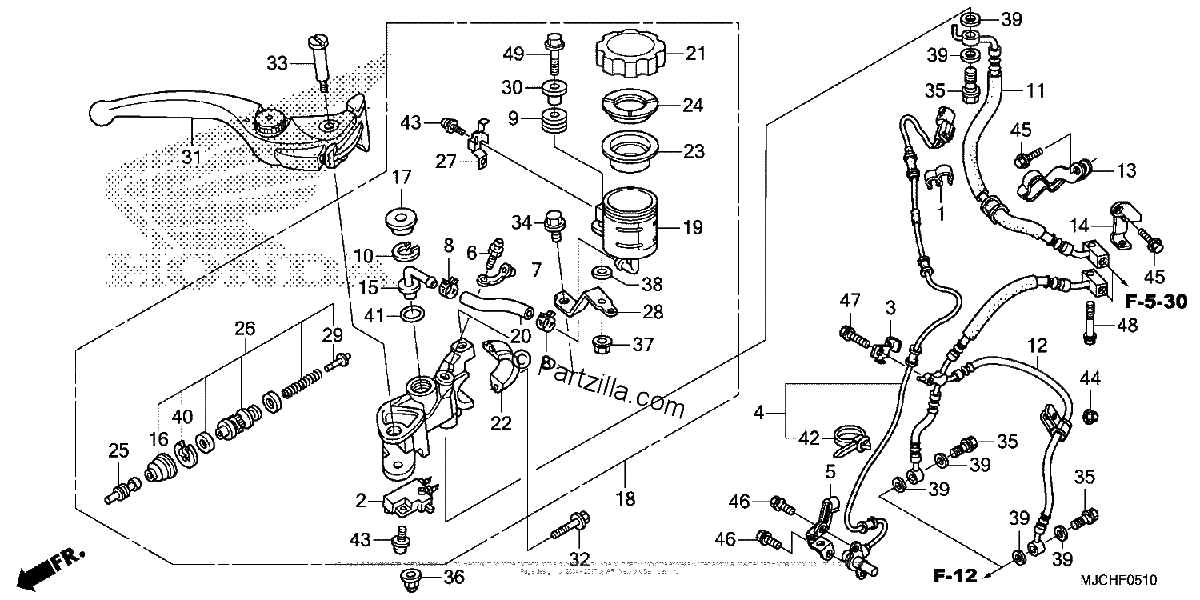

Diagrama de FRONT BRAKE MASTER CYLINDER 2

Repuestos

#1
11152-KS4-003
CLAMP, PIPE
$8.64¢4 319
1
#2
35340-MGS-D31
SWITCH Assembly., Front STOP (ALPS)
$21.49¢10 744
1
#3
38514-MEJ-J00
CLAMP B, SENSOR WIRE
$2.91¢1 456
1
#4
38520-MFJ-A51
SENSOR, FR. WHEEL SPEED
$242.36¢121 181
1
#5
38525-MFJ-A50
GUIDE, FR. SENSOR WIRE
$16.54¢8 269
1
#6
43352-568-003
SCREW, BLEEDER (NISSIN)
$9.63¢4 813
1
#7
43353-461-771
CAP, BLEEDER
$6.13¢3 063
1
#8
43514-KS6-701
CLAMP, MASTER CYLINDER OIL HOSE
$15.24¢7 619
1
#9
43516-MCJ-006
RUBBER, OIL CUP
$5.99¢2 994
1
#10
43517-KS6-701
CIRCLIP, Rear MASTER CYLINDER
$4.63¢2 313
1
#11
45124-MJC-D11
HOSE A, FR. BRAKE
$70.67¢35 338
1
#12
45127-MJC-D11
HOSE B, FR. BRAKE
$196.66¢98 331
1
#13
45159-MFJ-A50
CLAMP, FR. BRAKE HOSE
$14.55¢7 275
1
#14
45163-MFJ-A50
STAY, FR. BRAKE HOSE
$9.45¢4 725
1
#15
45503-KV3-006
CONNECTOR, MASTER CYLINDER
$10.99¢5 494
1
#16
45504-MCF-006
BOOT
$15.29¢7 644
1
#17
45505-KV3-006
COVER, DUST
$5.04¢2 519
1
#18
45510-MJC-305
MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO)
$410.42¢205 212
1
#19
45511-MEL-D21
CUP, OIL
$11.50¢5 750
1
#20
45512-KV3-951
HOSE, MASTER CYLINDER OIL
$6.32¢3 162
1
#21
45513-MEL-D21
CAP, OIL CUP
$21.39¢10 694
1
#22
45517-MFL-006
HOLDER, MASTER CYLINDER
$13.79¢6 894
1
#23
45520-300-000
DIAPHRAGM
$10.59¢5 294
1
#24
45521-MJ6-006
PLATE, DIAPHRAGM
$4.91¢2 456
1
#25
45525-MEL-016
ROD, PUSH
$17.05¢8 525
1
#26
45530-MFJ-D01
MASTER CYLINDER SET
$56.04¢28 019
1
#27
45535-MR8-901
PLATE, STOP
$6.61¢3 306
1
#28
45550-MFJ-D01
STAY, FR. MASTER CYLINDER
$5.99¢2 994
1
#29
46140-MFJ-D01
GUIDE, SPRING
$10.31¢5 156
1
#30
50324-425-010
COLLAR (6.3X13)
$5.88¢2 938
1
#31
53170-MEL-305
LEVER ASSY., R. HANDLE (COO)
$61.01¢30 506
1
#32
90101-MBZ-G00
BOLT, FLANGE (6X22)
$1.85¢925
1
#33
90114-MCF-006
BOLT, HANDLE LEVER
$7.05¢3 525
1
#34
90117-MR7-000
BOLT, FLANGE (6X12)
$3.84¢1 919
1
#35
90145-MS9-612
BOLT, OIL (10X22)
$8.89¢4 444
1
#36
90201-415-000
NUT, CAP (6MM)
$2.76¢1 381
1
#37
90301-MG3-000
NUT, U (6MM)
$8.39¢4 194
1
#38
90473-147-000
WASHER (6X16)
$1.70¢850
1
#39
90545-300-000
WASHER, OIL BOLT
$4.85¢2 425
1
#40
90651-MCF-006
CIRCLIP
$2.91¢1 456
1
#41
91212-422-006
O-RING (14.8X2.4)
$3.30¢1 650
1
#42
91541-S0A-003
CLIP, HARNESS BAND (145MM) (BLACK)
$4.01¢2 006
1
#43
93893-04012-07
SCREW-WASHER (4X12)
$1.72¢862
1
#43
93893-04012-17
SCREW-WASHER (4X12)
$1.72¢862
1
#44
94021-06070-0S
NUT, CAP (6MM)
$1.99¢994
1
#45
96001-06012-07
BOLT, FLANGE (6X12)
$2.31¢1 156
1
#46
96001-06014-07
BOLT, FLANGE (6X14)
$1.54¢769
1
#47
96001-06018-07
BOLT, FLANGE (6X18)
$1.63¢813
1
#48
96001-06035-07
BOLT, FLANGE (6X35)
$2.79¢1 394
1
#49
96300-06028-07
BOLT, FLANGE (6X28)
$2.31¢1 156
1
