HANDLE LEVER SWITCH CABLE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

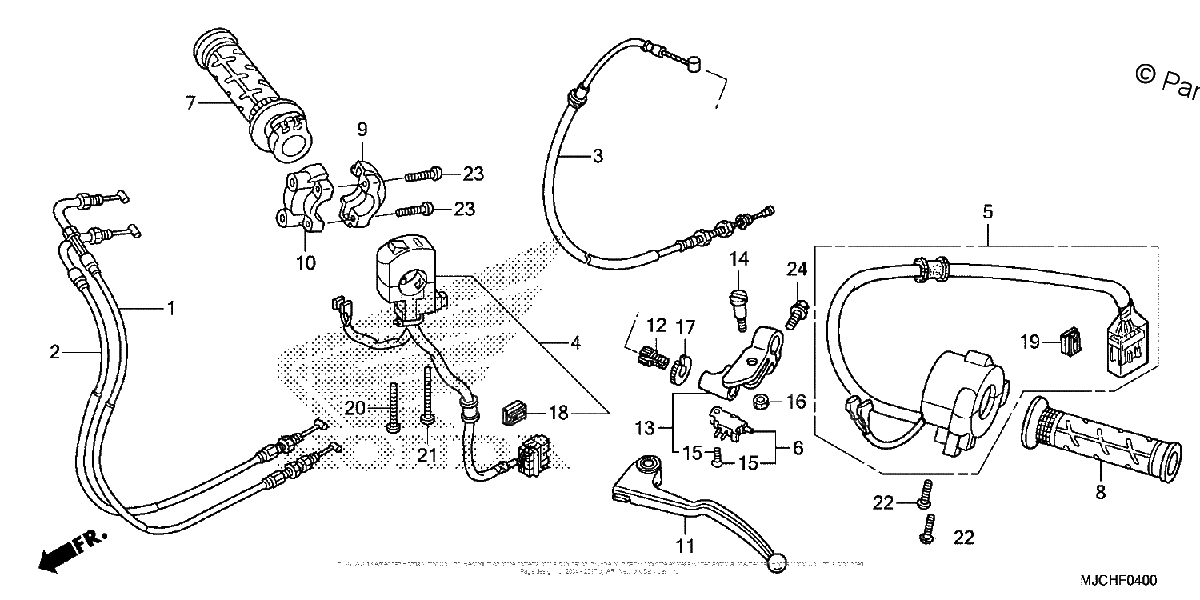

Diagrama de HANDLE LEVER SWITCH CABLE

Repuestos

#1
17910-MFJ-D00
CABLE A, THROTTLE
$30.59¢15 295
1
#2
17920-MFJ-D10
CABLE B, THROTTLE
$23.99¢11 994
1
#3
22870-MFJ-A40
CABLE, CLUTCH
$22.14¢11 069
1
#4
35130-MJC-A01
SWITCH ASSY., ENGINE STOP
$70.39¢35 196
1
#5
35200-MJC-A01
SWITCH ASSY., TURN SIGNAL
$184.17¢92 086
1
#6
35335-MCJ-751
SWITCH SET, CLUTCH
$15.24¢7 619
1
#7
53140-MGS-305
GRIP, THROTTLE (COO)
$30.26¢15 128
1
#8
53150-MGS-305
GRIP, L HANDLE (COO)
$12.95¢6 474
1
#9
53167-MV4-000
HOUSING, THROTTLE (UPPER)
$40.03¢20 016
1
#10
53168-MV4-000
HOUSING, THROTTLE (LOWER)
$43.78¢21 890
1
#11
53182-MEE-305
LEVER, L. HANDLE (COO)
$23.62¢11 811
1
#12
53192-MEE-000
BOLT, WIRE ADJUSTING
$8.18¢4 088
1
#13
53195-MEE-010
BRACKET SET, CLUTCH LEVER
$32.29¢16 146
1
#14
90122-MEE-000
BOLT, LEVER PIVOT
$5.49¢2 743
1
#15
90124-MCJ-752
SCREW, FLAT (3X16)
$0.74¢368
1
#16
90301-MCJ-750
NUT, U (6MM)
$2.68¢1 340
1
#17
90321-MEE-000
NUT, FIXING
$2.24¢1 121
1
#18
91554-SM4-003
HOLDER, BRACKET (RED)
$9.26¢4 629
1
#19
91577-SM4-003
HOLDER, BRACKET (NATURAL)
$5.45¢2 726
1
#20
93500-04032-0G
SCREW, PAN (4X32)
$0.56¢282
1
#21
93500-04045-0G
SCREW, PAN (4X45)
$1.02¢512
1
#22
93500-05020-0G
SCREW, PAN (5X20)
$0.93¢466
1
#23
93500-05022-0G
SCREW, PAN (5X22)
$1.09¢546
1
#24
96001-06020-07
BOLT, FLANGE (6X20)
$1.60¢799
1
