TOP SHELTER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

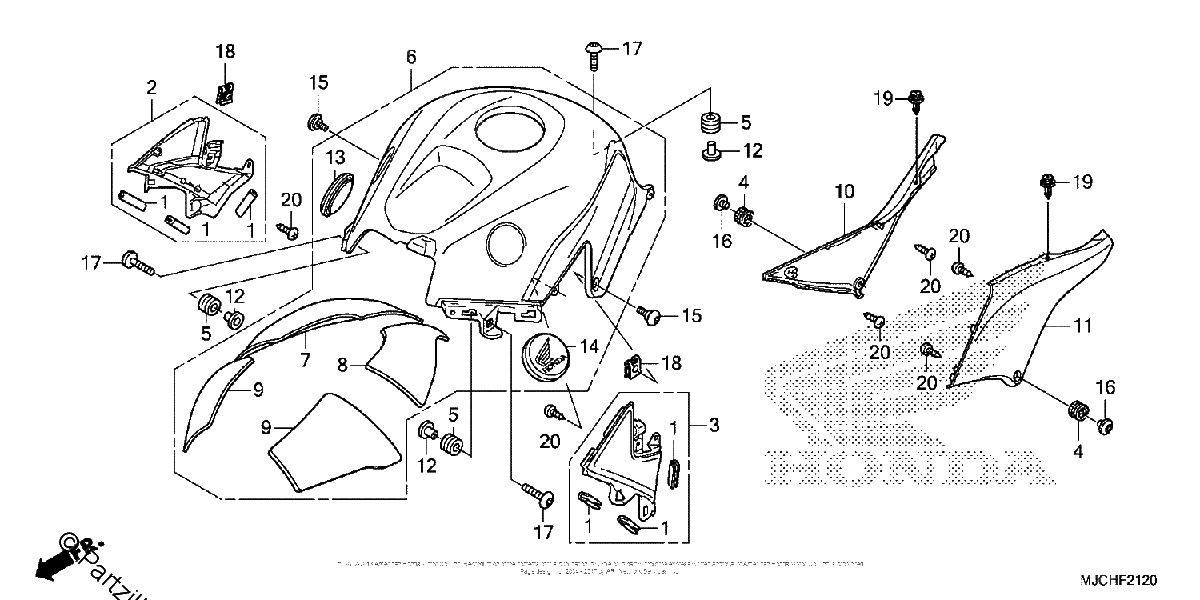

Diagrama de TOP SHELTER

Repuestos

#1
64121-MEL-000
RUBBER, PROTECTOR
$2.63¢1 313
1
#2
64315-MJC-A00
COVER, R. MIDDLE
$24.29¢12 144
1
#3
64365-MJC-A00
COVER, L. MIDDLE
$24.29¢12 144
1
#4
64535-MFJ-D00
RUBBER, SIDE COVER
$2.50¢1 250
1
#5
80101-165-000
RUBBER, Rear FENDER CUSHION
$4.53¢2 263
1
#6
83100-MJC-N21ZA
SHELTER ASSY., TOP (TYPE1) (WL)
$2053.66¢1 026 831
1
#7
83161-MFJ-A00
MAT, R. RR. TOP SHELTER
$13.24¢6 619
1
#8
83162-MFJ-A00
MAT, L. RR. TOP SHELTER
$13.24¢6 619
1
#9
83165-MFJ-A00
(BOTH SIDES)
$11.89¢5 944
1
#10
83601-MJC-A00ZB
COVER, R. SIDE *R334* (VICTORY RED)
$24.61¢12 306
1
#11
83701-MJC-A00ZB
COVER, L. SIDE *R334* (VICTORY RED)
$24.61¢12 306
1
#12
84706-163-670
COLLAR, TAILLIGHT MOUNTING
$4.95¢2 475
1
#13
86211-MJK-N20
BADGE, R. PRODUCT
$43.67¢21 838
1
#14
86212-MJK-N20
BADGE, L. PRODUCT
$43.67¢21 838
1
#15
90106-MBY-000
SCREW, SPECIAL (5X12)
$3.44¢1 719
1
#16
90114-MFJ-D00
SCREW, SPECIAL (5X6)
$2.75¢1 375
1
#17
90118-MEJ-J00
SCREW, PAN (6X20)
$2.75¢1 375
1
#18
90677-KAN-961
NUT, CLIP (5MM)
$4.94¢2 469
1
#19
90683-GR1-003
CLIP, BODY COVER
$3.65¢1 825
1
#20
93903-24280
SCREW, TAPPING (4X10)
$1.74¢869
1
