TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

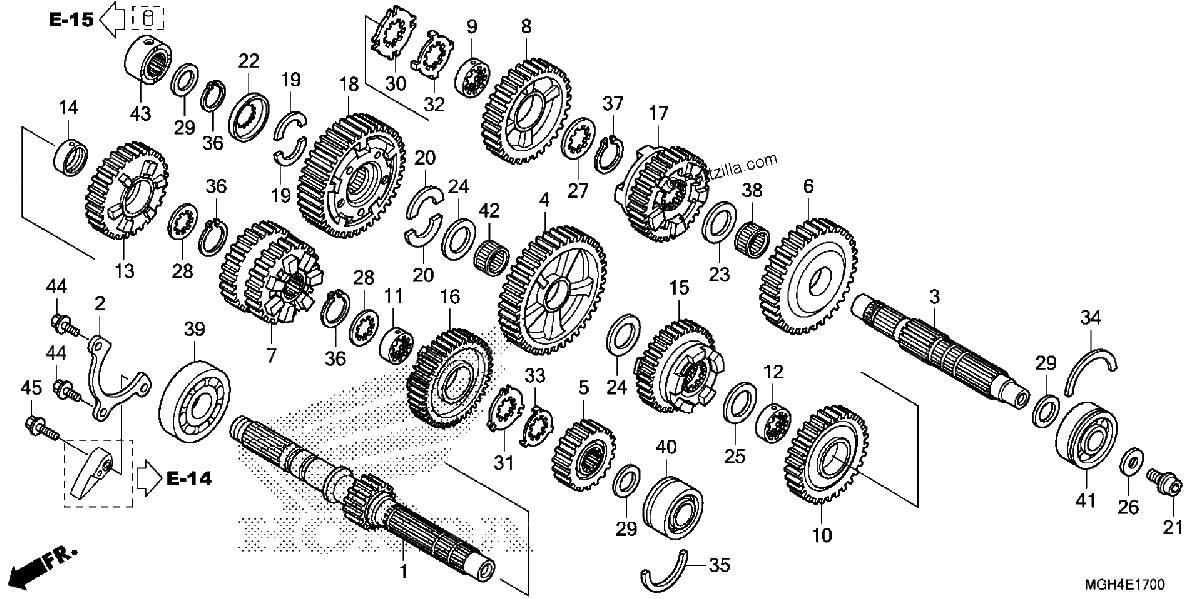

Diagrama de TRANSMISSION

Repuestos

#1
23210-MGE-010
MAINSHAFT (15T)
$217.12¢108 560
1
#2
23213-MGE-000
PLATE, BEARING SETTING
$6.07¢3 036
1
#3
23221-MGE-010
COUNTERSHAFT
$203.61¢101 804
1
#4
23421-MGE-010
GEAR, COUNTERSHAFT FIRST (39T)
$152.42¢76 211
1
#5
23431-MGE-700
GEAR, MAINSHAFT SECOND (20T)
$89.93¢44 965
1
#6
23441-MGE-700
GEAR, COUNTERSHAFT SECOND (32T)
$146.05¢73 025
1
#7
23451-MGH-640
GEAR, MAINSHAFT THIRD FOURTH (23T/26T)
$180.10¢90 051
1
#8
23461-MGH-640
GEAR, COUNTERSHAFT THIRD (29T)
$148.80¢74 399
1
#9
23462-MGE-000
COLLAR, SPLINE (30X12)
$15.74¢7 872
1
#10
23481-MGH-640
GEAR, COUNTERSHAFT FOURTH (28T)
$149.21¢74 606
1
#11
23482-MCJ-000
COLLAR, SPLINE (28X16)
$23.80¢11 902
1
#12
23482-MGE-000
COLLAR (30X33X12)
$12.52¢6 262
1
#13
23491-MGH-640
GEAR, MAINSHAFT FIFTH (26T)
$151.21¢75 607
1
#14
23495-MM5-000
COLLAR (28X13)
$27.24¢13 622
1
#15
23501-MGH-640
GEAR, COUNTERSHAFT FIFTH (25T)
$163.00¢81 501
1
#16
23511-MGH-640
GEAR, MAINSHAFT SIXTH (39T)
$151.21¢75 607
1
#17
23521-MGH-640
GEAR, COUNTERSHAFT SIXTH (35T)
$163.15¢81 575
1
#18
23530-MGH-640
GEAR, FINAL DRIVE (39T)
$383.87¢191 935
1
#19
23545-MGE-000
COTTER, COUNTERSHAFT
$6.64¢3 318
1
#20
23546-MGE-010
COTTER B, COUNTERSHAFT
$6.64¢3 318
1
#21
90037-ME9-000
BOLT, SPECIAL (10MM)
$8.58¢4 289
1
#22
90402-MGE-010
RETAINER, COUNTERSHAFT
$8.99¢4 497
1
#23
90407-415-000
WASHER, THRUST (26MM)
$6.67¢3 335
1
#24
90409-MGE-000
WASHER (30.6X40X1)
$3.48¢1 742
1
#25
90410-MGE-000
WASHER (30.2X36X1.5)
$3.90¢1 949
1
#26
90412-MGE-000
WASHER (10.5X31.8X3.2)
$4.28¢2 139
1
#27
90452-MAT-000
WASHER, SPLINE (30X36X1.5)
$3.90¢1 949
1
#28
90452-MR7-000
WASHER, SPLINE (28X34X1.5)
$7.50¢3 749
1
#29
90455-ML7-000
WASHER B, THRUST (22MM) (BLUE)
$5.43¢2 714
1
#30
90463-MAT-000
WASHER, SPLINE (30MM)
$5.40¢2 702
1
#31
90463-MR7-000
WASHER, SPLINE (28MM)
$12.52¢6 262
1
#32
90464-MAT-000
WASHER, LOCK (30MM)
$7.96¢3 979
1
#33
90464-MR7-000
WASHER, LOCK (28MM)
$12.52¢6 262
1
#34
90601-MA6-000
RING, BEARING SETTING (56MM)
$3.36¢1 679
1
#35
90602-MGE-000
SET-RING (48MM)
$6.51¢3 254
1
#36
90603-MN4-000
CIRCLIP (28MM)
$4.17¢2 087
1
#37
90604-MM5-000
CIRCLIP (30MM)
$4.99¢2 496
1
#38
91001-MCH-003
BEARING, NEEDLE (26X30X13)
$13.10¢6 549
1
#39
91001-MGE-003
BEARING, SPECIAL BALL (28X76X18)
$35.33¢17 664
1
#40
91002-MGE-003
BEARING, SPECIAL BALL (5204S)
$27.62¢13 811
1
#41
91003-MGE-003
BEARING, SPECIAL BALL (22X56X21.5)
$36.01¢18 003
1
#42
91006-MGE-003
BEARING, NEEDLE (30X35X13)
$15.01¢7 504
1
#43
91025-MBT-F21
BEARING, NEEDLE (22X38X19.3)
$34.91¢17 457
1
#44
95701-06020-00
BOLT, FLANGE (6X20)
$2.09¢1 047
1
#45
95801-06028-00
BOLT, FLANGE (6X28)
$2.15¢1 075
1
