FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

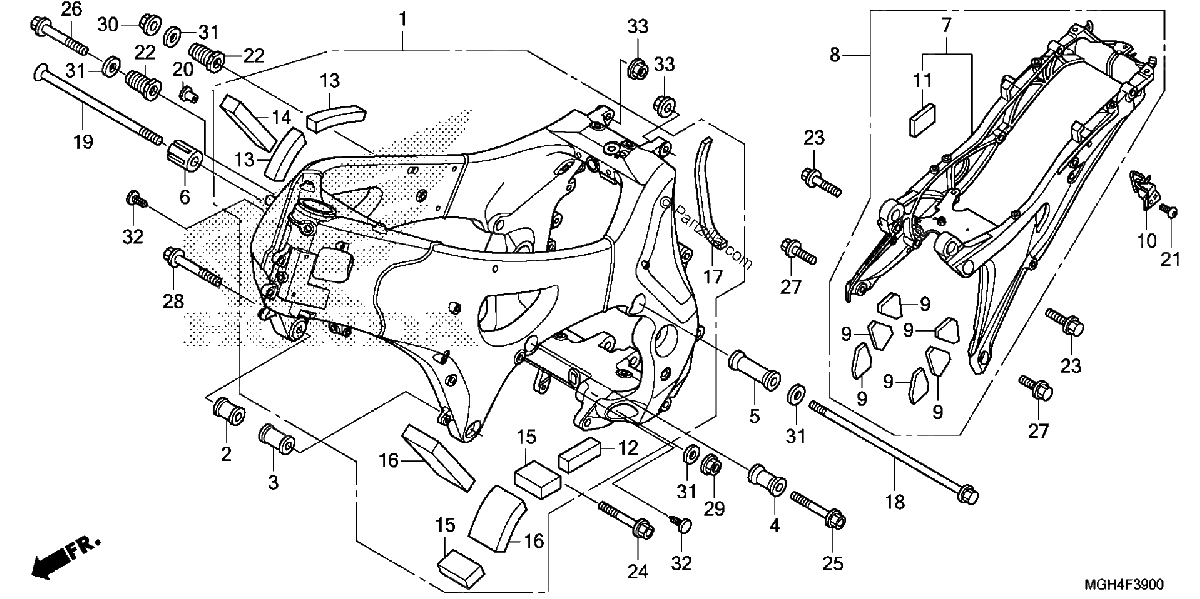

Diagrama de FRAME

Repuestos

#1
50010-MGE-701ZD
FRAME SET *NHA86M* (MAT BALLISTIC BLACK)
$4441.69¢2 220 846
1
#2
50191-MGE-000
COLLAR A, R. ENGINE HANGER
$9.11¢4 554
1
#3
50192-MGE-000
COLLAR A, L. ENGINE HANGER
$11.42¢5 710
1
#4
50193-MGE-000
COLLAR B, ENGINE HANGER
$13.16¢6 578
1
#5
50194-MGE-000
COLLAR C, ENGINE HANGER
$22.09¢11 046
1
#6
50195-MGE-000
COLLAR D, ENGINE HANGER
$31.79¢15 893
1
#7
50200-MGH-640ZC
RAIL ASSY., SEAT *NHA86M* (MAT BALLISTIC BLACK)
$785.48¢392 742
1
#10
50206-MGH-640
HOLDER, HELMET
$33.80¢16 899
1
#11
64314-MCT-770
MAT F, SHOCK ABSORBER
$3.16¢1 581
1
#12
64470-GEY-300
MAT, TAILLIGHT
$5.60¢2 800
1
#13
83530-MGE-000
URETHANE A, R. HEAT GUARD
$3.79¢1 897
1
#14
83550-MGE-000
URETHANE B, R. HEAT GUARD
$2.74¢1 368
1
#15
83630-MGE-000
URETHANE A, L. HEAT GUARD
$3.13¢1 564
1
#16
83635-MGE-000
URETHANE B, L. HEAT GUARD
$4.89¢2 444
1
#17
83640-MGE-700
URETHANE, R. HEAT GUARD
$2.22¢1 110
1
#18
90101-MGE-000
BOLT, FLANGE (12X344)
$26.27¢13 133
1
#19
90102-MGE-000
BOLT, SPECIAL (12X303)
$33.23¢16 617
1
#20
90111-KW3-003
NUT, COWL SETTING (5MM)
$5.04¢2 519
1
#21
90118-MBV-000
SCREW, PAN (6X14)
$2.24¢1 121
1
#22
90151-MGE-000
BOLT, ADJUSTER (18X1.5X28.5)
$15.54¢7 768
1
#23
90160-MGE-000
BOLT, FLANGE (10X45)
$5.75¢2 875
1
#24
90161-MGH-640
BOLT, FLANGE (12X85)
$18.05¢9 027
1
#25
90162-MGH-640
BOLT, FLANGE (12X95)
$18.85¢9 424
1
#26
90163-MGH-640
BOLT, FLANGE (12X60)
$16.45¢8 223
1
#27
90164-MGE-000
BOLT, FLANGE (10X32)
$5.31¢2 657
1
#28
90166-MGH-640
BOLT, FLANGE (12X70)
$14.86¢7 429
1
#29
90371-MGE-000
NUT, FLANGE (12MM)
$2.62¢1 311
1
#30
90372-MGE-000
NUT, FLANGE (12MM)
$2.62¢1 311
1
#31
90559-ZW1-000
WASHER, PLAIN (12MM)
$6.77¢3 387
1
#32
90656-MGH-641
CLIP, BRUSH
$2.64¢1 322
1
#33
94050-10000
NUT, FLANGE (10MM)
$1.75¢874
1
