SIDE GEAR CASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

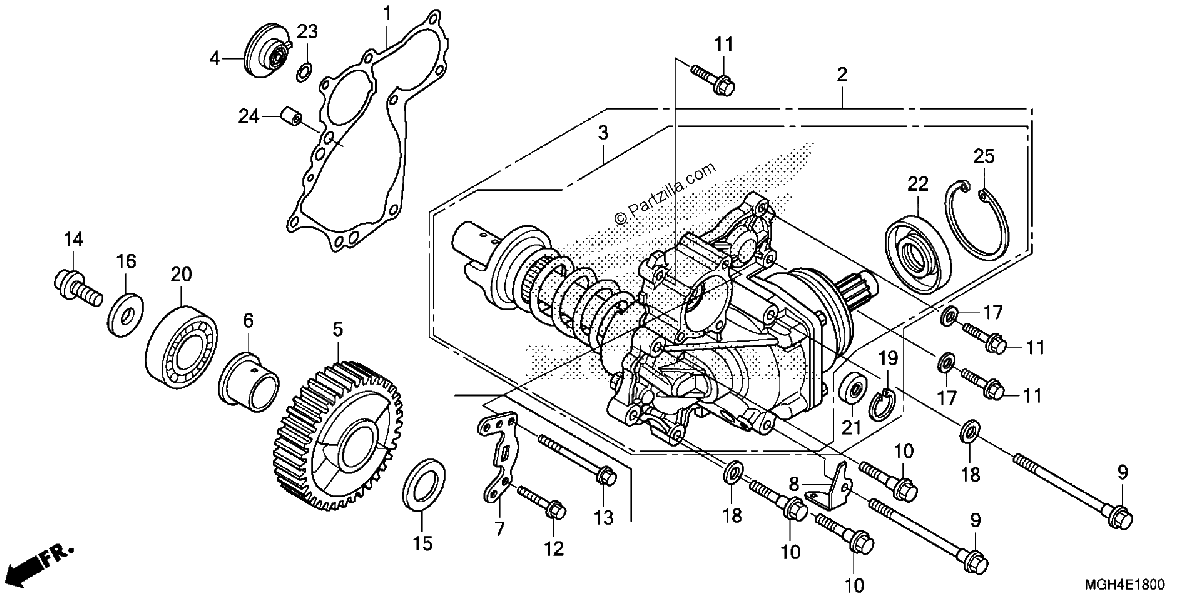

Diagrama de SIDE GEAR CASE

Repuestos

#1
11663-MGE-003
GASKET, SIDE GEAR CASE
$29.30¢14 650
1
#2
21100-MGE-700
CASE ASSY., SIDE GEAR
$3385.64¢1 692 819
1
#4
23218-MGE-010
COLLAR, OIL GUIDE
$30.29¢15 144
1
#5
23541-MGE-000
GEAR, FINAL DRIVEN (37T)
$157.47¢78 738
1
#6
23733-MGE-000
COLLAR (25X30X28.6)
$41.51¢20 756
1
#8
32156-MGH-640
STAY, HARNESS CLIP
$5.94¢2 969
1
#9
90005-MGE-010
BOLT, FLANGE (8X95)
$6.45¢3 225
1
#10
90006-MGE-010
BOLT, UBS (8X40)
$6.95¢3 475
1
#11
90016-GHB-680
BOLT, FLANGE (6X28)
$2.92¢1 463
1
#14
90037-ME9-000
BOLT, SPECIAL (10MM)
$9.32¢4 663
1
#15
90403-MGE-000
WASHER, SPECIAL (25X40.4X1.2)
$6.63¢3 313
1
#16
90414-MGE-D00
WASHER (10.5X36X4)
$3.02¢1 513
1
#17
90441-706-000
WASHER, SEALING (6MM)
$1.42¢712
1
#18
90442-028-000
WASHER, SEALING (8MM)
$2.27¢1 138
1
#19
90603-MGE-000
CIRCLIP (INNER) (26MM)
$2.64¢1 319
1
#20
91005-MGE-003
BEARING, BALL (6305)
$30.96¢15 481
1
#21
91204-MB0-013
OIL SEAL (8X25X8) (ARAI)
$4.91¢2 456
1
#22
91205-MGE-003
OIL SEAL (28X66X8)
$14.07¢7 038
1
#23
91309-PJ7-010
O-RING (11.5X3.5)
$3.65¢1 825
1
#24
94302-10120
PIN, DOWEL (10X12)
$1.85¢925
1
#25
94520-65120
CIRCLIP (INNER) (65MM)
$3.94¢1 969
1
