FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

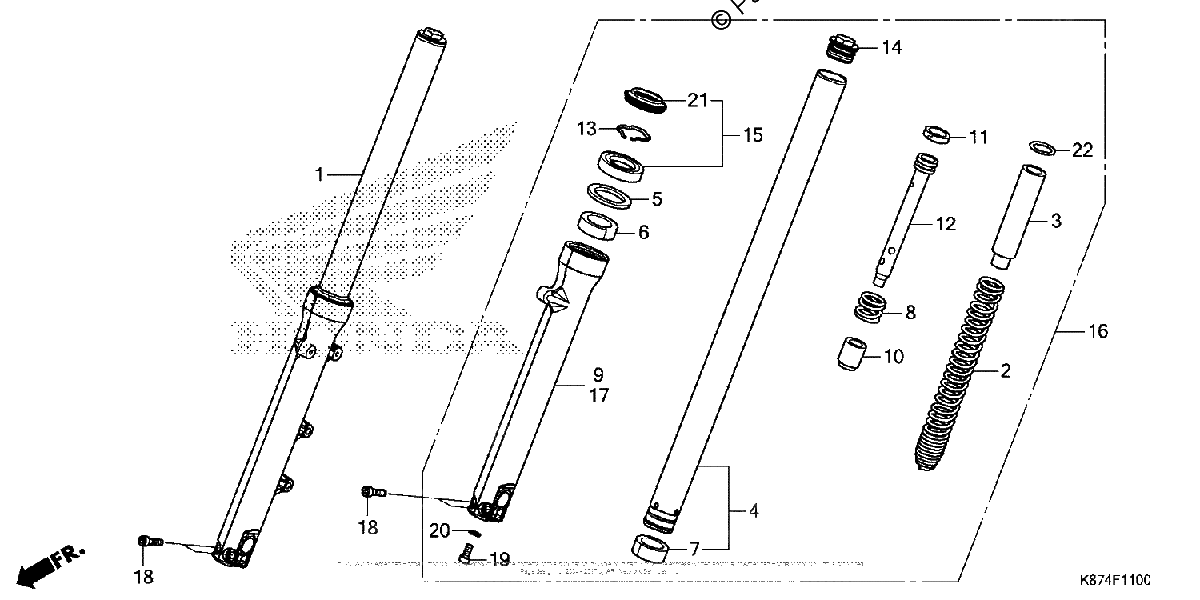

Diagrama de FRONT FORK

Repuestos

#001
51400-K87-A01
FORK ASSY., R. FR. (SHOWA)
$425.68¢212 842
1
#1
51400-K87-A01
FORK ASSY., R. FR. (SHOWA)
$425.68¢212 842
1
#002
51401-K87-A01
SPRING, FR. FORK
$46.68¢23 339
1
#2
51401-K87-A01
SPRING, FR. FORK
$46.68¢23 339
1
#3
51402-MGZ-J01
COLLAR, SPRING
$19.08¢9 539
1
#003
51402-MGZ-J01
COLLAR, SPRING
$19.08¢9 539
1
#004
51410-K87-A01
PIPE, FR. FORK
$104.04¢52 020
1
#4
51410-K87-A01
PIPE, FR. FORK
$104.04¢52 020
1
#5
51412-MB4-003
RING, BACK-UP (SHOWA)
$10.38¢5 192
1
#005
51412-MB4-003
RING, BACK-UP (SHOWA)
$10.38¢5 192
1
#006
51414-MFJ-A51
BUSH, GUIDE
$8.10¢4 048
1
#6
51414-MFJ-A51
BUSH, GUIDE
$8.10¢4 048
1
#007
51415-MFJ-A51
BUSH, SLIDER
$8.10¢4 048
1
#7
51415-MFJ-A51
BUSH, SLIDER
$8.10¢4 048
1
#008
51416-MM8-881
SPRING, FR. REBOUND (SHOWA)
$6.57¢3 283
1
#8
51416-MM8-881
SPRING, FR. REBOUND (SHOWA)
$6.57¢3 283
1
#9
51420-K87-A01
CASE, Right. (LOWER)
$194.61¢97 307
1
#009
51420-K87-A01
CASE, Right. (LOWER)
$194.61¢97 307
1
#010
51432-MV9-003
PIECE, OIL LOCK (SHOWA)
$26.52¢13 259
1
#10
51432-MV9-003
PIECE, OIL LOCK (SHOWA)
$26.52¢13 259
1
#11
51437-MM5-003
RING, PISTON
$5.92¢2 961
1
#011
51437-MM5-003
RING, PISTON
$5.92¢2 961
1
#12
51440-K87-A01
PIPE, SEAT
$11.15¢5 577
1
#012
51440-K87-A01
PIPE, SEAT
$11.15¢5 577
1
#013
51447-KA4-711
RING, OIL SEAL STOPPER (SHOWA)
$5.04¢2 519
1
#13
51447-KA4-711
RING, OIL SEAL STOPPER (SHOWA)
$5.04¢2 519
1
#014
51454-MM9-671
BOLT, FR. FORK
$40.97¢20 487
1
#14
51454-MM9-671
BOLT, FR. FORK
$40.97¢20 487
1
#015
51490-MKA-D81
SEAL SET, FR. FORK
$24.32¢12 161
1
#15
51490-MKA-D81
SEAL SET, FR. FORK
$24.32¢12 161
1
#016
51500-K87-A01
FORK ASSY., L. FR. (SHOWA)
$426.65¢213 325
1
#16
51500-K87-A01
FORK ASSY., L. FR. (SHOWA)
$426.65¢213 325
1
#017
51520-K87-A01
CASE, Left (LOWER)
$195.27¢97 635
1
#17
51520-K87-A01
CASE, Left (LOWER)
$195.27¢97 635
1
#018
90102-K87-A00
BOLT, SOCKET (8X32)
$0.83¢414
1
#18
90102-K87-A00
BOLT, SOCKET (8X32)
$0.83¢414
1
#019
90116-KV3-701
BOLT, SOCKET (8MM) (SHOWA)
$4.34¢2 168
1
#19
90116-KV3-701
BOLT, SOCKET (8MM) (SHOWA)
$4.34¢2 168
1
#020
90544-283-000
WASHER, SPECIAL (8MM) (SHOWA)
$3.36¢1 679
1
#20
90544-283-000
WASHER, SPECIAL (8MM) (SHOWA)
$3.36¢1 679
1
#21
91251-MKA-D81
DUST SEAL (SHOWA)
$9.20¢4 600
1
#021
91251-MKA-D81
DUST SEAL (SHOWA)
$9.20¢4 600
1
#022
91356-KF0-003
O-RING (33.2X2.4)
$4.20¢2 099
1
#22
91356-KF0-003
O-RING (33.2X2.4)
$4.20¢2 099
1
