SWINGARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

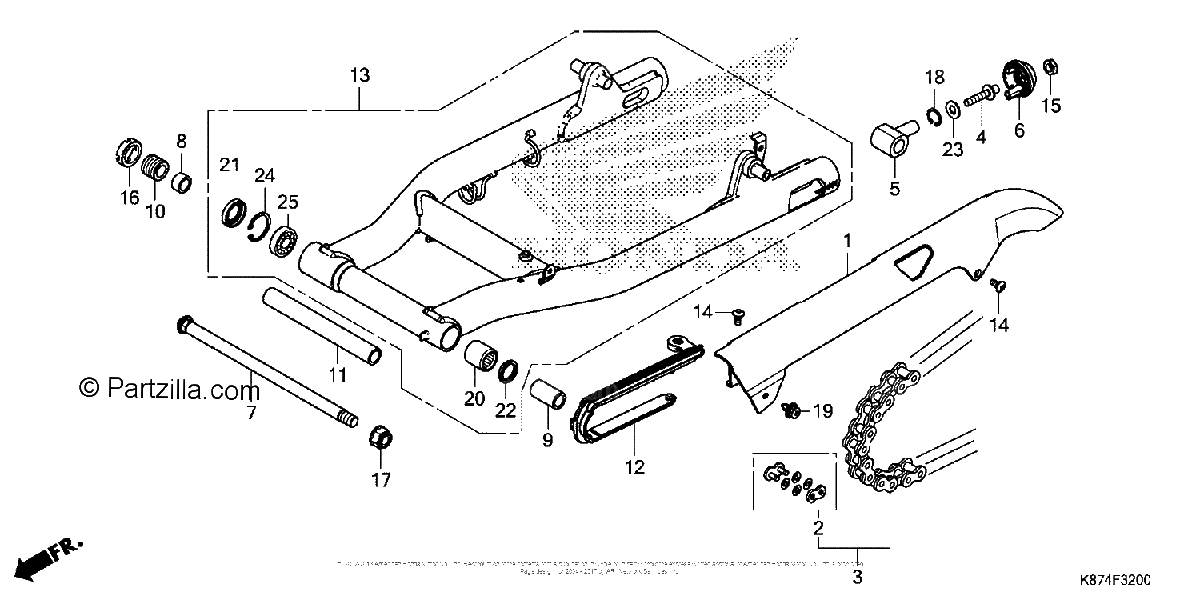

Diagrama de SWINGARM

Repuestos

#1
40510-K87-A00
CASE, DRIVE CHAIN
$14.07¢7 038
1
#001
40510-K87-A01
CASE, DRIVE CHAIN
$14.07¢7 038
1
#001
40510-K87-A00
CASE, DRIVE CHAIN
$14.07¢7 038
1
#2
40545-KYJ-902
MASTER LINK (DAIDO)
$16.90¢8 450
1
#002
40545-KYJ-902
MASTER LINK (DAIDO)
$16.90¢8 450
1
#2
40531-K87-A01
MASTER LINK (RK)
$25.06¢12 531
1
#002
40531-K87-A01
MASTER LINK (RK)
$25.06¢12 531
1
#003
40540-K87-A02
CHAIN, DRIVE (RK520KLO2-120LJFZ) (RK) (STANDARD LINK 112L)
$108.26¢54 131
1
#3
40540-K87-A02
CHAIN, DRIVE (RK520KLO2-120LJFZ) (RK) (STANDARD LINK 112L)
$108.26¢54 131
1
#003
40540-KYJ-902
CHAIN, DRIVE (DID520VF-120ZB) (DAIDO)
$160.88¢80 438
1
#3
40540-KYJ-902
CHAIN, DRIVE (DID520VF-120ZB) (DAIDO)
$160.88¢80 438
1
#004
40542-K87-A00
BOLT, CHAIN ADJUSTING
$2.50¢1 250
1
#4
40542-K87-A00
BOLT, CHAIN ADJUSTING
$2.50¢1 250
1
#5
40543-K87-A00
ADJUSTER, CHAIN
$17.16¢8 581
1
#005
40543-K87-A00
ADJUSTER, CHAIN
$17.16¢8 581
1
#006
40546-K87-A00
CAP, SWINGARM END
$14.50¢7 250
1
#6
40546-K87-A00
CAP, SWINGARM END
$14.50¢7 250
1
#7
52101-K87-A00
BOLT, SWINGARM PIVOT
$13.04¢6 519
1
#007
52101-K87-A00
BOLT, SWINGARM PIVOT
$13.04¢6 519
1
#8
52105-K87-A00
COLLAR B, SWINGARM PIVOT
$6.39¢3 194
1
#008
52105-K87-A00
COLLAR B, SWINGARM PIVOT
$6.39¢3 194
1
#9
52106-KYJ-900
COLLAR, PIVOT
$16.21¢8 106
1
#009
52106-KYJ-900
COLLAR, PIVOT
$16.21¢8 106
1
#010
52109-K87-A00
BOLT, PIVOT ADJUSTING
$9.40¢4 700
1
#10
52109-K87-A00
BOLT, PIVOT ADJUSTING
$9.40¢4 700
1
#011
52141-K87-A00
COLLAR, PIVOT DISTANCE
$13.43¢6 713
1
#11
52141-K87-A00
COLLAR, PIVOT DISTANCE
$13.43¢6 713
1
#12
52170-K87-A00
SLIDER, CHAIN
$9.36¢4 681
1
#012
52170-K87-A00
SLIDER, CHAIN
$9.36¢4 681
1
#13
52200-K87-A00
SWINGARM SUB-Assembly., Rear.
$858.79¢429 394
1
#013
52200-K87-A00
SWINGARM SUB-Assembly., Rear.
$858.79¢429 394
1
#014
90115-MGZ-J00
SCREW, SPECIAL (6X14)
$1.38¢688
1
#14
90115-MGZ-J00
SCREW, SPECIAL (6X14)
$1.38¢688
1
#015
90301-K87-A01
NUT, U (10MM)
$2.63¢1 313
1
#15
90301-K87-A01
NUT, U (10MM)
$2.63¢1 313
1
#016
90302-K87-A00
NUT, LOCK (26X1.5)
$11.23¢5 613
1
#16
90302-K87-A00
NUT, LOCK (26X1.5)
$11.23¢5 613
1
#017
90305-KCJ-951
NUT, U (14MM) (FUJI SEIMITSU)
$7.56¢3 781
1
#17
90305-KCJ-951
NUT, U (14MM) (FUJI SEIMITSU)
$7.56¢3 781
1
#018
90651-K87-A00
CIRCLIP (INNER) (20)
$2.01¢1 006
1
#18
90651-K87-A00
CIRCLIP (INNER) (20)
$2.01¢1 006
1
#019
90683-MBW-003
CLIP, BODY
$2.51¢1 256
1
#19
90683-MBW-003
CLIP, BODY
$2.51¢1 256
1
#20
91071-MJ0-004
BEARING, NEEDLE (THOMPSON)
$42.77¢21 388
1
#020
91071-MJ0-003
BEARING, NEEDLE (22X29X30) (NTN)
$50.32¢25 162
1
#020
91071-MJ0-004
BEARING, NEEDLE (THOMPSON)
$42.77¢21 388
1
#20
91071-MJ0-003
BEARING, NEEDLE (22X29X30) (NTN)
$50.32¢25 162
1
#021
91213-MB2-003
DUST SEAL (22X35X7) (ARAI)
$9.04¢4 519
1
#21
91213-MB2-003
DUST SEAL (22X35X7) (ARAI)
$9.04¢4 519
1
#21
91213-MB2-006
DUST SEAL (22X35X7) (NOK)
$9.04¢4 519
1
#021
91213-MB2-006
DUST SEAL (22X35X7) (NOK)
$9.04¢4 519
1
#022
91283-ML7-003
DUST SEAL (22X29X4) (ARAI)
$7.18¢3 588
1
#22
91283-ML7-003
DUST SEAL (22X29X4) (ARAI)
$7.18¢3 588
1
#23
94101-10700
WASHER, PLAIN (10MM)
$1.38¢688
1
#023
94101-10700
WASHER, PLAIN (10MM)
$1.38¢688
1
#24
94520-35000
CIRCLIP, INNER (35MM)
$2.50¢1 250
1
#024
94520-35000
CIRCLIP, INNER (35MM)
$2.50¢1 250
1
#25
96100-62020-10
BEARING, RADIAL BALL (6202)
$16.95¢8 475
1
#025
96100-62020-10
BEARING, RADIAL BALL (6202)
$16.95¢8 475
1
