REAR SHOCK ABSORBER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

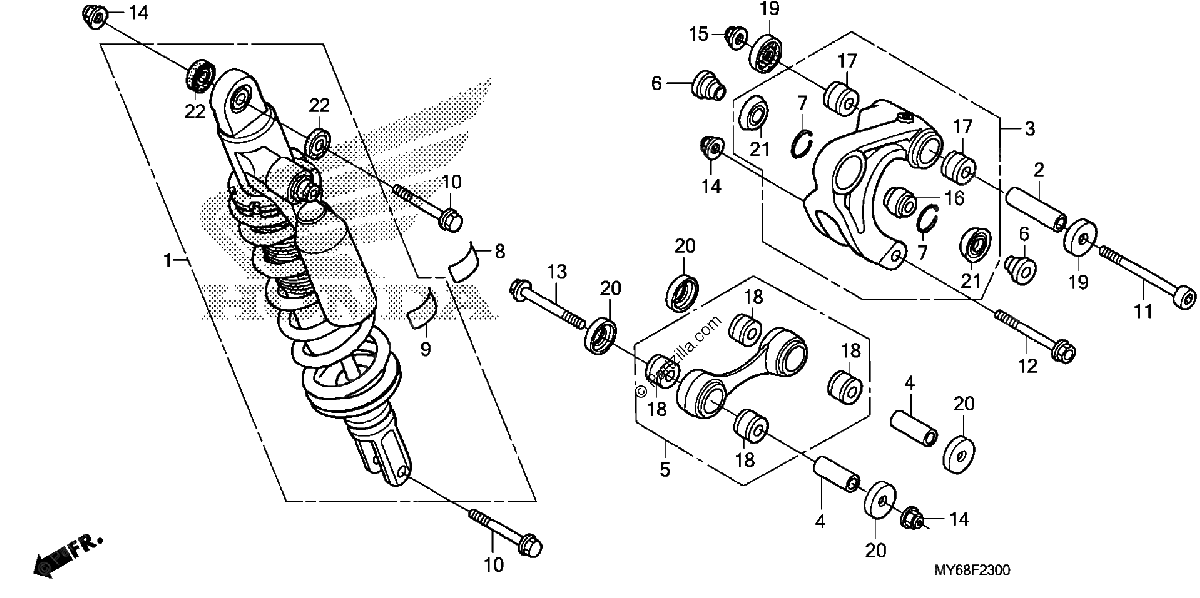

Diagrama de REAR SHOCK ABSORBER

Repuestos

#1
52400-MGW-305
CUSHION ASSY., RR. (COO)
$1679.13¢839 563
1
#2
52463-KN5-000
COLLAR, CUSHION ARM PIVOT
$26.13¢13 063
1
#3
52465-MY6-A40
ARM SUB-ASSY., CUSHION
$392.30¢196 150
1
#4
52473-KN5-000
COLLAR, CUSHION CONNECTING ROD
$16.63¢8 313
1
#5
52475-MY6-A40
ROD Assembly., CUSHION CONNECTING
$273.01¢136 506
1
#6
52486-KN5-000
COLLAR, DAMPER
$11.05¢5 525
1
#7
52487-KN5-000
RING, STOPPER
$4.20¢2 100
1
#9
87516-MBL-610
LABEL, RR. DAMPER
$5.55¢2 775
1
#10
90103-KE8-003
BOLT, FLANGE (10X46)
$11.16¢5 581
1
#11
90128-MN1-670
BOLT, SOCKET (12X102)
$21.09¢10 544
1
#12
90129-KF0-000
BOLT, FLANGE (10X77)
$17.24¢8 619
1
#13
90151-MG3-000
BOLT, FLANGE (10X65)
$16.23¢8 113
1
#14
90304-GE8-003
NUT, U (10MM) (FUSE RASHI)
$4.45¢2 225
1
#15
90306-KF0-003
NUT, FLANGE (12MM) (FUSE RASHI)
$4.68¢2 338
1
#16
91077-KN5-004
BEARING, SPHERICAL (14MM)
$29.13¢14 563
1
#17
91078-KN5-003
BEARING, CUSHION ARM (NTN)
$33.25¢16 625
1
#18
91079-KN5-003
BEARING, CONNECTING ROD
$14.75¢7 375
1
#19
91261-KN5-003
SEAL, CUSHION ARM
$13.81¢6 906
1
#20
91262-KN5-003
SEAL, CUSHION CONNECTING ROD PIVOT
$11.83¢5 913
1
#21
91351-KN5-004
DUST SEAL B
$4.91¢2 456
1
#22
91351-KS7-003
DUST SEAL, RR. CUSHION (UPPER)
$6.20¢3 100
1
