TAILLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

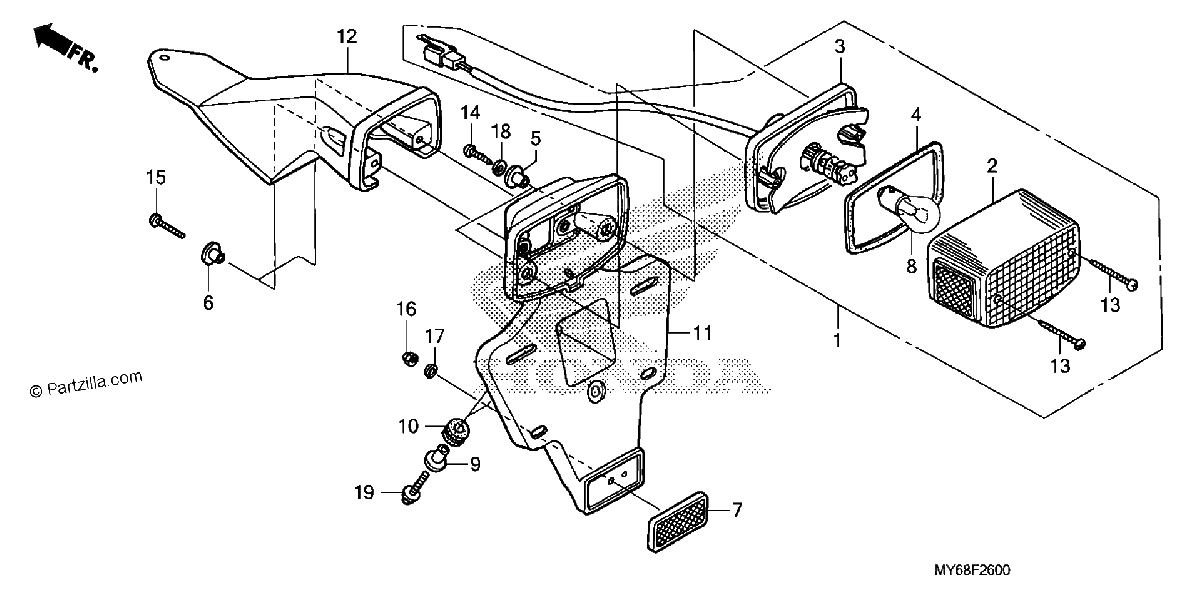

Diagrama de TAILLIGHT

Repuestos

#1
33701-MGW-305
TAILLIGHT UNIT (12V 32/3CP) (COO) (STANLEY)
$138.41¢69 206
1
#2
33702-MGR-305
LENS, TAILLIGHT (COO) (STANLEY)
$35.64¢17 819
1
#3
33703-MY6-671
SOCKET, TAILLIGHT
$109.69¢54 844
1
#4
33709-KB7-003
GASKET, TAILLIGHT LENS
$5.11¢2 556
1
#5
33712-GC2-000
COLLAR A, TAILLIGHT
$3.69¢1 844
1
#6
33713-KJ2-000
COLLAR, TAILLIGHT
$6.79¢3 394
1
#7
33741-MS6-921
REFLECTOR, REFLEX (STANLEY)
$17.73¢8 863
1
#8
34906-425-771
BULB, TAILLIGHT (12V 32/3CP) (STANLEY)
$5.34¢2 669
1
#9
40521-437-000
COLLAR, CHAIN CASE TAIL
$6.13¢3 063
1
#10
61103-357-000
RUBBER, FR. FENDER MOUNTING
$3.98¢1 988
1
#11
84701-KV6-670
BRACKET, NUMBER PLATE
$88.45¢44 225
1
#12
84702-KN5-780
RUBBER, TAILLIGHT
$70.60¢35 300
1
#13
90104-KAF-000
SCREW, TAPPING (4X40)
$3.49¢1 744
1
#14
93500-05018-0G
SCREW, PAN (5X18)
$0.60¢300
1
#15
93500-05025-0G
SCREW, PAN (5X25)
$0.96¢481
1
#16
94021-05020-0S
NUT, CAP (5MM)
$0.88¢438
1
#17
94111-05000
WASHER, SPRING (5MM)
$1.45¢725
1
#18
94111-05700
WASHER, SPRING (5MM)
$1.45¢725
1
#19
96300-06025-00
BOLT, FLANGE (6X25)
$1.89¢944
1
