CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

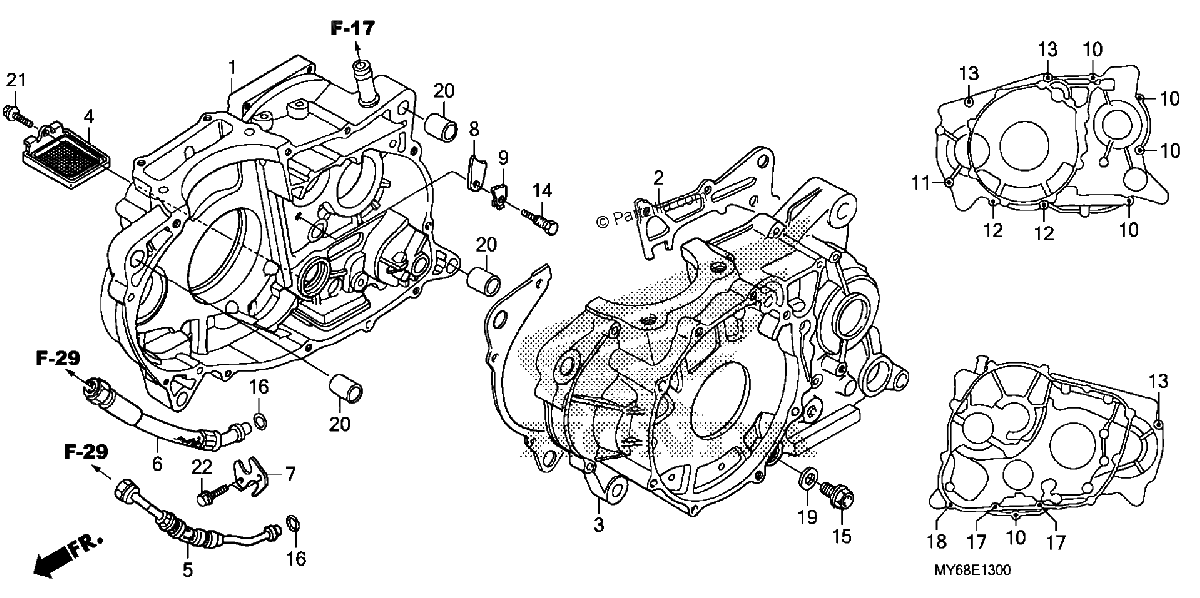

Diagrama de CRANKCASE

Repuestos

#1
11100-MY6-671
CRANKCASE, R.
$625.57¢312 787
1
#2
11191-MN1-701
GASKET, CRANKCASE
$27.94¢13 969
1
#3
11200-MY6-670
CRANKCASE, Left
$670.99¢335 494
1
#4
15421-MN1-671
SCREEN, OIL FILTER (KOYO)
$12.81¢6 406
1
#5
15610-MN1-702
HOSE A, OIL
$154.91¢77 456
1
#6
15620-MN1-670
HOSE B, OIL
$153.05¢76 525
1
#7
15630-MG3-010
PLATE
$14.75¢7 375
1
#8
23521-MAN-690
PLATE, BEARING SETTING
$8.34¢4 169
1
#9
23523-MG2-790
WASHER, LOCK (8MM)
$4.13¢2 063
1
#10
90004-GHB-690
BOLT, FLANGE (6X32) (NSHF)
$4.68¢2 338
1
#11
90004-GHB-710
BOLT, FLANGE (6X40) (NSHF)
$4.94¢2 469
1
#12
90004-GHB-720
BOLT, FLANGE (6X45) (NSHF)
$5.11¢2 556
1
#13
90004-GHB-730
BOLT, FLANGE (6X50) (NSHF)
$5.15¢2 575
1
#14
90088-MG3-000
BOLT, SPECIAL (8MM)
$8.11¢4 056
1
#15
90131-883-000
BOLT, DRAIN PLUG (12X15)
$4.89¢2 444
1
#15
90131-896-650
BOLT, DRAIN PLUG (12X15)
$4.89¢2 444
1
#16
91302-MG2-792
GASKET, RUBBER (10.5MM)
$4.91¢2 456
1
#17
92900-06022-0E
BOLT, STUD (6X22)
$1.86¢931
1
#18
92900-06035-0E
BOLT, STUD (6X35)
$2.09¢1 044
1
#19
94109-12000
WASHER, DRAIN PLUG (12MM)
$1.57¢788
1
#20
94301-14200
PIN, DOWEL (14X20)
$2.94¢1 469
1
#21
95701-06014-00
BOLT, FLANGE (6X14)
$1.23¢613
1
#22
96001-06016-07
BOLT, FLANGE (6X16)
$1.35¢675
1
