HEADLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

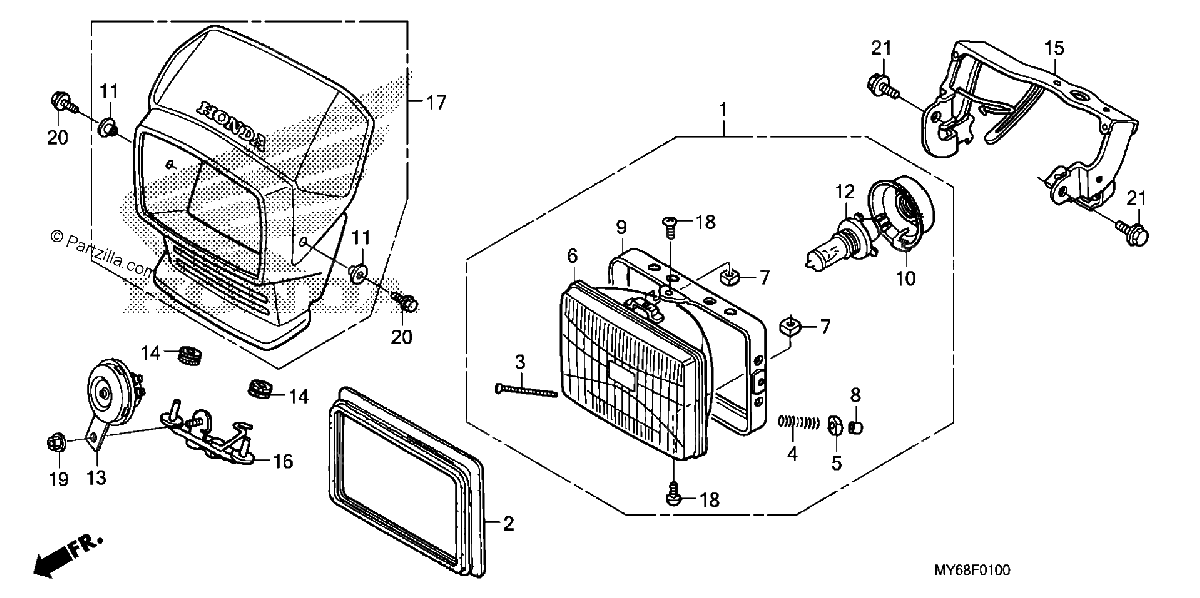

Diagrama de HEADLIGHT

Repuestos

#1
33100-MGW-305
HEADLIGHT Assembly. (12V 60/55W) (COO)
$228.38¢114 188
1
#2
33102-MG2-000
GASKET, HEADLIGHT
$34.05¢17 025
1
#3
33103-MG2-671
SCREW, BEAM ADJUSTING
$6.72¢3 363
1
#4
33107-MG2-671
SPRING, HEADLIGHT BEAM ADJUSTING
$3.65¢1 825
1
#5
33117-415-003
NUT, BEAM ADJUSTING (STANLEY)
$2.88¢1 438
1
#6
33120-MGW-305
HEADLIGHT UNIT (COO)
$81.59¢40 794
1
#7
33128-471-003
NUT, UNIT HOLDER
$1.99¢994
1
#8
33136-426-830
COVER, SCREW
$2.41¢1 206
1
#9
33153-KV6-671
RING, MOUNTING
$51.56¢25 781
1
#10
33180-471-902
COVER, RUBBER
$15.38¢7 688
1
#11
33712-GC2-000
COLLAR A, TAILLIGHT
$3.69¢1 844
1
#12
34901-MC7-602
BULB, HEADLIGHT (12V 60/55W) (STANLEY)
$43.17¢21 588
1
#13
38110-KL3-673
HORN Assembly. (HIGH)
$44.91¢22 456
1
#14
53133-KB4-000
GROMMET, IGNITION COVER
$2.91¢1 456
1
#15
61314-MY6-670
BRACKET, HEADLIGHT
$197.64¢98 819
1
#16
61318-MY6-670
STAY, Front VISOR (LOWER)
$33.27¢16 638
1
#17
87125-MY6-A90ZA
VISOR SET, FR. *NH196* (WL) (ROSS WHITE)
$109.43¢54 713
1
#18
93500-05010-0G
SCREW, PAN (5X10)
$1.16¢581
1
#19
94050-08070
NUT, FLANGE (8MM)
$1.93¢963
1
#20
96300-06014-00
BOLT, FLANGE (6X14)
$1.21¢606
1
#21
96300-08012-00
BOLT, FLANGE (8X12)
$3.65¢1 825
1
