UPPER COWL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

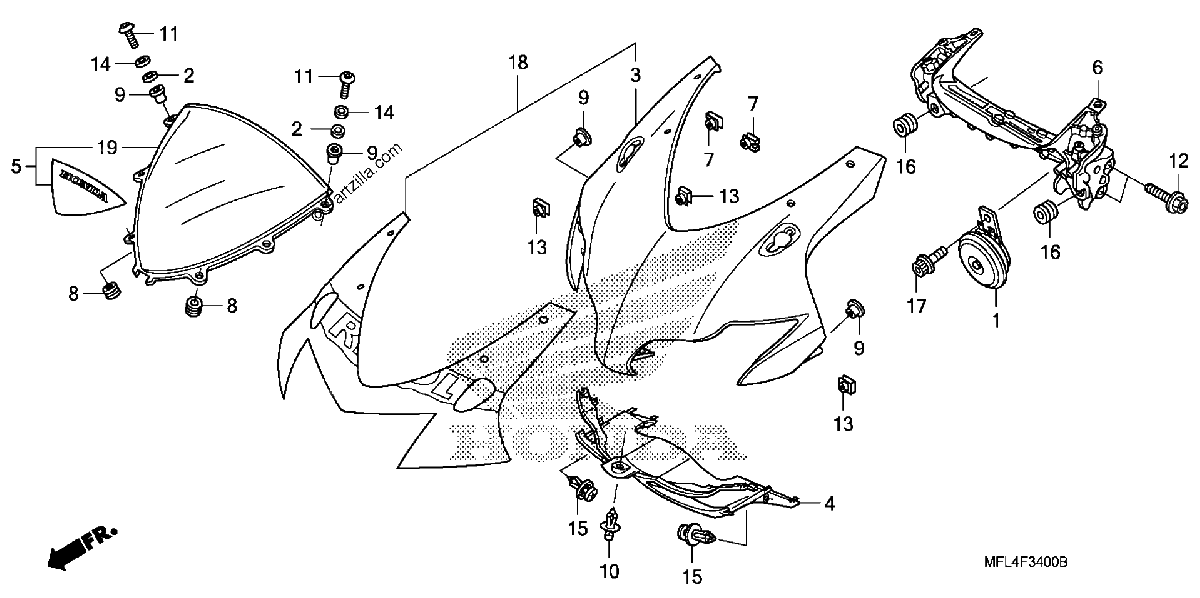

Diagrama de UPPER COWL

Repuestos

#1
38110-MFL-000
HORN (HIGH)
$77.47¢38 738
1
#1
38110-MFL-003
HORN (HIGH)
$77.47¢38 738
1
#2
64205-166-610
WASHER, SCREEN SETTING
$2.85¢1 425
1
#4
64220-MFL-000
COVER, AIR IN.
$25.65¢12 825
1
#6
64501-MFL-020
STAY A, COWL (UPPER)
$228.79¢114 394
1
#6
64501-MFL-010
STAY A, COWL (UPPER)
$228.79¢114 394
1
#6
64501-MFL-000
STAY A, COWL (UPPER)
$228.79¢114 394
1
#7
64521-MN5-000
NUT, CLIP (4MM)
$3.65¢1 825
1
#8
64535-MCJ-000
RUBBER, COWL (LOWER)
$3.36¢1 681
1
#9
90111-KW3-003
NUT, COWL SETTING (5MM)
$5.47¢2 738
1
#10
90116-MCS-G00
RIVET, PUSH
$1.79¢894
1
#11
90119-MFL-D20
BOLT, SPECIAL (5X16)
$2.97¢1 487
1
#12
90120-MEE-000
BOLT, FLANGE (8X28)
$2.99¢1 494
1
#13
90312-MT3-000
NUT, CLIP (5MM)
$5.55¢2 775
1
#14
90504-964-000
WASHER, THRUST (5MM)
$2.44¢1 219
1
#15
90683-GR1-003
CLIP, BODY COVER
$3.65¢1 825
1
#16
90852-898-000
RUBBER, CONTROL BOX
$4.89¢2 444
1
#17
92101-08014-0G
BOLT, HEX. (8X14)
$0.86¢431
1
#18
64100-MFL-D20ZC
COWL SET (UPPER) (TYPE5) (WL) (NOT AVAILABLE)
No Disponible
1
#18
64100-MFL-D20ZA
COWL SET (UPPER) (TYPE2) (WL)
$706.45¢353 225
1
#19
64200-MFL-670
WINDSCREEN
$215.96¢107 981
1
#19
64200-MFL-305
WINDSCREEN (COO)
$215.96¢107 981
1
