FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

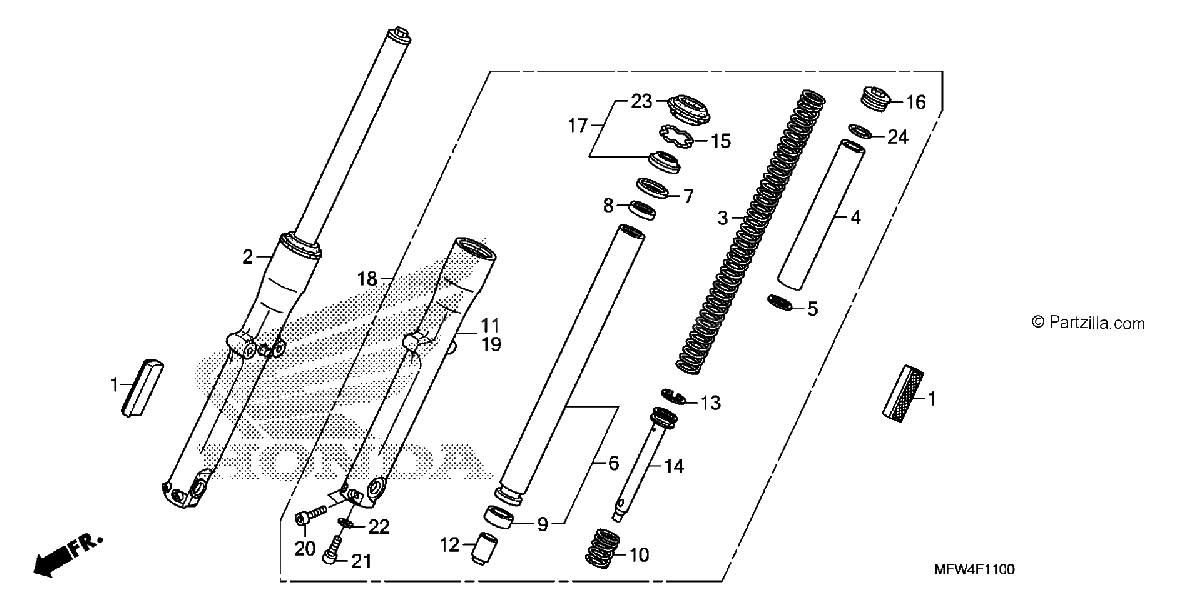

Diagrama de FRONT FORK

Repuestos

#1
33740-MEA-671
REFLECTOR, FR. REFLEX
$32.25¢16 123
1
#2
51400-MFW-305
FORK ASSY., R. FR. (COO)
No Disponible
1
#3
51401-MFW-A01
SPRING, Front FORK
No Disponible
1
#4
51402-KV3-701
COLLAR, SPRING (SHOWA)
$25.63¢12 817
1
#5
51404-MB4-003
PLATE, SPRING JOINT
$5.51¢2 754
1
#6
51410-MFW-A01
PIPE, Front FORK
$470.03¢235 014
1
#7
51412-MB4-003
RING, BACK-UP (SHOWA)
$10.38¢5 192
1
#8
51414-MFJ-A51
BUSH, GUIDE
$8.10¢4 048
1
#9
51415-MFJ-A51
BUSH, SLIDER
$8.10¢4 048
1
#10
51416-MM8-881
SPRING, FR. REBOUND (SHOWA)
$6.57¢3 283
1
#11
51420-MFW-A01
CASE, R. (LOWER)
No Disponible
1
#12
51432-MV9-003
PIECE, OIL LOCK (SHOWA)
$26.52¢13 259
1
#13
51437-MB4-003
RING, PISTON
$10.30¢5 152
1
#14
51440-MFY-A01
PIPE, SEAT
$51.58¢25 789
1
#15
51447-KA4-711
RING, OIL SEAL STOPPER (SHOWA)
$5.04¢2 519
1
#16
51454-MM9-671
BOLT, FR. FORK
$40.97¢20 487
1
#17
51490-MER-R61
SEAL SET, Front FORK
$24.32¢12 161
1
#18
51500-MFW-305
FORK Assembly., L Front. (COO)
$964.77¢482 385
1
#19
51520-MFW-A01
CASE, Left (LOWER)
$474.80¢237 400
1
#20
90109-MCR-D00
BOLT, SOCKET (8X35)
$3.36¢1 679
1
#21
90116-KV3-701
BOLT, SOCKET (8MM) (SHOWA)
$4.34¢2 168
1
#22
90544-283-000
WASHER, SPECIAL (8MM) (SHOWA)
$3.36¢1 679
1
#23
91254-MEE-D01
DUST SEAL (SHOWA)
$9.20¢4 600
1
#24
91356-KF0-003
O-RING (33.2X2.4)
$4.20¢2 099
1
