FUEL TANK FUEL PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

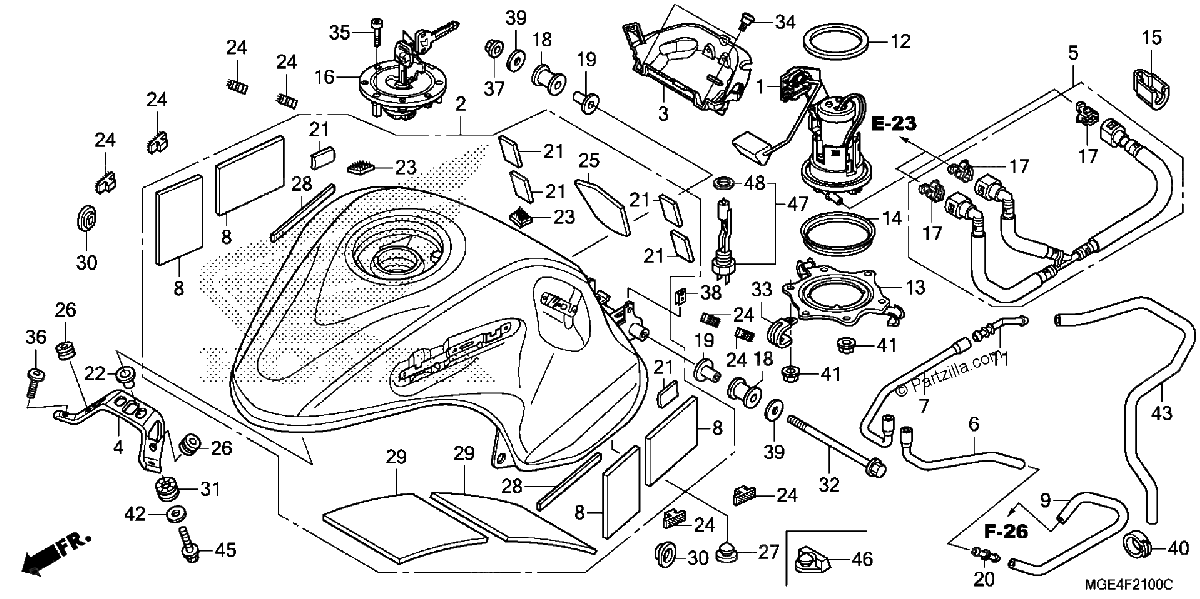

Diagrama de FUEL TANK FUEL PUMP

Repuestos

#1
16700-MGE-003
PUMP Assembly., FUEL (MSDS)
$904.46¢452 231
1
#1
16700-MGE-013
PUMP Assembly., FUEL (MSDS)
$904.46¢452 231
1
#2
17500-MGE-000ZA
TANK SET, FUEL NHB01 NHRAPHITE BLACK)
$1602.63¢801 313
1
#2
17500-MGE-010ZA
TANK SET, FUEL NHB01 NHRAPHITE BLACK)
$1602.63¢801 313
1
#2
17500-MGE-020ZA
TANK SET, FUEL NHB01 NHRAPHITE BLACK)
$1602.63¢801 313
1
#3
17515-MGE-000
PROTECTOR, TANK HEAT
$36.92¢18 463
1
#4
17523-MGE-000
STAY, Front FUEL TANK
$18.61¢9 306
1
#5
17526-MGE-003
HOSE, FUEL FEED
$227.25¢113 625
1
#6
17544-MGE-770
TUBE, TANK BREATHER
$26.02¢13 013
1
#7
17545-MGE-000
TUBE, TANK DRAIN
$11.35¢5 675
1
#8
17554-MEL-300
CUSHION, FUEL TANK
$10.82¢5 413
1
#9
17556-MGE-770
TUBE, TANK-CANISTER
$16.83¢8 413
1
#11
17561-MFL-000
JOINT (TWO-WAY)
$4.35¢2 175
1
#12
17574-MFJ-D00
GASKET, FUEL PUMP
$29.70¢14 850
1
#13
17575-MGE-000
PLATE, FUEL PUMP SETTING
$18.20¢9 100
1
#14
17576-MFJ-D00
SEAL (OUTER)
$7.14¢3 569
1
#15
17580-MFJ-D00
COVER, FUEL CONNECTOR
$6.64¢3 319
1
#16
17620-MGE-003
CAP, FUEL FILLER
$455.35¢227 675
1
#16
17620-MGE-013
CAP, FUEL FILLER
$455.35¢227 675
1
#17
17711-MGE-003
RETAINER
$7.69¢3 844
1
#18
18421-MB0-000
RUBBER, MUFFLER MOUNTING
$7.69¢3 844
1
#19
18422-MAL-600
COLLAR, MUFFLER MOUNTING
$7.18¢3 588
1
#20
38562-663-920
JOINT B, WASHER TUBE (MITSUBA)
$11.56¢5 781
1
#21
50383-GB6-300
RUBBER, BATTERY
$3.76¢1 881
1
#22
61104-422-000
COLLAR, SETTING
$8.39¢4 194
1
#23
64243-MEW-920
FASTENER B, DUAL LOCK (20X20)
$3.65¢1 825
1
#24
64472-MGE-000
FASTENER A, DUAL LOCK (9X24)
$4.69¢2 344
1
#25
64490-MGE-000
COVER, FUEL TANK CENTER
$40.29¢20 144
1
#26
53133-KR1-760
GROMMET, IGNITION COVER
$5.41¢2 706
1
#27
77212-965-000
RUBBER, SEAT SIDE
$5.99¢2 994
1
#28
81354-MAT-300
SEAL, FUEL TANK
$2.70¢1 350
1
#29
83430-MGE-000
URETHANE, FUEL TANK (LOWER)
$12.99¢6 494
1
#30
83551-300-000
GROMMET, AIR CLEANER HOUSING
$4.45¢2 225
1
#31
84703-425-000
RUBBER, TAILLIGHT MOUNTING
$5.72¢2 863
1
#32
90102-ZB5-000
BOLT, FLANGE (8X190)
$16.14¢8 069
1
#33
90105-727-000
CLIP (2X50)
$3.89¢1 944
1
#34
90114-MGE-000
SCREW, SPECIAL (5X11)
$3.34¢1 669
1
#35
90120-MGE-000
BOLT, SOCKET (4X21)
$3.15¢1 575
1
#36
90155-MGE-000
BOLT, SPECIAL (6X18)
$4.22¢2 113
1
#37
90309-428-731
NUT, FLANGE (M8X1.25) (SELF-LOCK)
$4.06¢2 031
1
#38
90320-GE2-760
NUT, SPRING (5MM)
$2.54¢1 269
1
#39
90524-030-000
WASHER A, HANDLE HOLDER SETTING
$1.79¢894
1
#40
90683-KJ2-003
CLIP, WIRE HARNESS
$4.33¢2 163
1
#41
94050-06000
NUT, FLANGE (6MM)
$0.80¢400
1
#42
94103-06000
WASHER, PLAIN (6MM)
$1.27¢638
1
#43
95005-75003-10M
BULK HOSE, VACUUM (7.3X3000) (7.3X950)
$114.86¢57 431
1
#45
96001-06025-00
BOLT, FLANGE (6X25)
$2.70¢1 350
1
