REDUCTION GEAR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

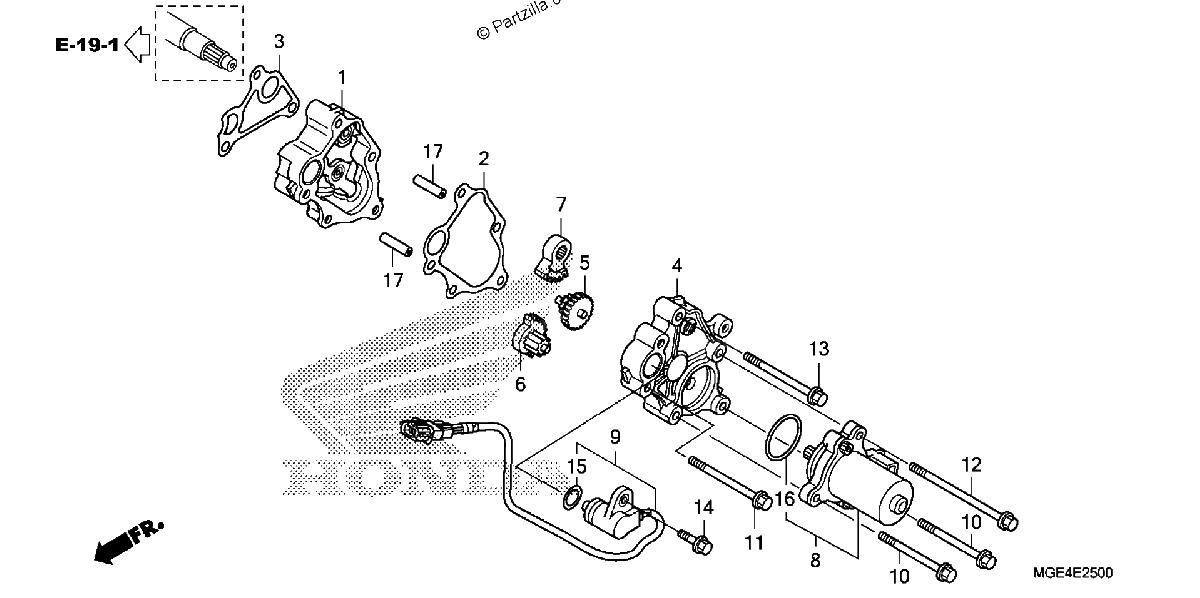

Diagrama de REDUCTION GEAR

Repuestos

#1
11510-MGE-D00
BASE, REDUCTION GEAR
$99.01¢49 507
1
#2
11513-MGE-D00
GASKET, REDUCTION GEAR COVER
$6.07¢3 036
1
#2
11513-MGE-D01
GASKET, REDUCTION GEAR COVER
$6.60¢3 301
1
#3
11514-MGE-D00
GASKET, REDUCTION GEAR BASE
$4.37¢2 185
1
#3
11514-MGE-D01
GASKET, REDUCTION GEAR BASE
$4.92¢2 461
1
#4
11520-MGE-D00
COVER, REDUCTION GEAR
$112.00¢55 999
1
#5
24615-MGE-D01
GEAR, SHIFT REDUCTION (45T/7T)
$79.84¢39 922
1
#6
24616-MGE-D01
GEAR, SHIFT REDUCTION (32T/13T)
$99.87¢49 933
1
#7
24617-MGE-D01
GEAR, SHIFT REDUCTION (42T)
$64.78¢32 390
1
#8
31300-KVZ-631
MOTOR ASSY., RATIO CONTROL
$341.42¢170 712
1
#9
38800-MGE-D01
SENSOR ASSY., ANGLE (350DEGREE)
$244.60¢122 302
1
#10
90007-MGE-D00
BOLT, FLANGE (6X55)
$3.16¢1 581
1
#11
90008-MGE-D00
BOLT, FLANGE (6X65)
$3.48¢1 742
1
#12
90009-MGE-D00
BOLT, FLANGE (6X85)
$3.66¢1 829
1
#13
90010-MGE-D00
BOLT, FLANGE (6X60)
$3.16¢1 581
1
#14
90011-MGE-D00
BOLT, KNOCK (6MM)
$3.42¢1 708
1
#15
91310-MGE-D01
O-RING (16.5X2.5)
$5.69¢2 846
1
#16
91351-HM8-A51
O-RING, CONTROL MOTOR
$4.25¢2 128
1
#17
91704-PF4-000
PIN, DOWEL (8X40)
$7.82¢3 910
1
